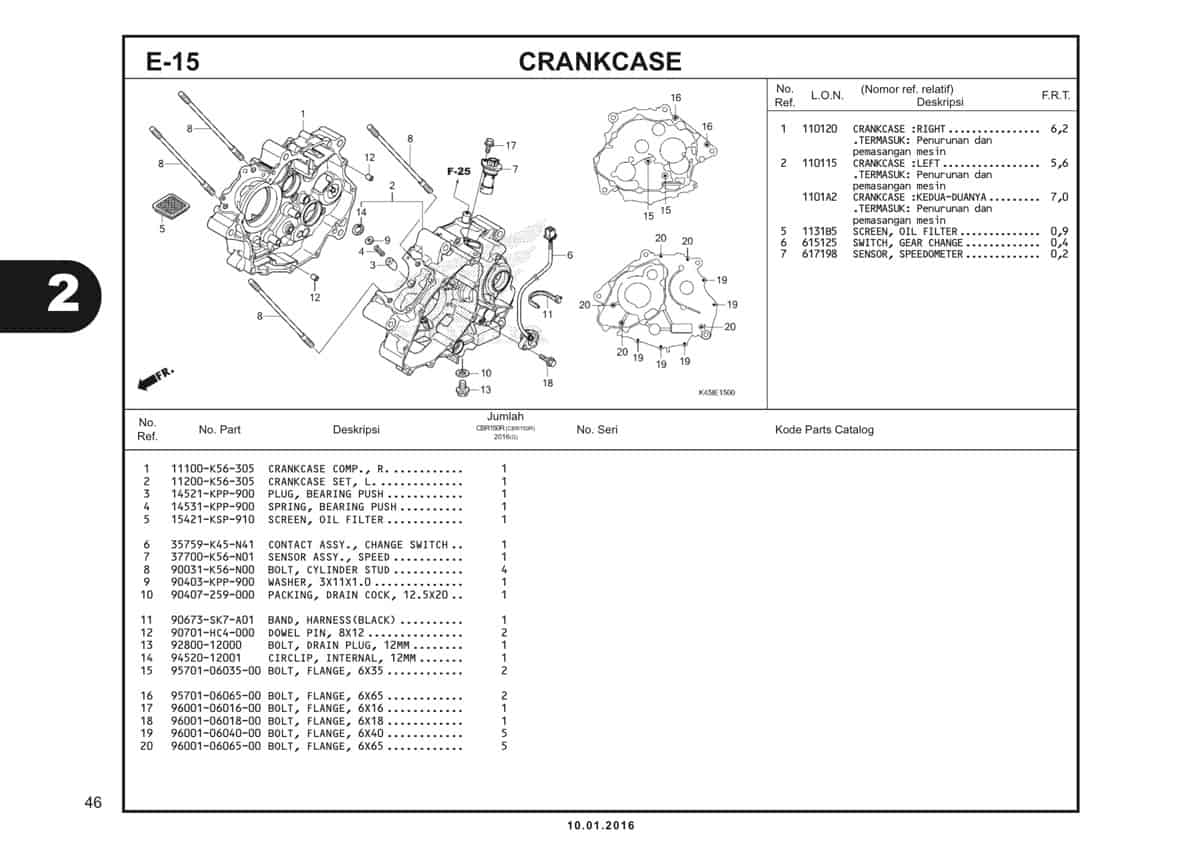

E15 – Crankcase – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Crankcase Comp R. Part Number : `11100K56305`
2	Crankcase Set L. Part Number : `11200K56305`
3	Plug Bearing Push Part Number : `14521KPP900`
4	Spring Bearing Push Part Number : `14531KPP900`
5	Screen Oil Filter Part Number : `15421KSP910`
6	Contact Assy Change Switch Part Number : `35759K45N41`
7	Sensor Assy Speed Part Number : `37700K56N01`
8	Bolt Cylinder Stud Part Number : `90031K56N00`
9	Washer 3X11X1.0 Part Number : `90403KPP900`
10	Packing Cock Part Number : `90407259000`
11	Band Harness (Black) Part Number : `90673SK7A01`
12	Dowel Pin 8x12 Part Number : `90701HC4000`
13	Draincock Part Number : `9280012000`
14	Circlip Internal 12MM Part Number : `9452012001`
15	Bolt Flange 6X35 Part Number : `957010603500`
16	Bolt Flange 6X65 Part Number : `957010606500`
17	Bolt Flange SH 6X16 Part Number : `960010601600`
18	Bolt Flange SH 6X18 Part Number : `960010601800`
19	Bolt Flange 6X40 Part Number : `960010604000`
20	Bolt Flange 6x65 Part Number : `960010606500`
