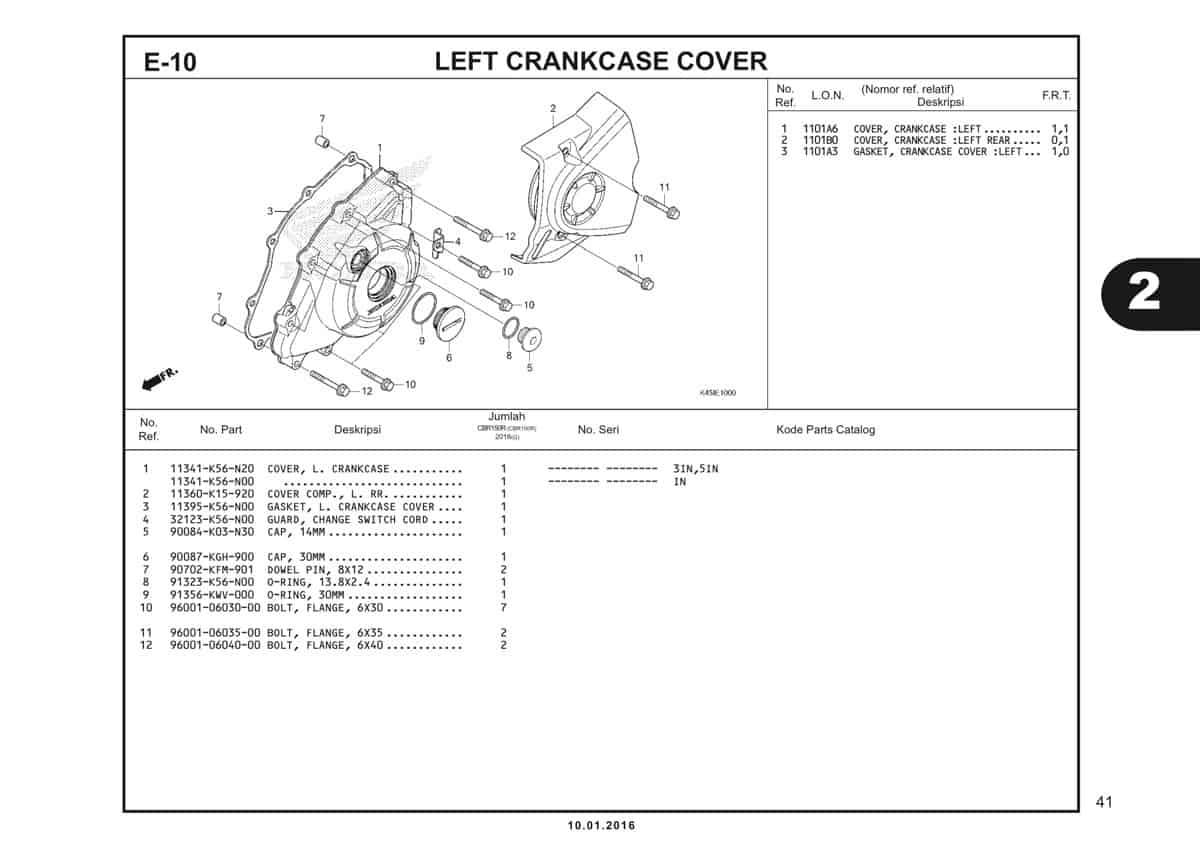

E10 – Left Crankcase Cover – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Cover L Crankcase Part Number : `11341K56N20`
1	Cover L Crankcase Part Number : `11341K56N00`
2	Cover Comp L Rear Part Number : `11360K15920`
3	Gasket L Crankcase Cover Part Number : `11395K56N00`
3	Gasket L Crankcase Cover Part Number : `11395K56V50`
4	Guard Change Switch Cord Part Number : `32123K56N00`
5	Cap 14mm Part Number : `90084K03N30`
6	Cap 30mm Part Number : `90087KGH900`
7	Pin Dowel 8X12 Part Number : `90702KFM900`
8	O-Ring, 13.8X2.4 Part Number : `91323K56N00`
9	O Ring 30mm Part Number : `91356KWV000`
10	Bolt Flange 6X30 Part Number : `960010603000`
11	Bolt Flange 6X35 Part Number : `960010603500`
12	Bolt Flange 6X40 Part Number : `960010604000`
