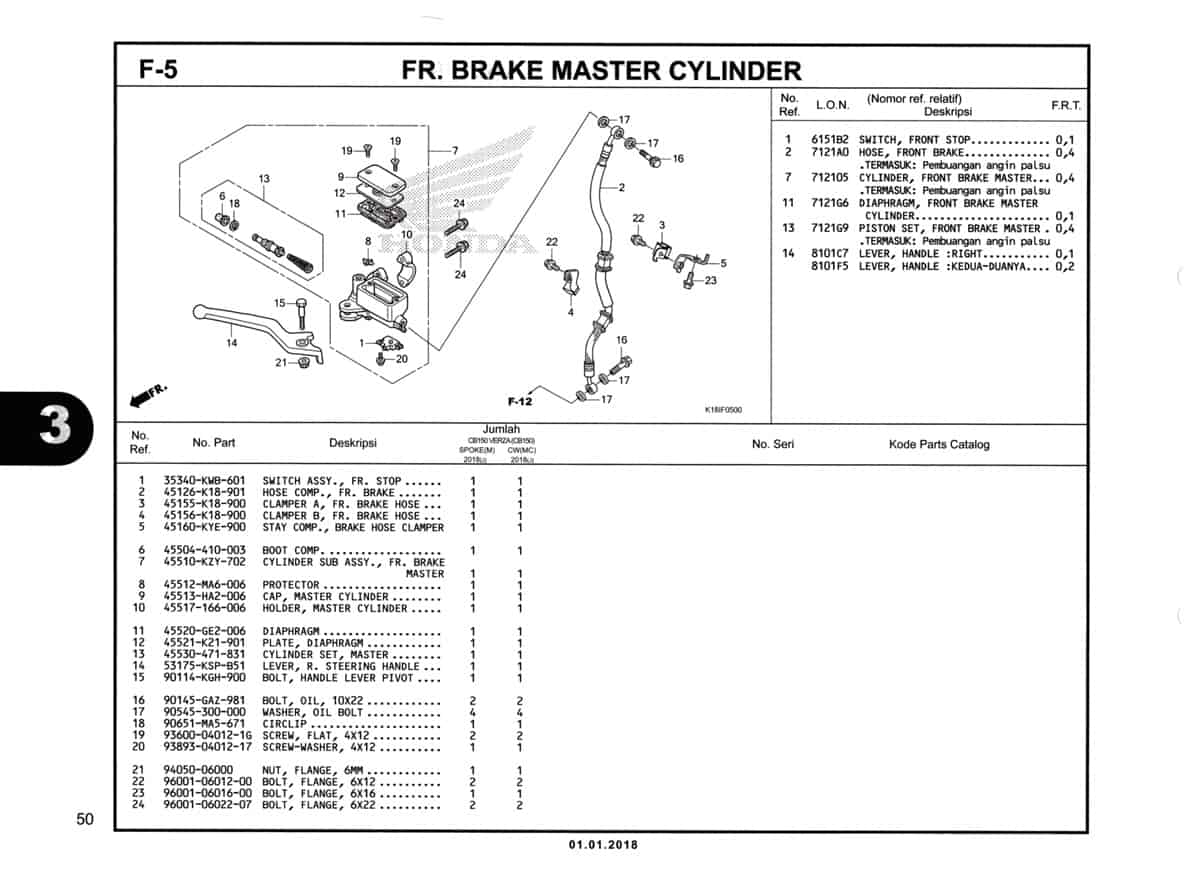

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Switch FR Stop Assy | 35340KWB601 |
|
| 2 | Hose Comp FR Brake | 45126K18901 |
|
| 3 | Clamper A FR Brake Hose | 45155K18900 |
|
| 4 | Clamper B FR Brake Hose | 45156K18900 |
|
| 5 | Stay Clamper Brake Hose | 45160KYE900 |
|
| 6 | Boot Comp | 45504410003 |
|
| 7 | Cylinder Sub Assy FR Brake | 45510KZY702 |
|
| 8 | Protector | 45512MA6006 |
|
| 9 | Cap Master Cylinder | 45513HA2006 |
|
| 10 | Holder Master Cylinder | 45517166006 |
|
| 11 | Diaphragm | 45520GE2006 |
|
| 12 | Plate Diaphragm | 45521K21901 |
|
| 13 | Cylinder Set Master | 45530471831 |
|
| 14 | Lever R Steering Handle | 53175KSPB51 |
|
| 15 | Bolt Handle Lever | 90114KGH900 |
|
| 16 | Bolt Oil 10X22 | 90145GAZ981 |
|
| 17 | Washer Oil Bolt | 90545300000 |
|
| 18 | Circlip | 90651MA5671 |
|
| 19 | Screw Flat 4X12 | 93600040121G |
|
| 20 | Screw Washer 4X12 | 938930401217 |
|
| 21 | Nut Flange 6MM | 9405006000 |
|
| 22 | Bolt Flange SH 6X12 | 960010601200 |
|
| 23 | Bolt Flange SH 6X16 | 960010601600 |
|
| 24 | Bolt Flange SH 6X16 | 960010602207 |
|
