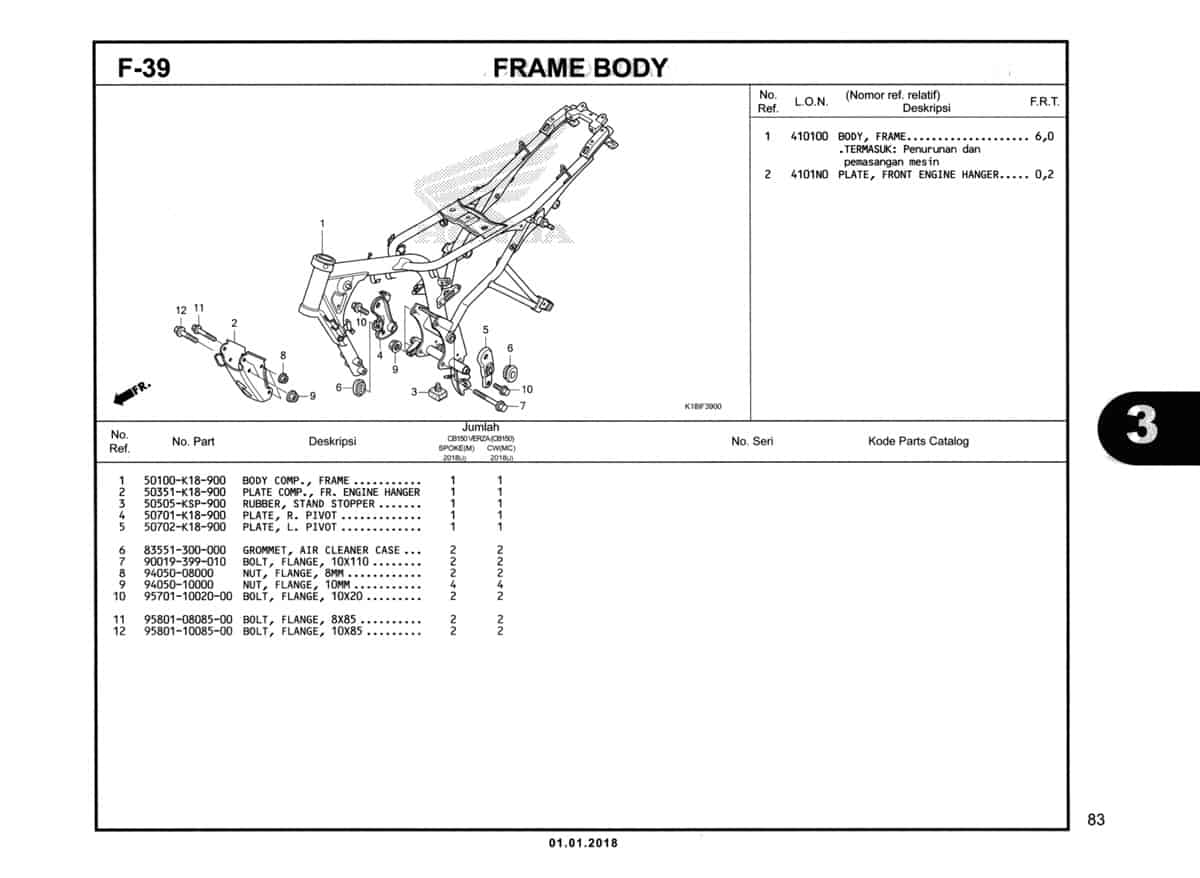

F39 – Frame Body – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Frame Body Comp Part Number : `50100K18900`
2	Plate Comp FR Engine Hanger Part Number : `50351K18900`
3	Rubber A Stand Stopper Part Number : `50505KSP900`
4	Plate R Pivot Part Number : `50701K18900`
5	Plate L Pivot Part Number : `50702K18900`
6	Case Grommet Part Number : `83551300000`
7	Bolt Flange 10X110 Part Number : `90019399010`
8	Nut Flange 8MM Part Number : `9405008000`
9	Nut Flange 10MM Part Number : `9405010000`
10	Bolt Flange 10X20 Part Number : `957011002000`
11	Bolt Flange 8X85 Part Number : `958010808500`
12	Bolt Flange 8X85 Part Number : `958011008500`
