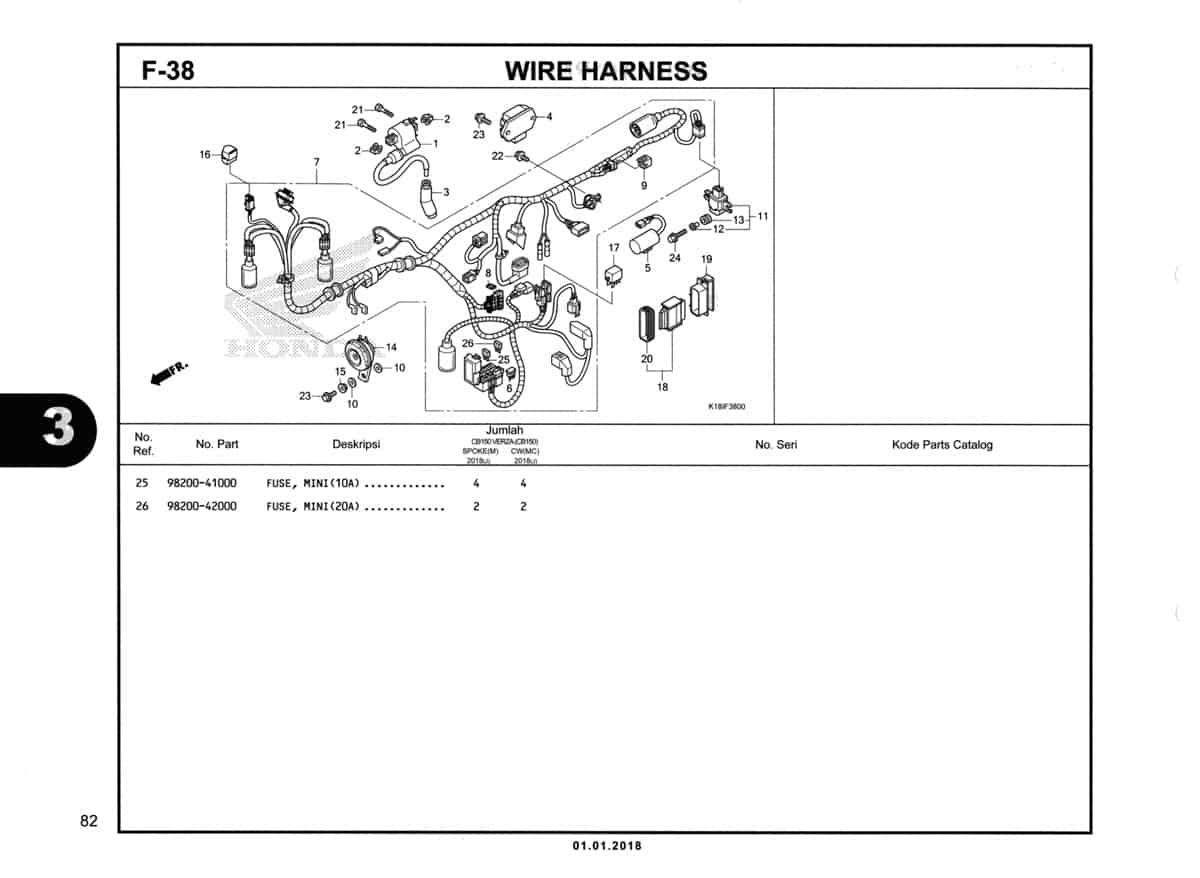

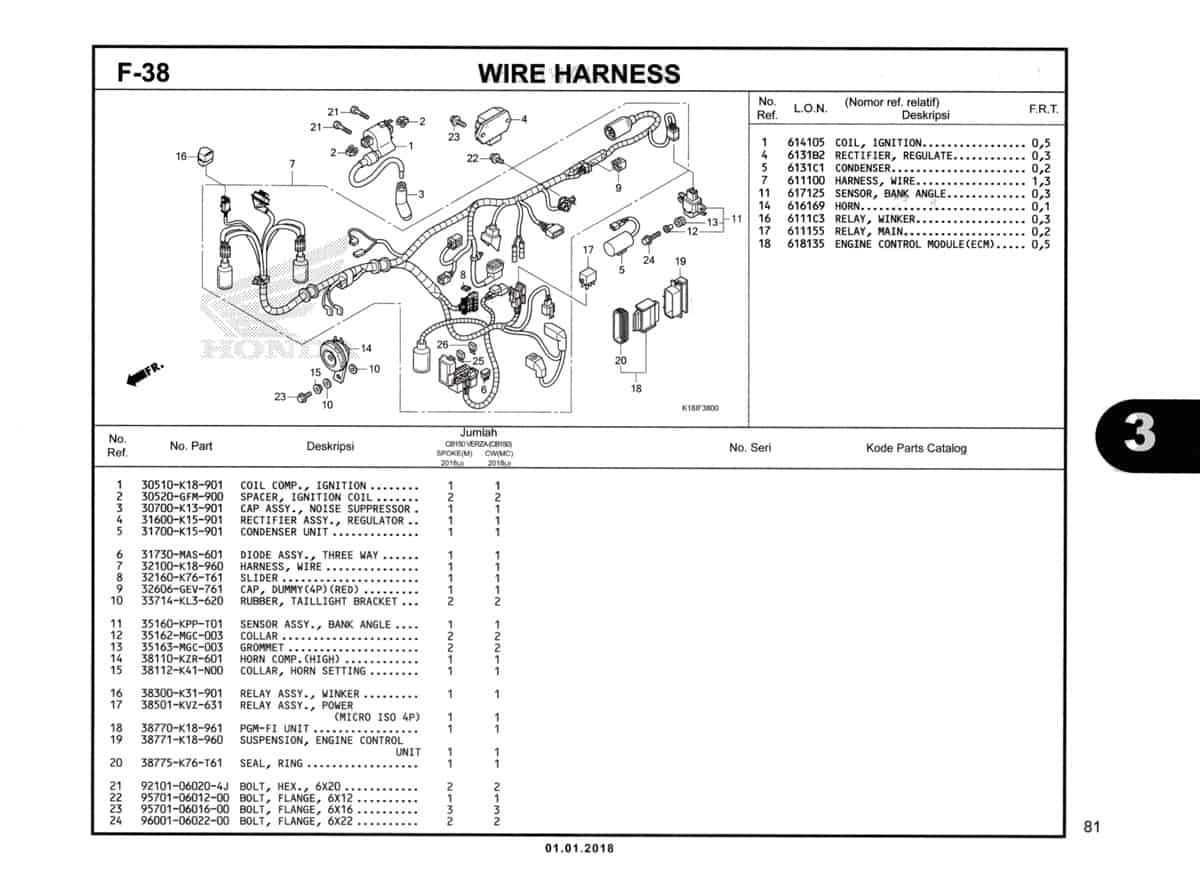

F38 – Wire Harness – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K18901`
2	Spacer Ignition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700K13901`
4	Rectifier Assy Regulator Part Number : `31600K15901`
5	Condenser Assy Part Number : `31700K15901`
6	Diode Assy 3Way Part Number : `31730MAS601`
7	Harness Wire Part Number : `32100K18960`
8	Slider Part Number : `32160K76T61`
9	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
10	Rubber Taillight Bracket Part Number : `33714KL3620`
11	Sensor Assy Bank Angle Part Number : `35160KPPT02`
12	Collar Part Number : `35162MGC003`
13	Grommet Part Number : `35163MGC003`
14	Horn Comp (HIGH) Part Number : `38110KZR601`
15	Collar Horn Setting Part Number : `38112K41N00`
16	Relay Assy Winker Part Number : `38300K31901`
17	Relay Comp Micro Iso Low Hight Part Number : `38501KVZ631`
18	Unit Comp PGM-FI/N Part Number : `38770K18961`
19	Suspension Engine Control Unit Part Number : `38771K18960`
20	Seal Ring Part Number : `38775K76T61`
21	Bolt Hex 6X20 Part Number : `92101060204J`
22	Bolt Flange 6X12 Part Number : `957010601200`
23	Bolt Flange 6X16 Part Number : `957010601600`
24	Bolt Flange 6X22 Part Number : `960010602200`
25	Fuse Mini (10A) Part Number : `9820041000`
26	Fuse Mini (20A) Part Number : `9820042000`
