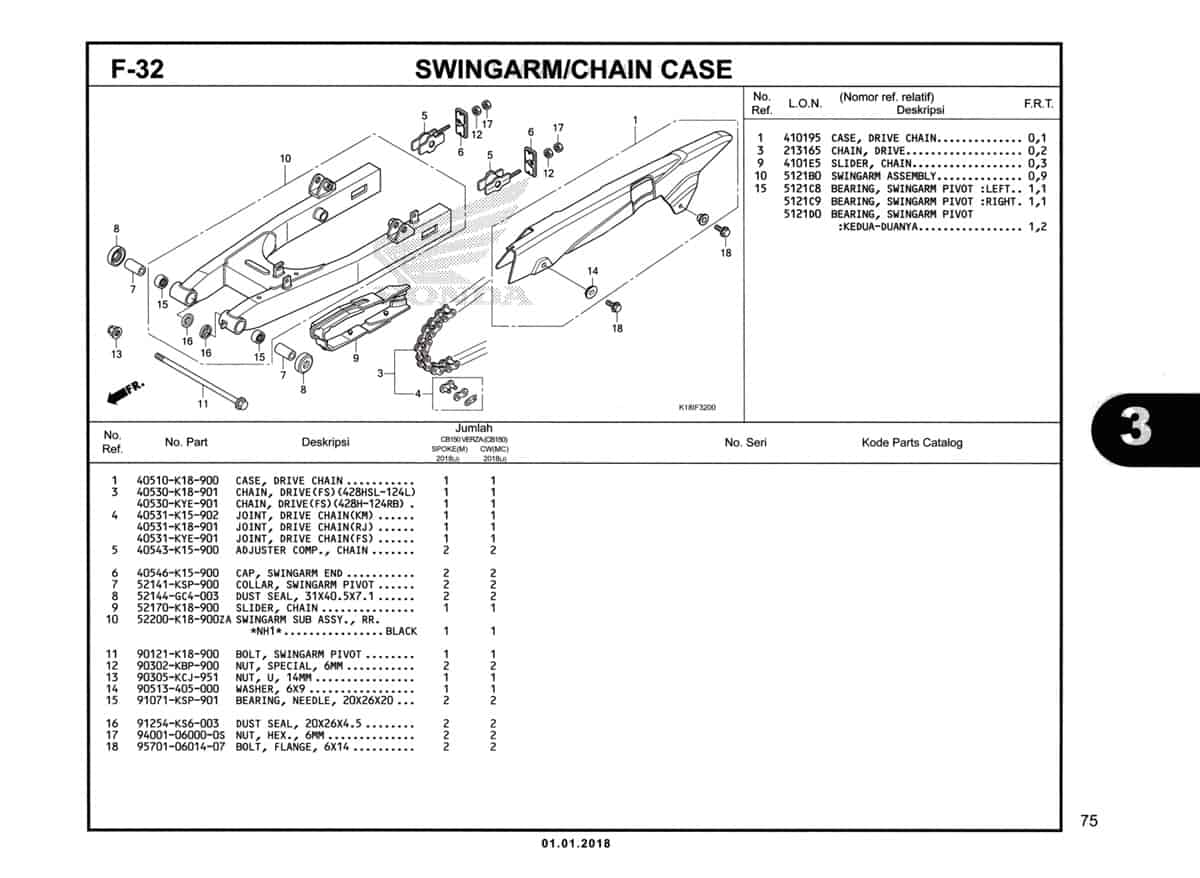

F32 – Swingarm/Chain Case – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Case Drive Chain Part Number : `40510K18900`
3	Chain Drive (FS) (428HSL-124L) Part Number : `40530K18901`
4	Joint Drive Chain (FSCM) Part Number : `40531K15902`
4	Joint Drive Chain (RJ) Part Number : `40531K18901`
4	Joint Drive Chain (FSCM) Part Number : `40531KYE901`
5	Adjuster Comp Chain Part Number : `40543K15900`
6	Cap Swingarm End Part Number : `40546K15900`
7	Collar Swingarm Pivot Part Number : `52141KSP900`
8	Dut Seal 31X40.5X7.1 Part Number : `52144GC4003`
9	Slider Chain Part Number : `52170K18900`
10	Swingarm Sub Assy Rear Part Number : `52200K18900ZA`
11	Bolt Swingarm Pivot Part Number : `90121K18900`
12	Nut Special 6MM Part Number : `90302KBP900`
13	Nut U 14 MM Part Number : `90305KCJ951`
14	Washer 6X9 Part Number : `90513405000`
15	Bearing Needle 20X26X20 Part Number : `91071KSP901`
16	Dust Seal 20x26x4.5 Part Number : `91254KS6003`
17	Nut Hex 6MM Part Number : `94001060000S`
18	Bolt Flange M6 X 14 Part Number : `957010601407`
