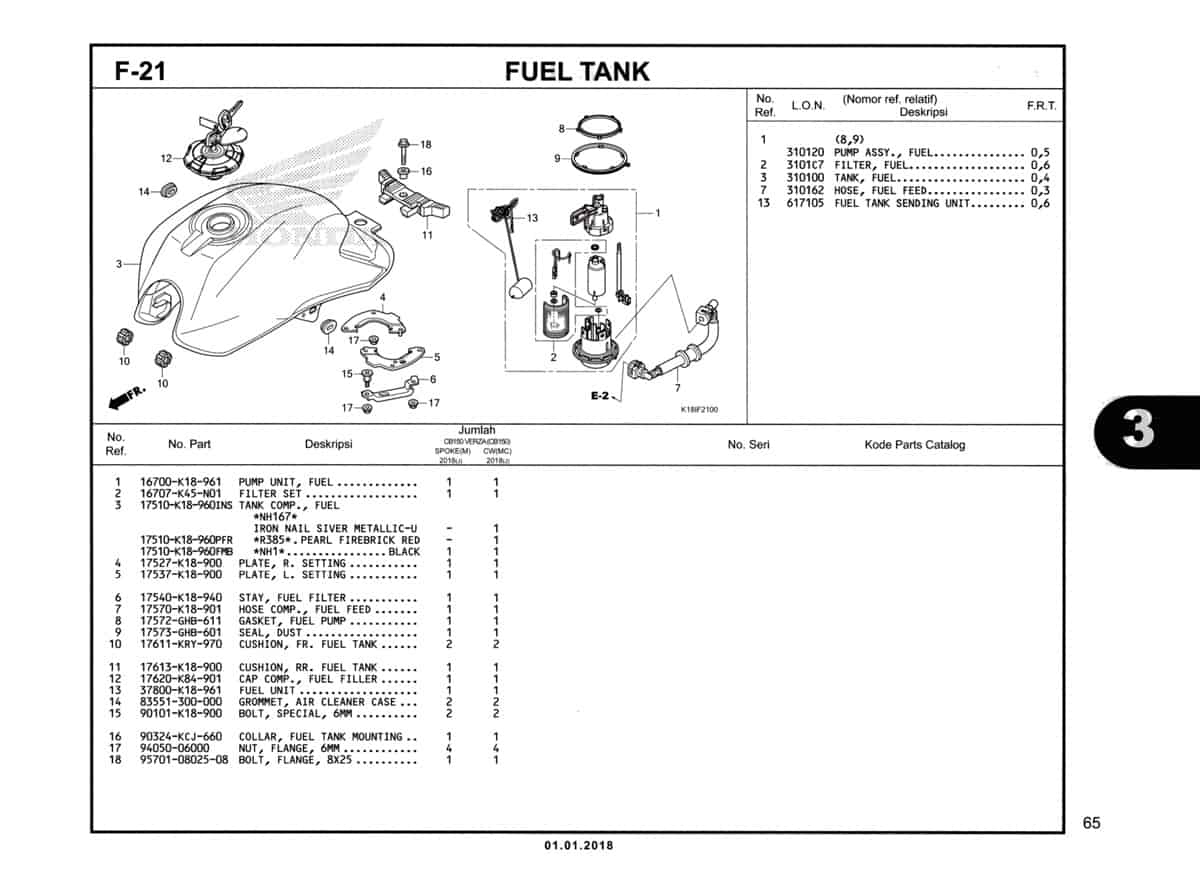

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Unit Assy Fuel Pump | 16700K18961 |
|
| 1 | Unit Assy Fuel Pump | 16700K18941 |
|
| 2 | Filter Set | 16707K45N01 |
|
| 3 | Tank Comp Fuel NH-167M-U | 17510K18960INS |
|
| 3 | Tank Comp Fuel R-385P | 17510K18960PFR |
|
| 3 | Tank Comp Fuel NH-1 | 17510K18960FMB |
|
| 4 | Plate R Setting | 17527K18900 |
|
| 5 | Plate L Setting | 17537K18900 |
|
| 6 | Stay Fuel Filter | 17540K18940 |
|
| 7 | Hose Comp Fuel Feed | 17570K18901 |
|
| 8 | Gasket Fuel Pump | 17572GHB611 |
|
| 8 | Gasket Fuel Pump | 17572KPNA71 |
|
| 9 | Seal Dust | 17573GHB601 |
|
| 10 | Cushion FR Fuel Tank | 17611KRY970 |
|
| 11 | Cushion RR Fuel Tank | 17613K18900 |
|
| 12 | Cap Comp Fuel Filler | 17620K84902 |
|
| 13 | Fuel Unit | 37800K18961 |
|
| 14 | Case Grommet | 83551300000 |
|
| 15 | Bolt Special (6MM) | 90101K18900 |
|
| 16 | Collar Fuel Tank Mount | 90324KCJ660 |
|
| 17 | Nut Flange 6MM | 9405006000 |
|
| 18 | Bolt Flange 8X25 | 957010802508 |
|
