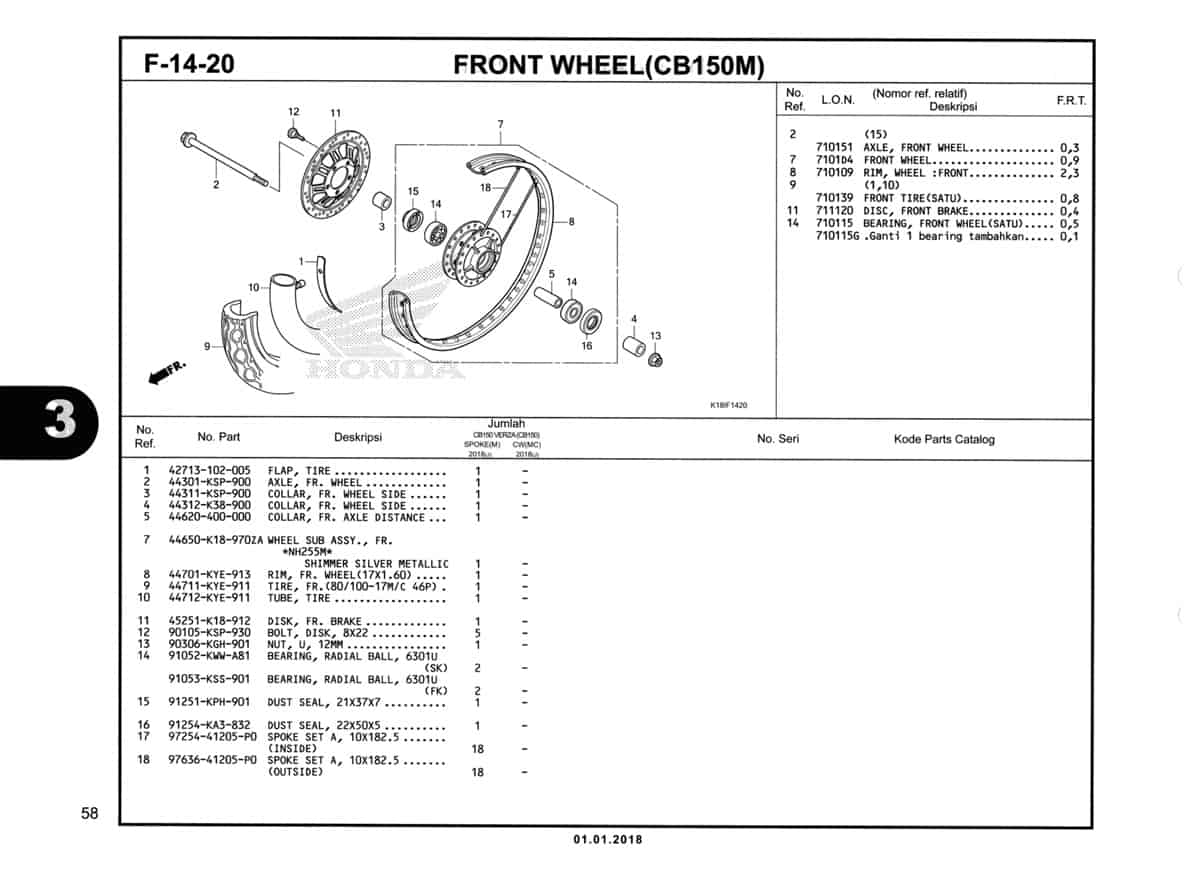

F14-20 – Front Wheel (CB150M) – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Flap Tire Part Number : `42713102005`
2	AXLE FR Wheel Part Number : `44301KSP900`
3	Collar FR Wheel Side Part Number : `44311KSP900`
4	Spoke Set A 10X182.5 Part Number : `44312K38900`
5	Collar FR Axle Distance Part Number : `44620400000`
7	Wheel Sub Assy FR Part Number : `44650K18970ZA`
8	Rim FR Wheel Part Number : `44701KYE913`
9	Tire FR (80/100-17 NF25) Part Number : `44711KYE911`
10	Tube Tire 3.00/3.25-17 Part Number : `44712KYE911`
11	Disk FR Brake Part Number : `45251K18912`
12	Bolt Disk 8x22 Part Number : `90105KSP930`
13	Nut U 12MM Part Number : `90306KGH901`
14	Bearing Radial Ball Ball 6301 U Part Number : `91053K03H01`
14	Bearing Radial Ball Ball 6301 U Part Number : `91053K03H02`
15	Dust Seal 21X37X7 Part Number : `91251KPH901`
16	Dust Seal 22X50X5 Part Number : `91254KA3832`
18	Spoke Set A 10X182.5 (Out) Part Number : `9763641206P0`
