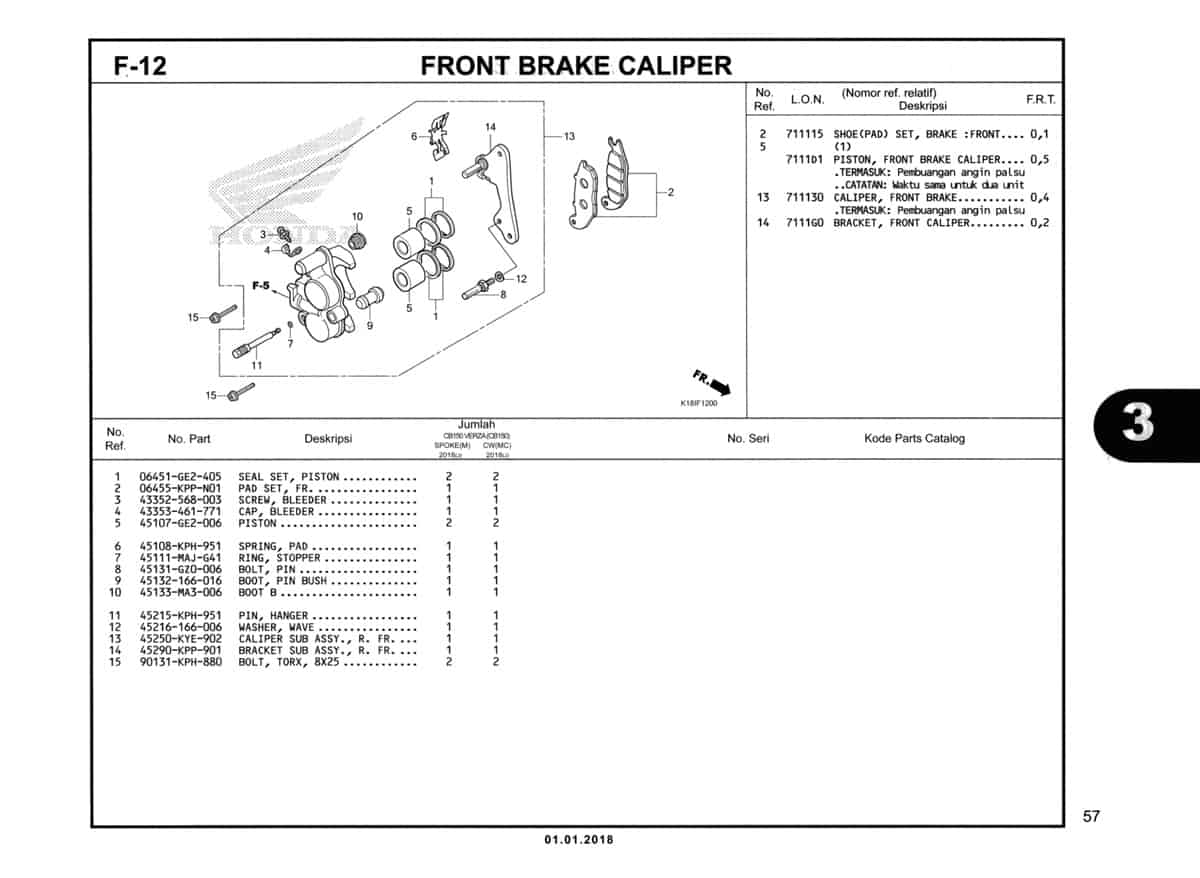

F12 – Front Brake Caliper – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Seal Set Piston Part Number : `06451GE2405`
2	Pad Set FR Part Number : `06455KYE901`
2	Pad Set FR Part Number : `06455KPPN02`
3	Screw Bleeder Part Number : `43352568003`
4	Cap Bleeder Part Number : `43353461771`
5	Piston Part Number : `45107GE2006`
6	Spring Pad Part Number : `45108KPH951`
7	O-Ring 2.5X1.5 Part Number : `45111MAJG41`
8	Pin Bolt Part Number : `45131GZ0006`
9	Bush Pin Part Number : `45132166016`
10	Boot B Pin Part Number : `45133MA3006`
11	Pin Hanger Part Number : `45215KPH951`
12	Washer Wave Part Number : `45216166006`
13	Caliper Sub Assy R FR Part Number : `45250KYE902`
13	Caliper Sub Assy R FR Part Number : `45250KYE901`
14	Bracket Sub Assy FR Part Number : `45290KPP901`
15	Bolt Torx 8X25 Part Number : `90131KPH880`
