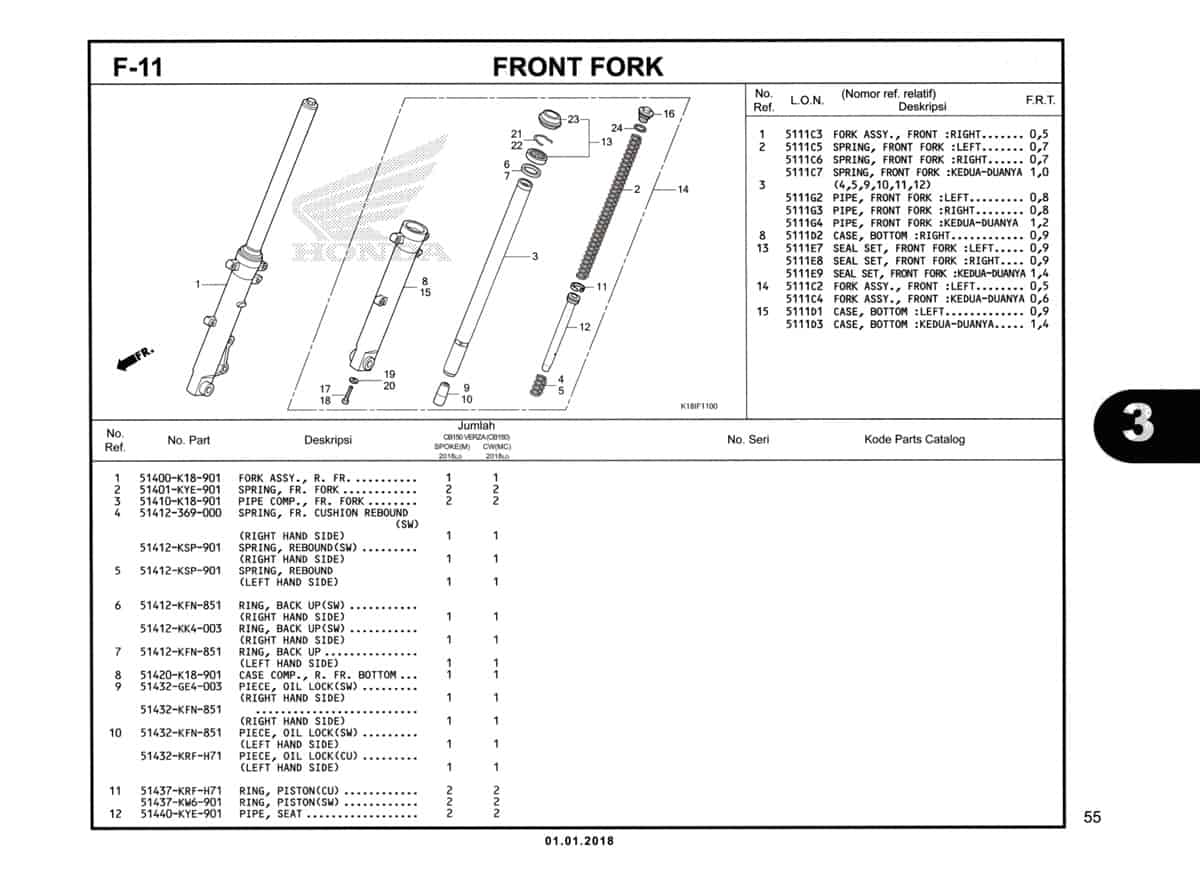

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Fork Assy R FR | 51400K18901 |
|
| 2 | Spring FR Fork | 51401KYE901 |
|
| 3 | Pipe Comp FR Fork | 51410K18901 |
|
| 4 | Spring FR Cushion Rebound | 51412369000 |
|
| 4 | Spring Rebound | 51412KSP901 |
|
| 5 | Spring Rebound | 51412KSP901 |
|
| 6 | Ring Back Up | 51412KFN851 |
|
| 6 | Ring Back Up | 51412KK4003 |
|
| 7 | Ring Back Up | 51412KFN851 |
|
| 8 | Case Comp R FR Bottom | 51420K18901 |
|
| 9 | Piece Oil Lock | 51432GE4003 |
|
| 9 | Piece Oil Lock | 51432KFN851 |
|
| 10 | Piece Oil Lock | 51432KFN851 |
|
| 10 | Piece Oil Lock | 51432KRFH71 |
|
| 11 | Ring Piston | 51437KRFH71 |
|
| 11 | Ring Piston | 51437KW6901 |
|
| 12 | Pipe Seat | 51440KYE901 |
|
| 13 | Seal Seat FR Fork | 51490KRM852 |
|
| 14 | Fork Assy L Front | 51500K18961 |
|
| 14 | Fork Assy L Front | 51500K18307 |
|
| 15 | Case Comp L FR Bottom | 51520K18961 |
|
| 16 | Bolt A FR Fork | 90102K18901 |
|
| 17 | Bolt Socket 8MM | 90116383721 |
|
| 17 | Bolt Socket 8MM | 90116KAG901 |
|
| 18 | Bolt Socket 8MM | 90116KAG901 |
|
| 19 | Washer Special (8MM) | 90544283000 |
|
| 19 | Washer Special 8MM | 90544KFN851 |
|
| 20 | Washer Special 8MM | 90544KFN851 |
|
| 21 | Ring Oil Seal Stopper | 90601354000 |
|
| 21 | Ring Oil Seal Stopper | 90601KFN851 |
|
| 22 | Ring Oil Seal Stopper | 90601KFN851 |
|
| 23 | Dust Seal FR Fork | 91254GAA003 |
|
| 24 | O-Ring 23X2.8 | 9460850000 |
|
