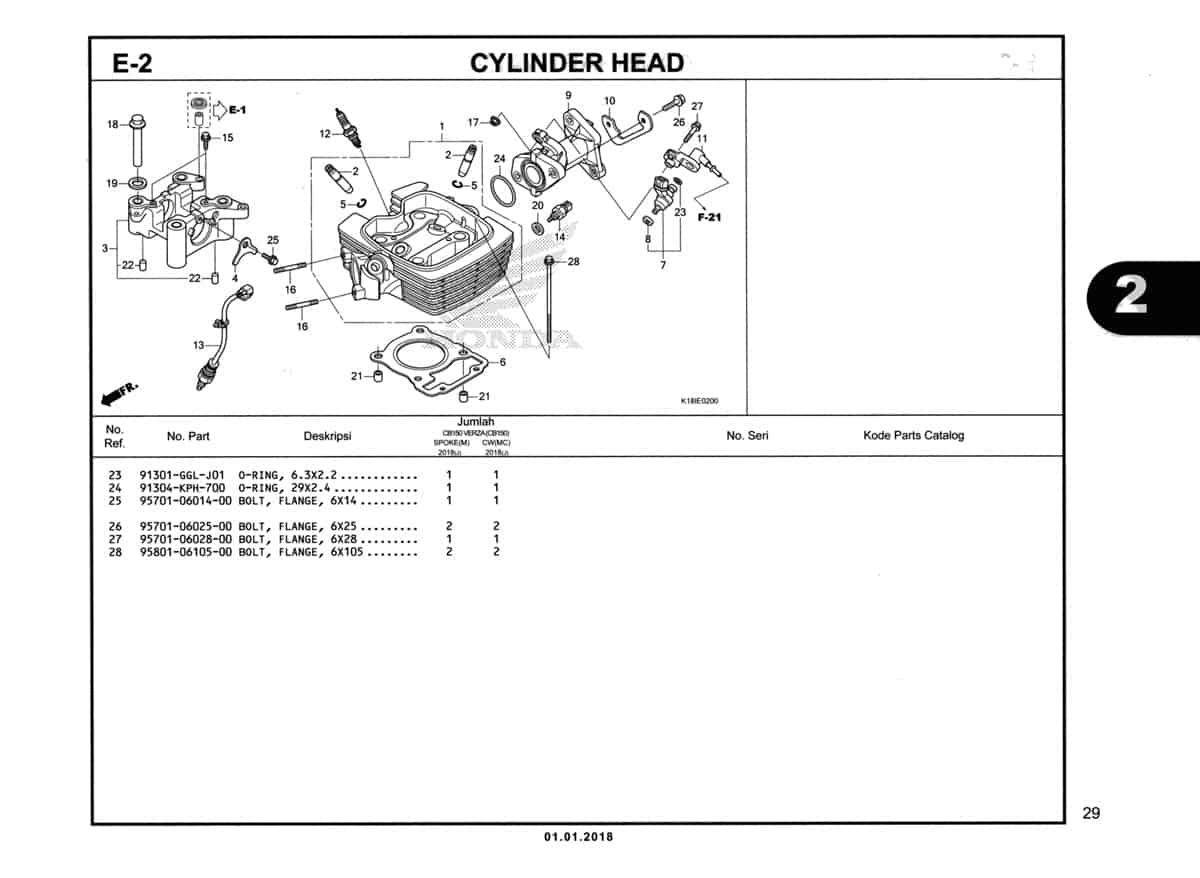

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Head Sub Assy Cylinder | 12200KYE940 |
|
| 1 | Head Sub Assy Cylinder | 12200K84900 |
|
| 2 | Guide Valve OS | 12204KRM305 |
|
| 3 | Holder Comp Camshaft | 12210KSP910 |
|
| 4 | Plate Stopper | 12212KRM840 |
|
| 5 | Clip Valve Guide | 12213KSP910 |
|
| 6 | Gasket Cylinder Head | 12251KRM872 |
|
| 7 | Injector Assy Fuel | 16450K18961 |
|
| 8 | Ring Seal | 16472KPCD50 |
|
| 9 | Pipe Comp Inlet | 17110K18900 |
|
| 10 | Plate | 17120K18900 |
|
| 11 | Joint Injector | 17560K18900 |
|
| 12 | Spark Plug CPR9EA9 (NGK) | 31926KRM841 |
|
| 13 | Ssnsor Oxygen | 36532K18961 |
|
| 14 | Sensor Assy T-Oil | 37750K16A21 |
|
| 15 | Bolt Flange 5X14 | 90002KRM840 |
|
| 16 | Bolt Stud 8X22 | 90035KRM840 |
|
| 17 | Nut U 6MM | 90301473003 |
|
| 18 | Nut Cylinder Head | 90306KRM840 |
|
| 19 | Washer Plain 12MM | 90404KPTA00 |
|
| 20 | Washer Sealing 10MM | 90441GFC770 |
|
| 21 | Pin Dowel 10X12 | 90703KRM840 |
|
| 22 | Pin Dowel 6X10 | 90704KRM840 |
|
| 22 | Pin B DowelL 6X10 | 9430206100 |
|
| 22 | Pin Dowel 6X10 | 9430306100 |
|
| 23 | O-Ring 6.3X2.2 | 91301GGLJ01 |
|
| 24 | O-Ring 29 X 2.4 | 91304KPH700 |
|
| 25 | Bolt Flange 6X14 | 957010601400 |
|
| 26 | Bolt Flange 6X25 | 957010602500 |
|
| 27 | Bolt Flange 6X28 | 957010602800 |
|
| 28 | Bolt Flange 6X105 | 958010610500 |
|
