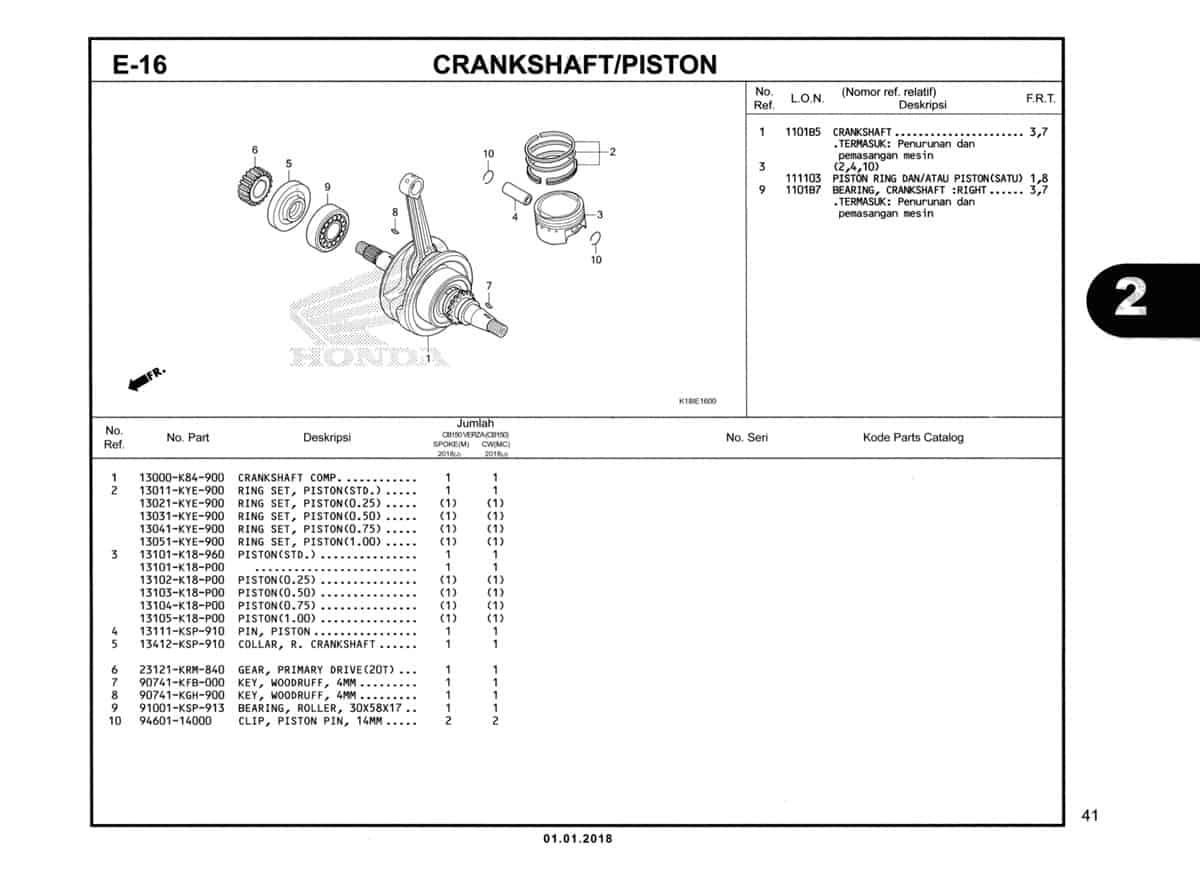

E16 – Crankshaft / Piston – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Crank Shaft Comp Part Number : `13000K84900`
1	Crank Shaft Comp Part Number : `1331AK18900`
2	Ring Set Piston (STD) Part Number : `13011KYE900`
2	Ring Set Piston (0.25) Part Number : `13021KYE900`
2	Ring Set Piston (0.50) Part Number : `13031KYE900`
2	Ring Set Piston (0.75) Part Number : `13041KYE900`
2	Ring Set Piston (1.00) Part Number : `13051KYE900`
3	Piston Part Number : `13101K18960`
3	Piston STD Part Number : `13101K18P00`
3	Piston OS 0.25 Part Number : `13102K18P00`
3	Piston OS 0.50 Part Number : `13103K18P00`
3	Piston OS 0.75 Part Number : `13104K18P00`
3	Piston OS 1.00 Part Number : `13105K18P00`
4	Pin Piston Part Number : `13111KSP910`
5	Collar R Crank Shaft Part Number : `13412KSP910`
5	Collar R Crank Shaft Part Number : `13412K84N00`
6	Gear Primary Drive Part Number : `23121KRM840`
7	Key Woodruff 4MM Part Number : `90741KFB000`
8	Key Woodruff 4MM Part Number : `90741KGH900`
9	Bearing Roller 30X58X17 Part Number : `91001KSP913`
10	Clip Piston Pin 14MM Part Number : `9460114000`
