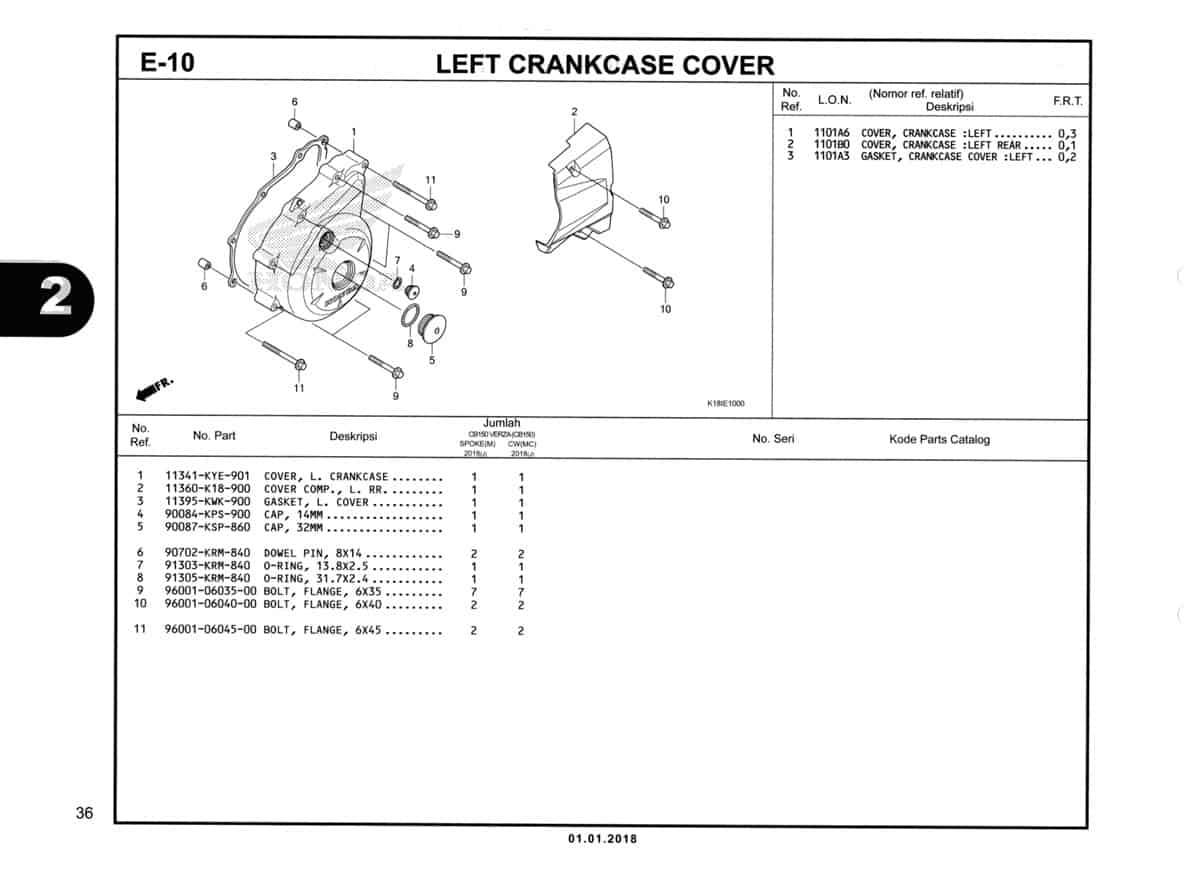

E10 – Left Crankcase Cover – Katalog Honda CB150 Verza

#	Informasi Produk	Visual
1	Cover L Crankcase Part Number : `11341KYE901`
2	Cover Comp L RR Part Number : `11360K18900`
3	Gasket L Cover Part Number : `11395KWK900`
3	Gasket L Cover Part Number : `11395KYAC00`
4	Cap 14MM Part Number : `90084KPS900`
5	Cap 32MM Part Number : `90087KSP860`
5	Cap 32MM Part Number : `90087K84N00`
6	Pin Dowel 8X14 Part Number : `90702KRM840`
7	O-Ring13.8X2.5 Part Number : `91303KRM840`
8	O-Ring 31.7X2.4 Part Number : `91305KRM840`
9	Bolt Flange 6X35 Part Number : `960010603500`
10	Bolt Flange 6X40 Part Number : `960010604000`
11	Bolt Flange 6X45 Part Number : `960010604500`
