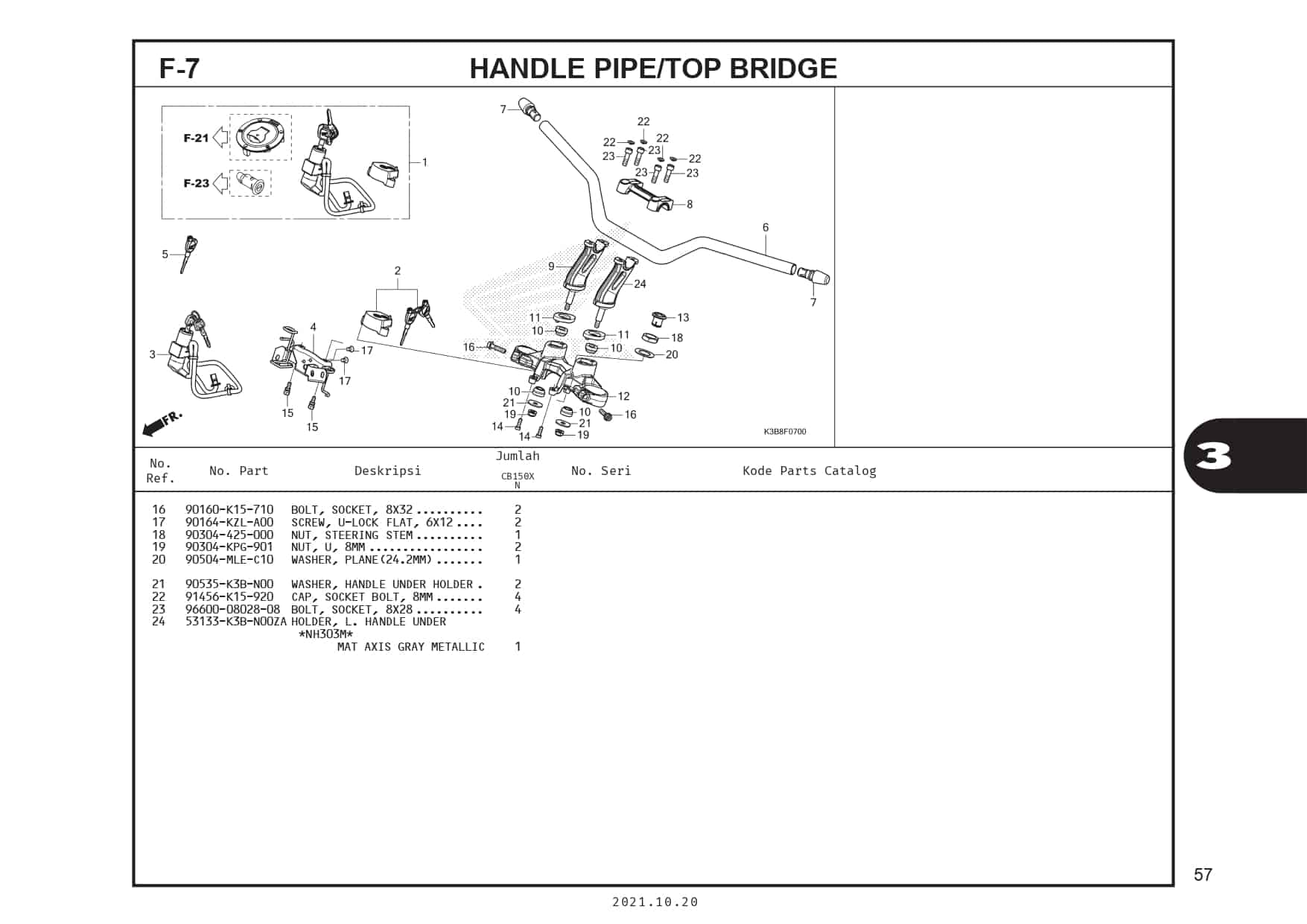

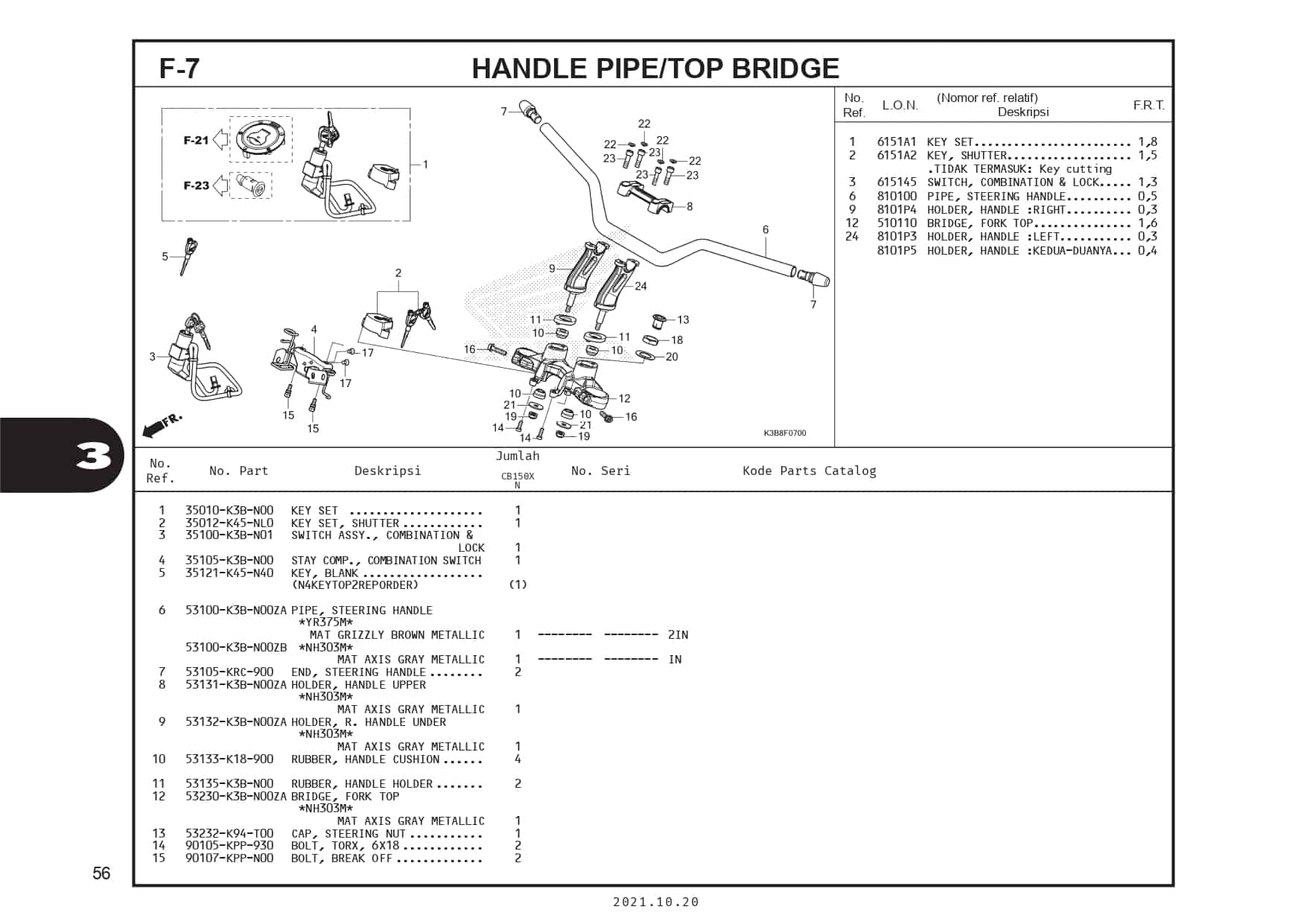

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | KEY SET | 35010K3BN00 |
|
| 2 | SET,KEY SHUTTER | 35012K45NL0 |
|
| 2 | SET,KEY SHUTTER | 35012K45N40 |
|
| 3 | SWITCH ASSY,COMB&LOCK | 35100K3BN01 |
|
| 4 | STAY COMP,COMB SW | 35105K3BN00 |
|
| 5 | KEY BLANK | 35121K45N40 |
|
| 6 | PIPE STRG HANDLE (MT GR BR) | 53100K3BN00ZA |
|
| 6 | PIPE STRG HANDLE (MA AX GY) | 53100K3BN00ZB |
|
| 7 | ENDSTRG HDL | 53105KRC900 |
|
| 7 | ENDSTRG HDL | 53105K3BH00 |
|
| 8 | HOLDER,HNDL UPPER (MA AX GY) | 53131K3BN00ZA |
|
| 9 | HOLDER,HNDL UNDER(MA AX GY) | 53132K3BN00ZA |
|
| 10 | RUBBER,HNDL CUSH | 53133K18900 |
|
| 11 | RUBBER,HNDL HOLDER | 53135K3BN00 |
|
| 12 | BRIDGE,FORK TOP (MA AX GY) | 53230K3BN00ZA |
|
| 13 | CAP,STEM NUT | 53232K94T00 |
|
| 14 | BOLT TORX,M6X16 | 90105KPP930 |
|
| 15 | BOLT BREAK OFF | 90107KPPN00 |
|
| 16 | BOLT SOCKET 8X32 | 90160K15710 |
|
| 17 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 18 | NUT STEERING STEM | 90304425000 |
|
| 19 | NUT,U,8MM | 90304KPG901 |
|
| 20 | WASHER,PLANE 24.2MM | 90504MLEC10 |
|
| 21 | CAP SOCKET BOLT 8MM | 91456K15920 |
|
| 22 | WASHER,HNDL UNDER HOLDER | 90535K3BN00 |
|
| 23 | SOCKET BOLT 8X28 | 966000802808 |
|
| 24 | HOLDER L,HNDL UNDER | 53133K3BN00ZA |
|
