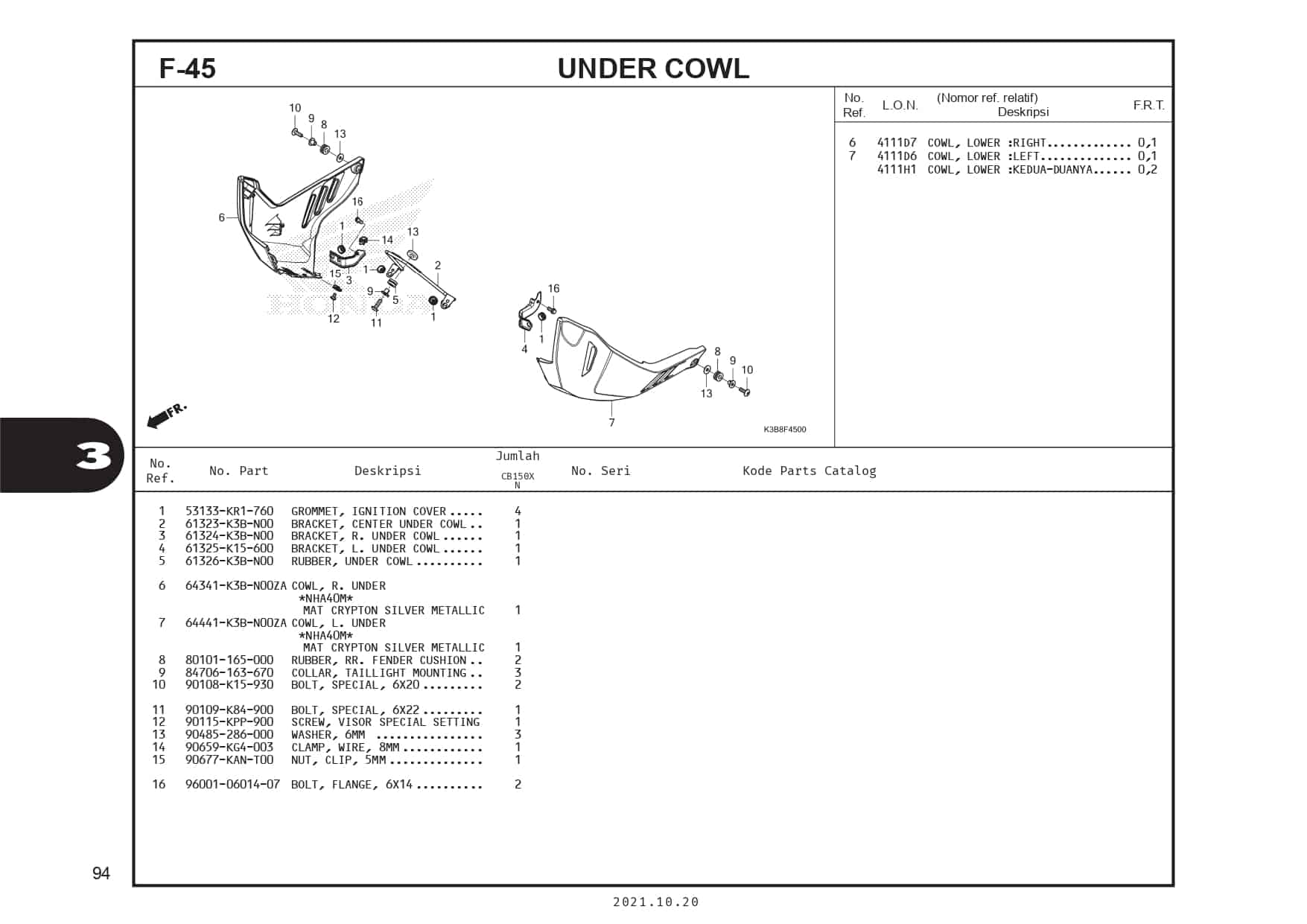

F45 – Under Cowl – Katalog Honda CB150X

#	Informasi Produk	Visual
1	GROMMET, IGNITION COVER Part Number : `53133KR1760`
2	BRKT,CTR UNDER COWL Part Number : `61323K3BN00`
3	BRKT,R UNDER COWL Part Number : `61324K3BN00`
4	BRKT,L UNDER COWL Part Number : `61325K15600`
5	RUBBER,UNDER COWL Part Number : `61326K3BN00`
6	COWL,R UNDER (MT CR SL) Part Number : `64341K3BN00ZA`
7	COWL,L UNDER (MT CR SL) Part Number : `64441K3BN00ZA`
8	RUBBER, RR. FENDER CUSHION Part Number : `80101165000`
9	COLLAR, TAILLIGHT MOUNTING Part Number : `84706163670`
10	BOLT, SPECIAL, 6X20 Part Number : `90108K15930`
11	BOLT SPECIAL 6X22 Part Number : `90109K84900`
12	SCREW,VISOR SPL SET Part Number : `90115KPP900`
13	WASHER 6MM Part Number : `90485286000`
14	CLAMP, WIRE, 8MM Part Number : `90659KG4003`
15	NUT CLIP 5MM. Part Number : `90677KANT00`
16	BOLT,FLANGE,SH 6X14 Part Number : `960010601407`
