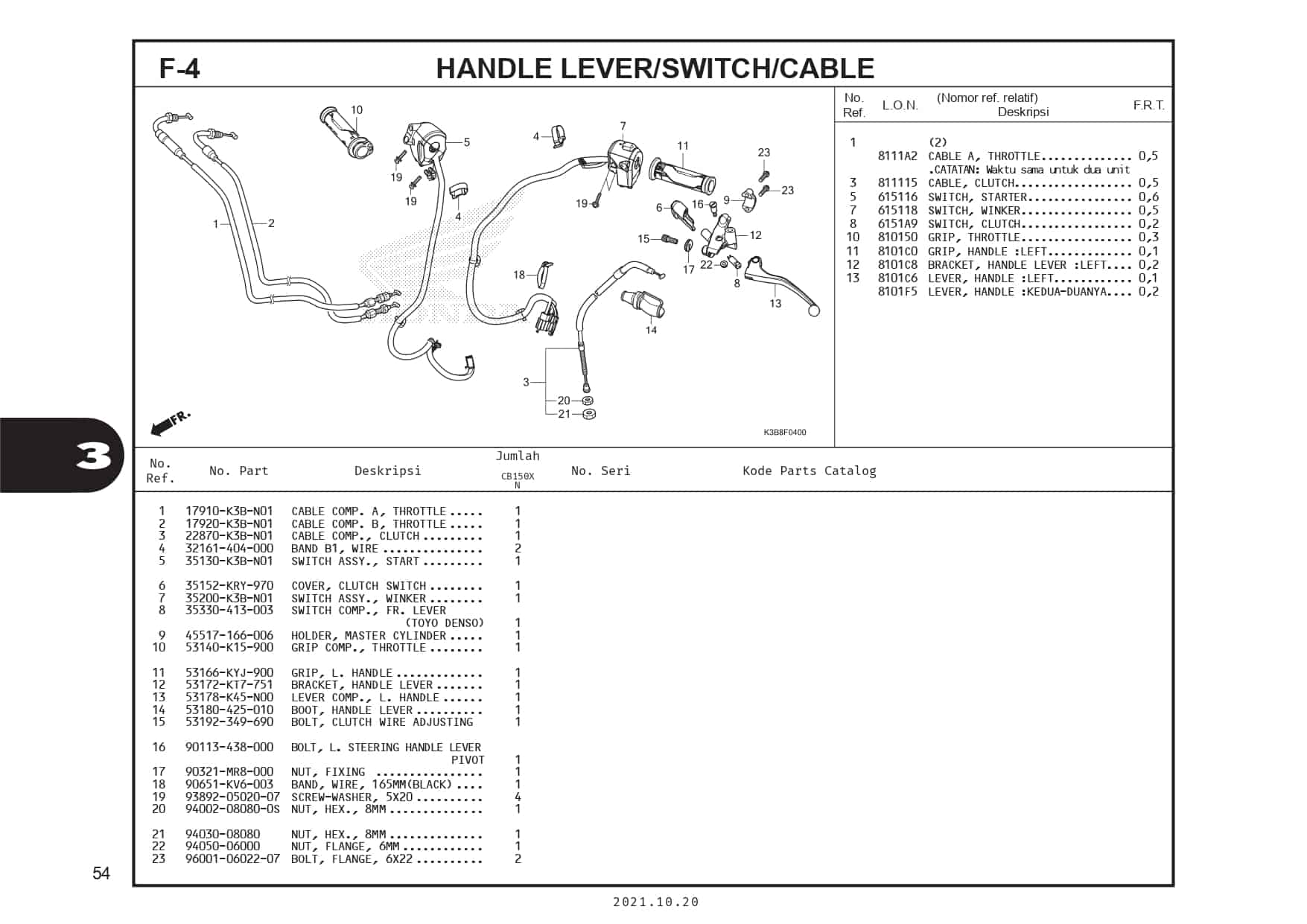

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP,A THROT | 17910K3BN01 |
|
| 2 | CABLE COMP,B THROT | 17920K3BN01 |
|
| 3 | CABLE COMP,CLUTCH | 22870K3BN01 |
|
| 4 | BAND B1 WIRE /K5 | 32161404000 |
|
| 5 | SW ASSY,START | 35130K3BN01 |
|
| 6 | COVER,CLUTCH SW | 35152KRY970 |
|
| 7 | SW ASSY,WINKER | 35200K3BN01 |
|
| 8 | SWITCH FR LEVER | 35330413003 |
|
| 9 | HOLDER MASTER CYL | 45517166006 |
|
| 10 | GRIP COMP,THROT | 53140K15900 |
|
| 11 | GRIP,L HANDLE | 53166KYJ900 |
|
| 12 | BRACKET, HANDLE LEVER | 53172KT7751 |
|
| 13 | LEVER COMP., L. HANDLE | 53178K45N00 |
|
| 14 | BOOT HDL LEVER | 53180425010 |
|
| 15 | BOLT WIRE ADJ | 53192349690 |
|
| 16 | BOLT L HDL | 90113438000 |
|
| 17 | NUT,FIXING | 90321MR8000 |
|
| 18 | BAND WIRE | 90651KV6003 |
|
| 19 | SCREW,WASHER 5X20 | 938920502007 |
|
| 20 | NUT, HEX., 8MM | 94002080800S |
|
| 21 | NUT, HEX, 8MM | 9403008080 | - |
| 21 | NUT, HEX, 8MM | 9403008000 |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
| 23 | BOLT FLANGE 6X22 | 960010602207 |
|
