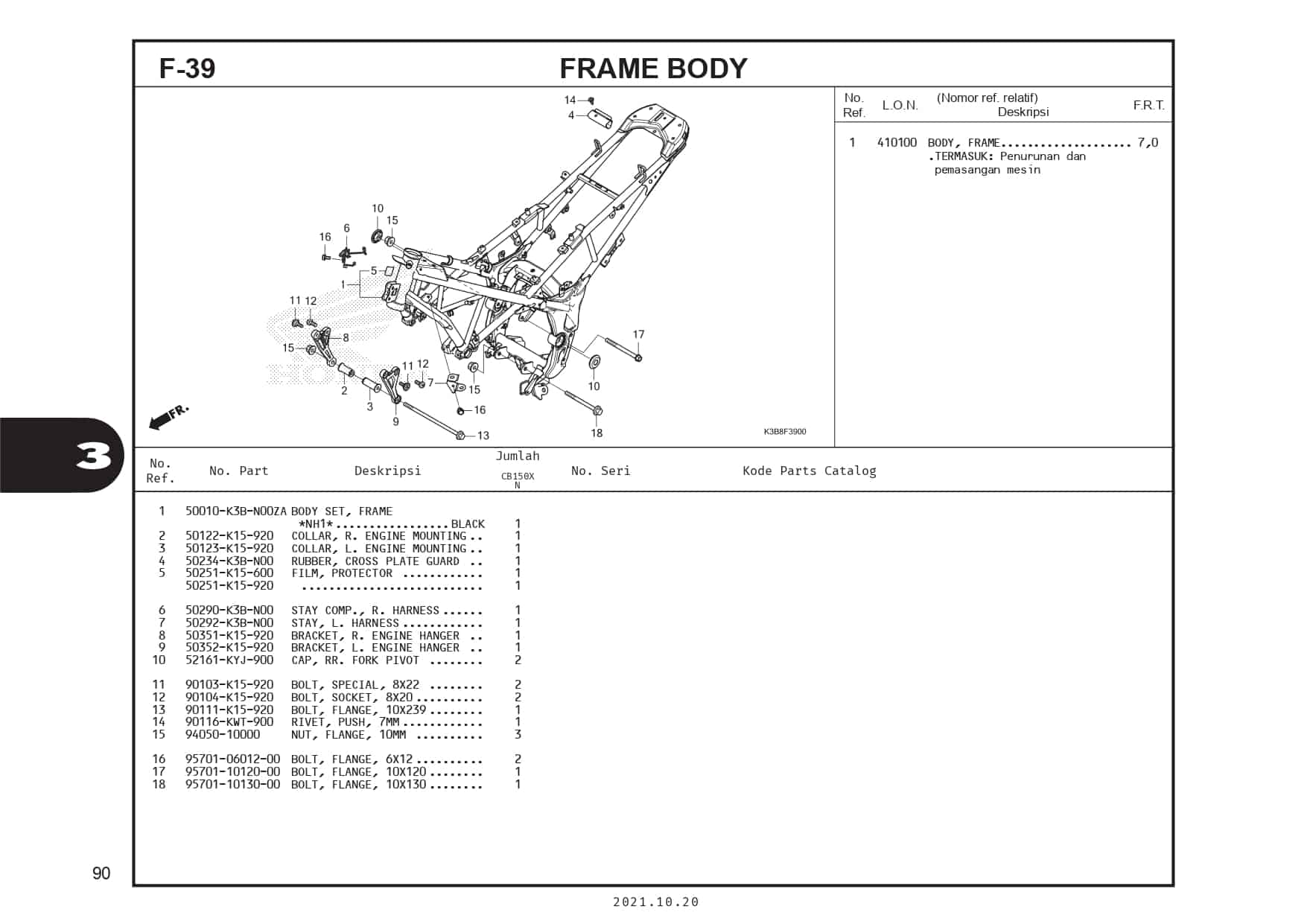

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SET FRAME BODY COMP (BLK) | 50010K3BN00ZA | - |
| 2 | COLLAR R ENGINE MOUNTING | 50122K15920 |
|
| 3 | COLLAR L ENGINE MOUNTING | 50123K15920 |
|
| 4 | RUBBER,CROSS PLATE GUARD | 50234K3BN00 |
|
| 5 | FILM, PROTECTOR | 50251K15600 |
|
| 5 | FILM,PROTECTOR | 50251K15920 |
|
| 6 | STAY COMP R,HARNESS | 50290K3BN00 |
|
| 7 | STAY L,HARNESS | 50292K3BN00 |
|
| 8 | BRACKET, R. ENGINE HANGER | 50351K15920 |
|
| 9 | BRACKET, L. ENGINE HANGER | 50352K15920 |
|
| 10 | CAP,RR FORK PIVOT | 52161KYJ900 |
|
| 11 | BOLT, SPECIAL, 8X22 | 90103K15920 |
|
| 12 | BOLT, SOCKET, 8X20 | 90104K15920 |
|
| 13 | BOLT, FLANGE, 10X239 | 90111K15920 |
|
| 14 | RIVET,PUSH 7MM | 90116KWT900 |
|
| 15 | NUT FLANGE10MM | 9405010000 |
|
| 16 | BOLT FLANGE 6X12 | 957010601200 |
|
| 17 | BOLT FLANGE 10X120 | 957011012000 |
|
| 17 | BOLT FLANGE 10X120 | 957011012008 |
|
| 18 | BOLT FLANGE 10X130 | 957011013000 |
|
