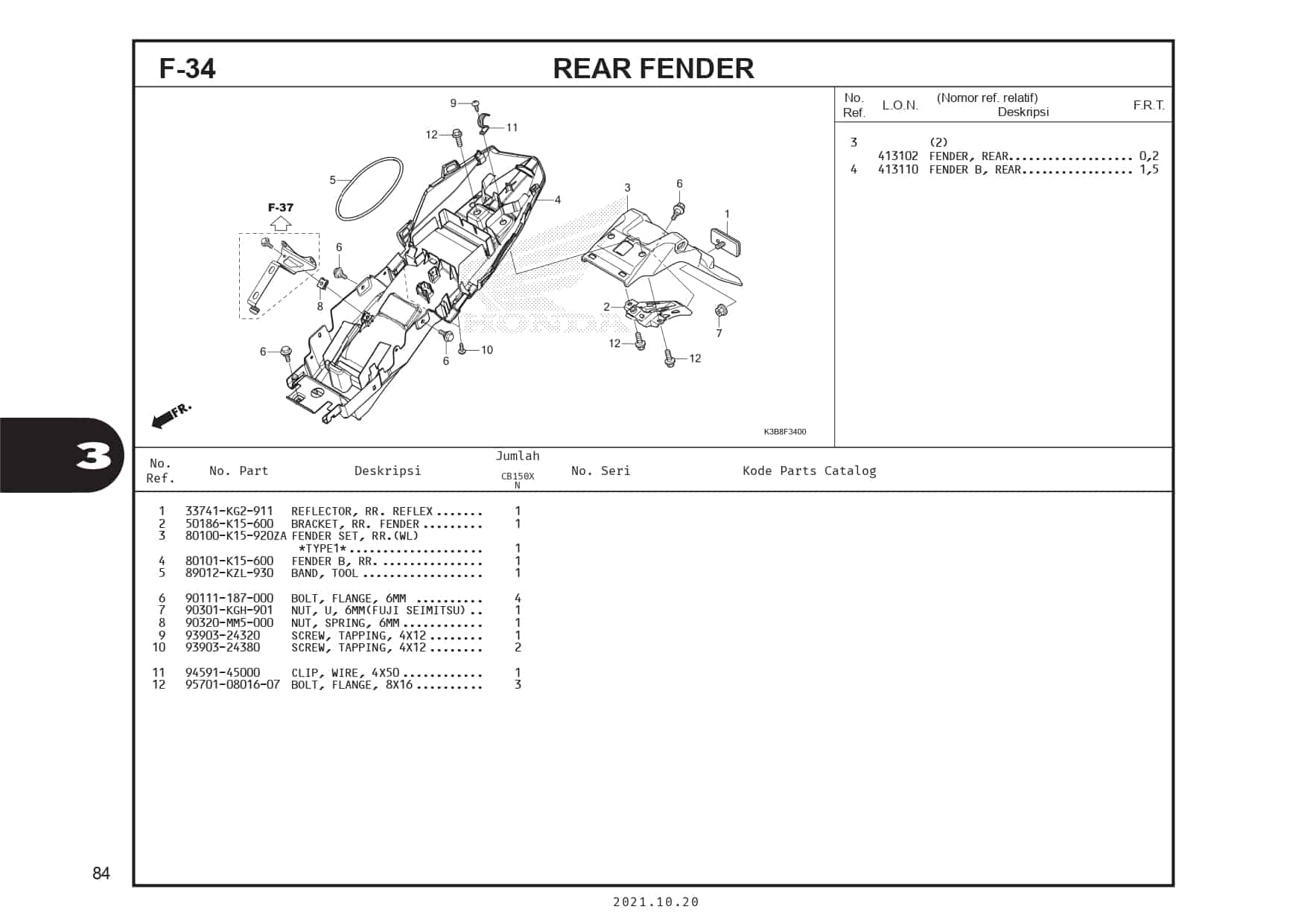

F34 – Rear Fender – Katalog Honda CB150X

#	Informasi Produk	Visual
1	REFLECTOR, RR. REFLEX Part Number : `33741KG2911`
2	BRKT, REAR FENDER Part Number : `50186K15600`
3	SET ILLUST, RR FENDER Part Number : `80100K15920ZA`
3	SET ILLUST, RR FENDER Part Number : `80100K3BH00ZA`
4	FENDER,B REAR Part Number : `80101K15600`
5	BAND TOOL Part Number : `89012KZL930`
6	BOLT FLANGE 6MM Part Number : `90111187000`
7	NUT U 6MM Part Number : `90301KGH901`
8	NUT SPRING,6MM Part Number : `90320MM5000`
9	SCREW TAPPING 4X12 Part Number : `9390324320`
10	SCREW TAPPING 4X12 Part Number : `9390324380`
11	CLIP WIRE 4X50 Part Number : `9459145000`
12	BOLT,FLANGE 8X16 Part Number : `957010801607`
