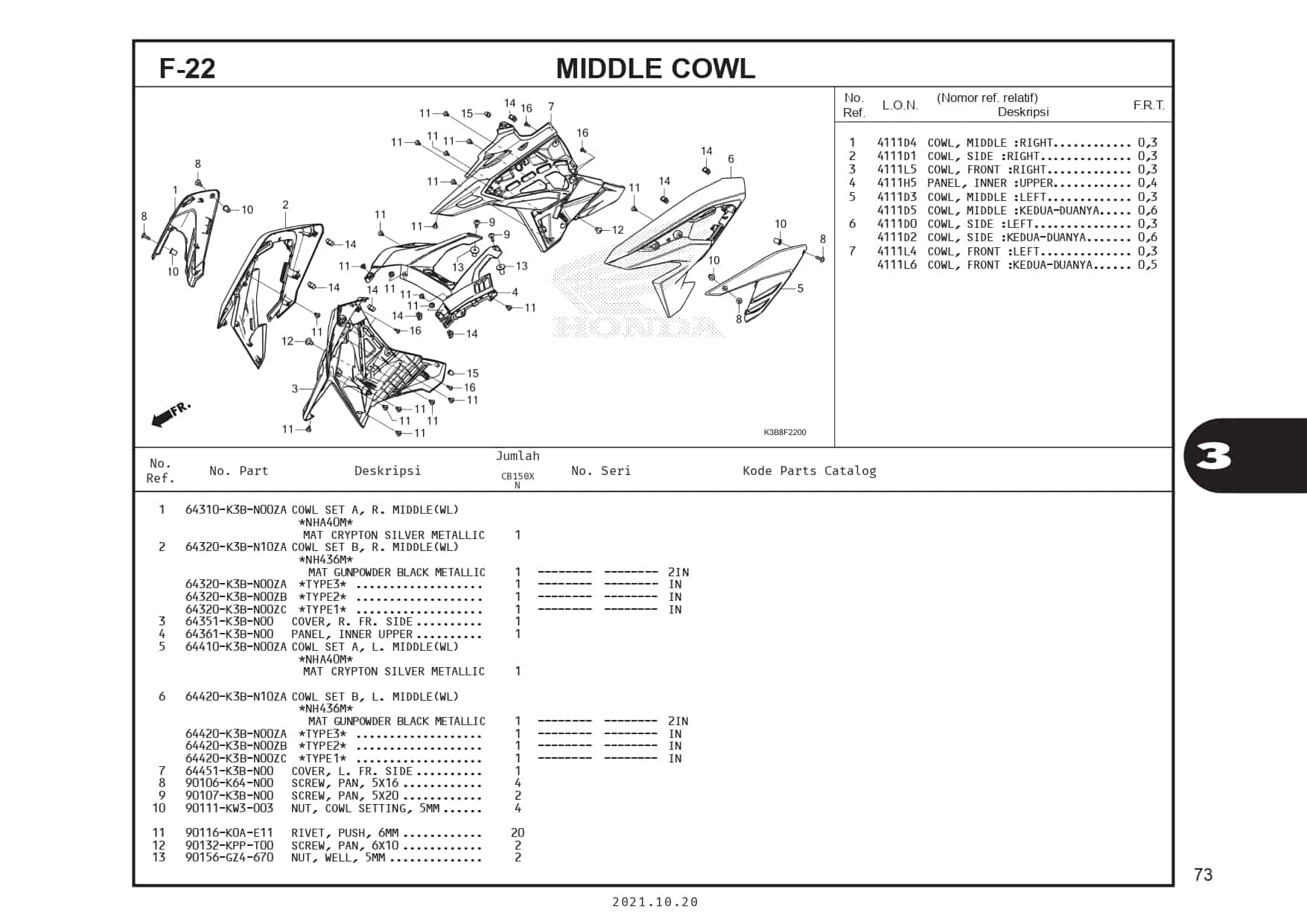

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SET ILLUS,R MID CWL A, TYPE 1 | 64310K3BN00ZA |
|
| 2 | SET ILLUS,R MID CWL B, TYPE 1 | 64320K3BN10ZA |
|
| 2 | COWL B,R MIDDLE (MT GN BL) | 64321K3BN00MGB |
|
| 2 | COWL B,R MIDDLE (MT ME BR) | 64321K3BN00MMB |
|
| 2 | COWL B,R MIDDLE (VA RD) | 64321K3BN00VRD |
|
| 2 | COWL B,R MIDDLE (MT SA GR) | 64321K3BN00MSG |
|
| 2 | SET ILLUS,R MID CWL B, TYPE 1 | 64320K3BN00ZC |
|
| 3 | COVER,R FR SIDE | 64351K3BN00 |
|
| 4 | PANEL,INNER UPPER | 64361K3BN00 |
|
| 5 | SET ILLUS,L MID CWL A, TYPE 1 | 64410K3BN00ZA |
|
| 6 | SET ILLUS,L MID CWL B, TYPE 1 | 64420K3BN10ZA |
|
| 6 | SET ILLUS,L MID CWL B | 64420K3BN00ZC |
|
| 6 | COWL B,L MIDDLE (MT GN BL) | 64421K3BN00MGB |
|
| 6 | COWL B,L MIDDLE (MT ME BR) | 64421K3BN00MMB |
|
| 6 | COWL B,L MIDDLE (VA RD) | 64421K3BN00VRD |
|
| 6 | COWL B,L MIDDLE (MT SA GR) | 64421K3BN00MSG |
|
| 7 | COVER,L FR SIDE | 64451K3BN00 |
|
| 8 | SCREW, PAN, 5X16 | 90106K64N00 |
|
| 9 | SCREW,PAN 5X20 | 90107K3BN00 |
|
| 10 | NUT COWL SET M5X0.8 | 90111KW3003 |
|
| 11 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 12 | SCREW,PAN 6X10 | 90132KPPT00 |
|
| 13 | NUT, WELL, 5MM | 90156GZ4670 |
|
| 14 | CLIP SNAP FIT(PO) | 90666K59A11 |
|
| 15 | PLUG, CONE TYPE | 90899422610 |
|
| 16 | SCREW TAPPING 4X12 | 9390324320 |
|
