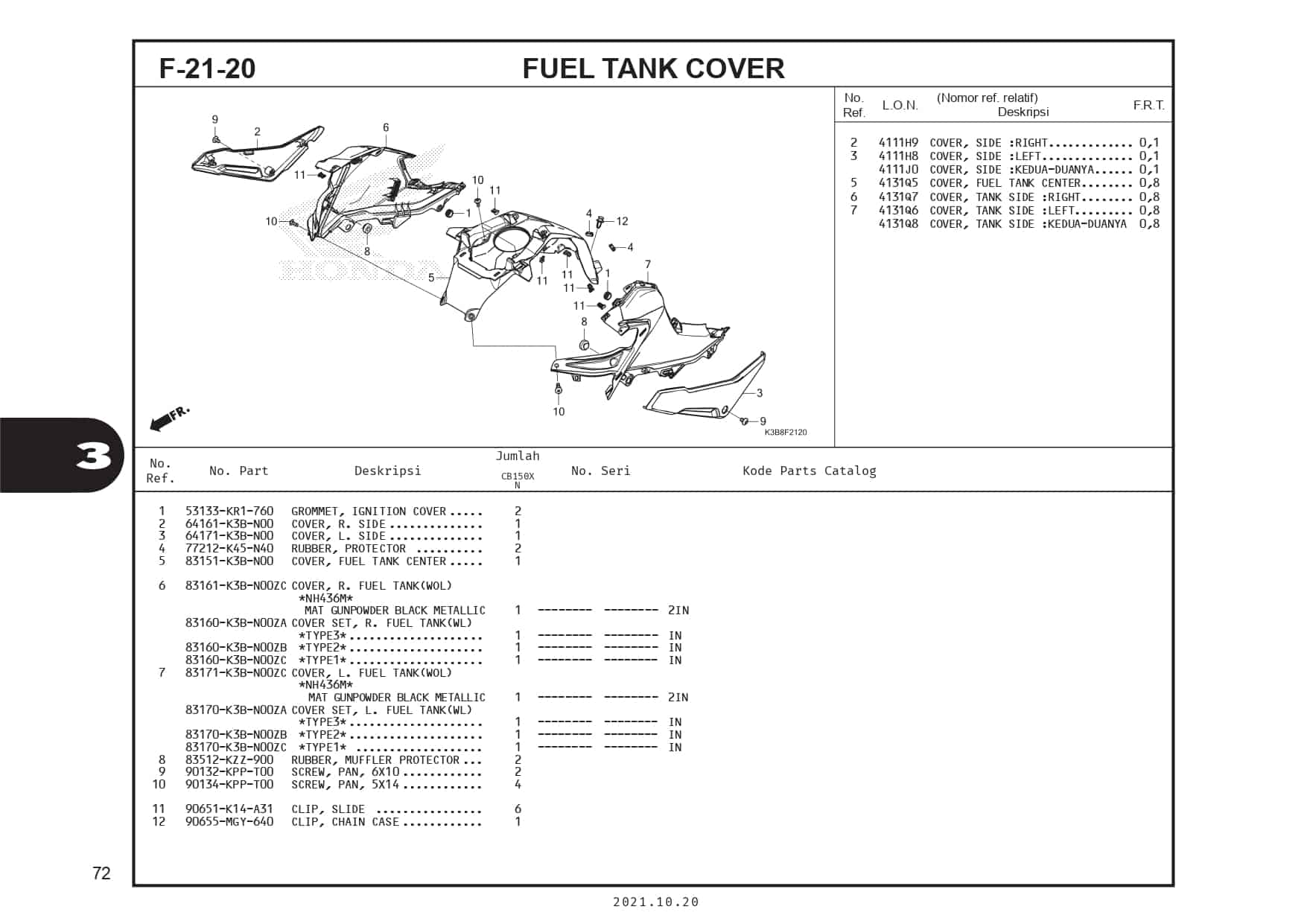

F21-20 – Fuel Tank Cover – Katalog Honda CB150X

#	Informasi Produk	Visual
1	GROMMET, IGNITION COVER Part Number : `53133KR1760`
2	COVER,R SIDE Part Number : `64161K3BN00`
3	COVER,L SIDE Part Number : `64171K3BN00`
4	RUBBER, PROTECTOR Part Number : `77212K45N40`
5	COVER,FUEL TANK CENTER Part Number : `83151K3BN00`
6	COVER,R FUEL TANK (MT GN BL) Part Number : `83161K3BN00ZC`
6	COVER,R FUEL TANK (VA RD) Part Number : `83161K3BN00ZB`
6	COVER,R FUEL TANK (MT ME BR) Part Number : `83161K3BN00ZA`
6	COVER,R FUEL TANK (MT SA GR) Part Number : `83161K3BN00ZD`
6	SET ILLUS,R FUEL TANK CVR, TYPE 1 Part Number : `83160K3BN00ZC`
7	COVER,L FUEL TANK (MT GN BL) Part Number : `83171K3BN00ZC`
7	SET ILLUS,L FUEL TANK CVR, TYPE 1 Part Number : `83170K3BN00ZC`
7	COVER,L FUEL TANK (VA RD) Part Number : `83171K3BN00ZB`
7	COVER,L FUEL TANK (MT SA GR) Part Number : `83171K3BN00ZD`
7	COVER,L FUEL TANK (MT ME BR) Part Number : `83171K3BN00ZA`
8	RUBBER MUFFLER PR Part Number : `83512KZZ900`
9	SCREW,PAN 6X10 Part Number : `90132KPPT00`
10	SCREW,PAN 5X14 Part Number : `90134KPPT00`
11	SLIDE CLIP Part Number : `90651K14A31`
12	CLIP,CHAIN CASE Part Number : `90655MGY640`
