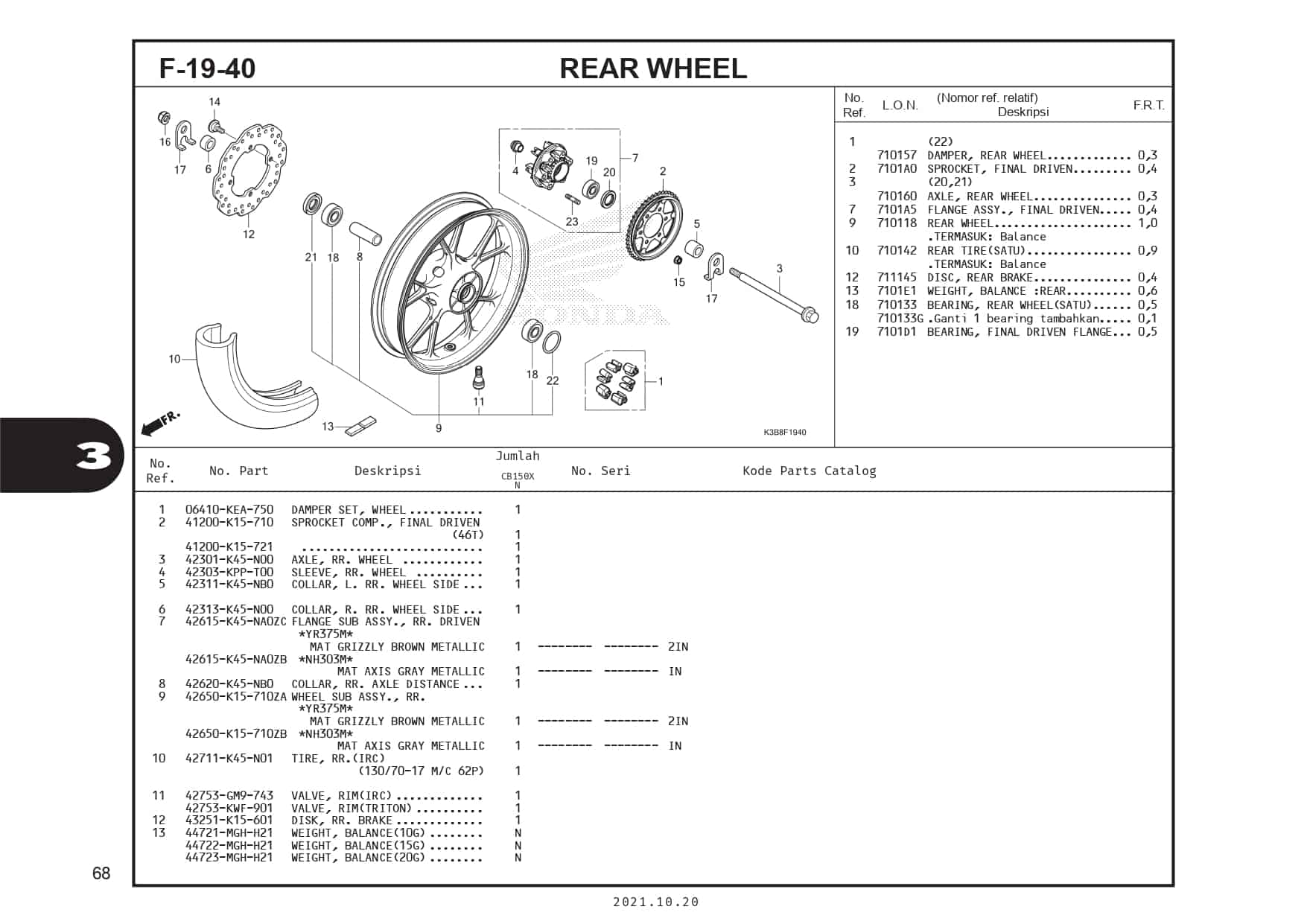

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | DAMPER SET WHEEL | 06410KEA750 |
|
| 2 | SPRKT COMP,FINAL DRIVEN,46T | 41200K15710 |
|
| 3 | AXLE RR WHEEL | 42301K45N00 |
|
| 4 | SLEEVE,REAR WHEEL | 42303KPPT00 |
|
| 5 | COLLAR,L RR WHEEL SIDE | 42311K45NB0 |
|
| 6 | COLLAR R RR WHEEL SIDE | 42313K45N00 |
|
| 7 | FLANGE SUB ASSY, DRIVEN (BROWN) | 42615K45NA0ZC |
|
| 7 | FLANGE SUB ASSY (MA AX GY) | 42615K45NA0ZB |
|
| 8 | COLLAR,RR AXLE DIST | 42620K45NB0 |
|
| 9 | WHEEL SUB ASSY,RR (BROWN) | 42650K15710ZA |
|
| 9 | WHEEL SUB ASSY,RR (GREY) | 42650K15710ZB |
|
| 10 | TIRE, RR.(IRC) | 42711K45N01 |
|
| 11 | VALVE,RIM (INOUE) | 42753GM9743 |
|
| 11 | VALVE,RIM(TRITON) | 42753KWF901 |
|
| 12 | DISK,RR BRAKE | 43251K15601 |
|
| 13 | WEIGHT BALANCE 10 | 44721MGHH21 |
|
| 13 | WEIGHT BALANCE 15 | 44722MGHH21 |
|
| 13 | WEIGHT BALANCE 20 | 44723MGHH21 |
|
| 14 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 15 | NUT U10MM | 90304KGH901 |
|
| 16 | NUT U 14 MM | 90305KCJ951 |
|
| 17 | WASHER RR AXLE | 90559K45N00 |
|
| 18 | BEARING, RADIAL BALL, 6302(UU) | 91051KVSF01 |
|
| 19 | BEARING, RADIAL BALL, 6204UU L | 91052K53D04 |
|
| 20 | DUST SEAL,30X47X8 | 91253443761 |
|
| 21 | OIL SEAL, 28X42X7 | 91257230003 |
|
| 21 | OIL SEAL,28x42x7 | 91257230005 |
|
| 22 | O-RING 48X2 | 91351K64N00 |
|
| 23 | BOLT,STUD 2,10X25 | 92915100250E |
|
