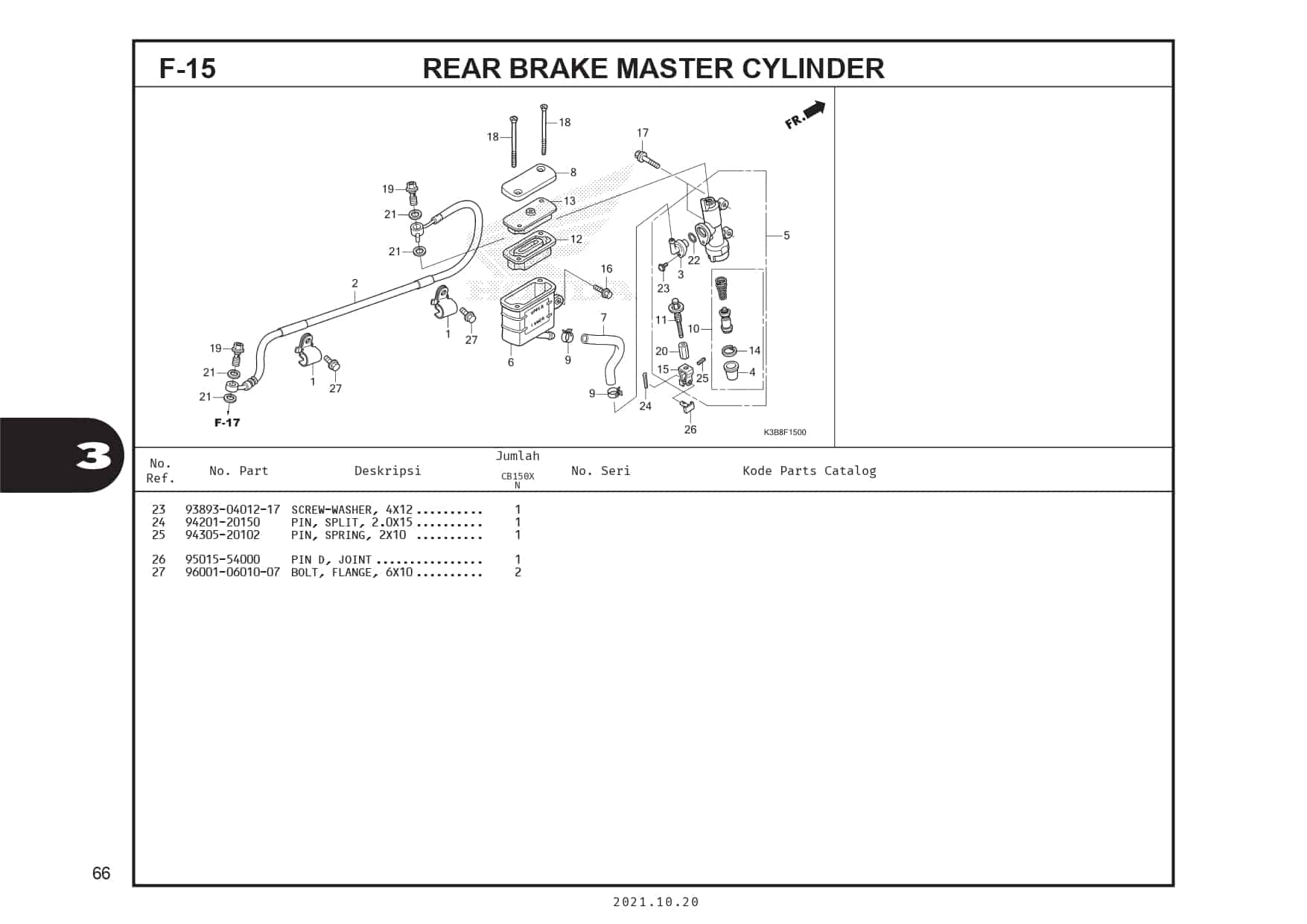

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CLAMPER RR BRK HOSE | 43155K15900 |
|
| 2 | HOSE COMP,RR BRAKE | 43310K3BN01 |
|
| 3 | CONNECTOR M/C | 43503MERD01 |
|
| 4 | BOOT COMP | 43504MB2006 |
|
| 5 | SUB ASSY,REAR M/C | 43510K15711 |
|
| 6 | OIL CUP COMP | 43511K43D31 |
|
| 7 | HOSE, RR. MASTER CYLINDER | 43512K15921 |
|
| 8 | CAP M/C | 43513KTYC01 |
|
| 9 | CLMP,CYLN.OIL | 43514KS6701 |
|
| 10 | PISTON,CYLINDER | 43520MJ6315 |
|
| 11 | RODCOMP.,PUSH(NISSIN) | 43530KBA921 |
|
| 12 | DIAPHRAGM | 45520GW0911 |
|
| 13 | PLATE,DIAPHRAGM | 45521GW0911 |
|
| 14 | CIRCLIP M/C | 46182MELD21 |
|
| 15 | JOINT BRAKE ROD | 46504KV6702 |
|
| 16 | BOLT, FLANGE, 6X14(NSHF) | 90005MGZJ00 |
|
| 17 | BOLT,FLANGE SH 6X22 | 90105HP1000 |
|
| 18 | SCREW,FLAT 4X50 | 90140K43D31 |
|
| 19 | BOLT OIL 10X22 | 90145GAZ981 |
|
| 20 | NUT,SPECIAL,8MM(NISSIN) | 90315KBA921 |
|
| 21 | WASHER OIL BOLT | 90545300000 |
|
| 22 | O-RING,14.8X2.4 | 91212422006 |
|
| 23 | SCREW WASHER 4X12 | 938930401217 |
|
| 24 | PIN COTTER 2.0X15 | 9420120150 |
|
| 25 | PIN,SPRING,2X10 | 9430520102 |
|
| 26 | PIN D JOINT | 9501554000 |
|
| 27 | BOLT,FLANGE,SH 6X10 | 960010601007 |
|
