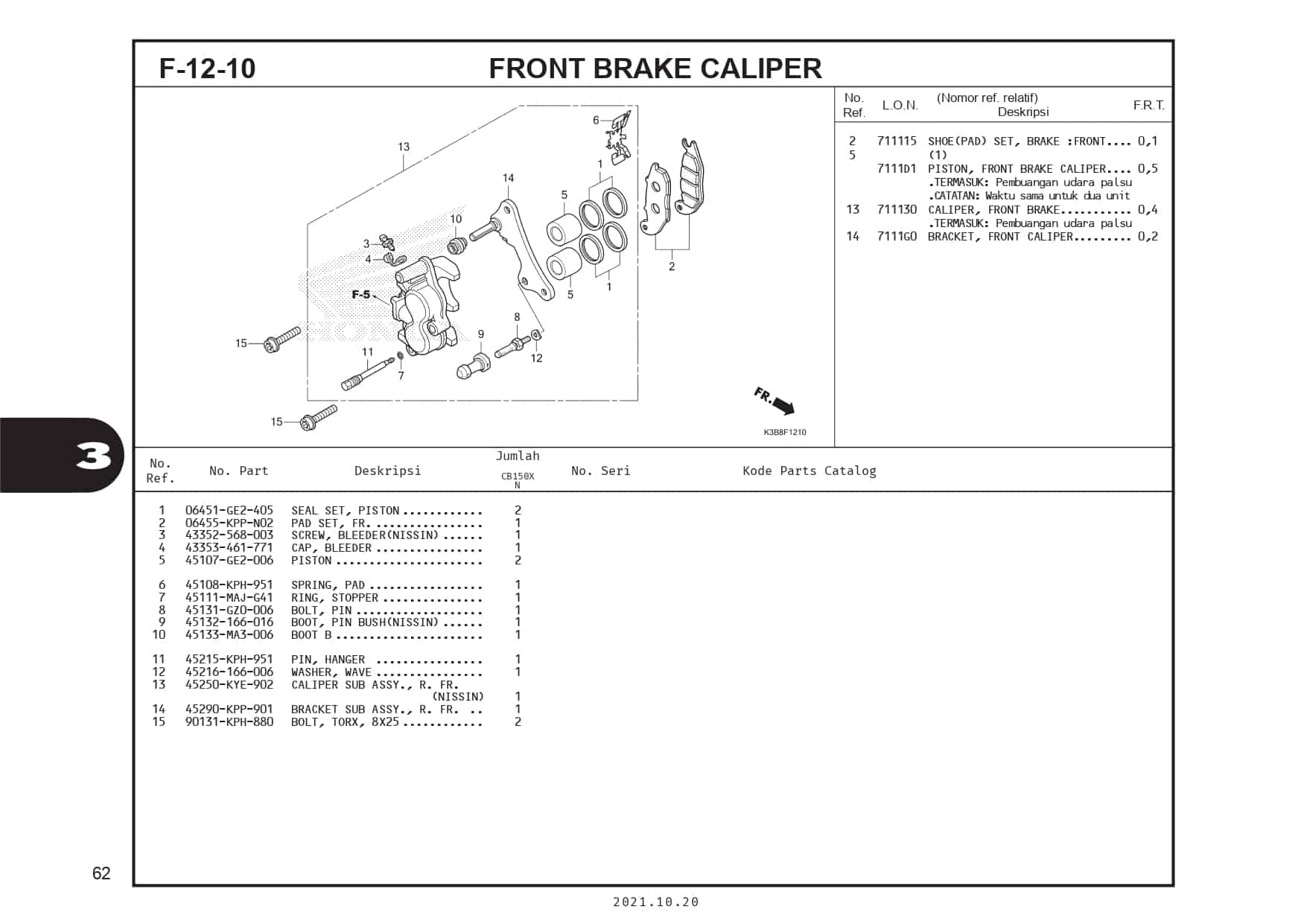

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEALSET,PISTON | 06451GE2405 |
|
| 2 | PAD SET, FR BRAKE | 06455KPPN02 |
|
| 3 | SCREW,BLEEDER | 43352568003 |
|
| 4 | CAP,BLEEDER | 43353461771 |
|
| 5 | PISTON | 45107GE2006 |
|
| 6 | SPRIND PAD | 45108KPH951 |
|
| 7 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 8 | PIN,BOLT | 45131GZ0006 |
|
| 9 | BUSH PIN | 45132166016 |
|
| 10 | BOOT B,PIN | 45133MA3006 |
|
| 11 | PIN HANGER | 45215KPH951 |
|
| 12 | WASHER,WAVE | 45216166006 |
|
| 13 | CALIPER SUB ASSY R FR | 45250KYE902 |
|
| 14 | BRKT SUB ASSY FR | 45290KPP901 |
|
| 15 | BOLT TORX 8X25 | 90131KPH880 |
|
