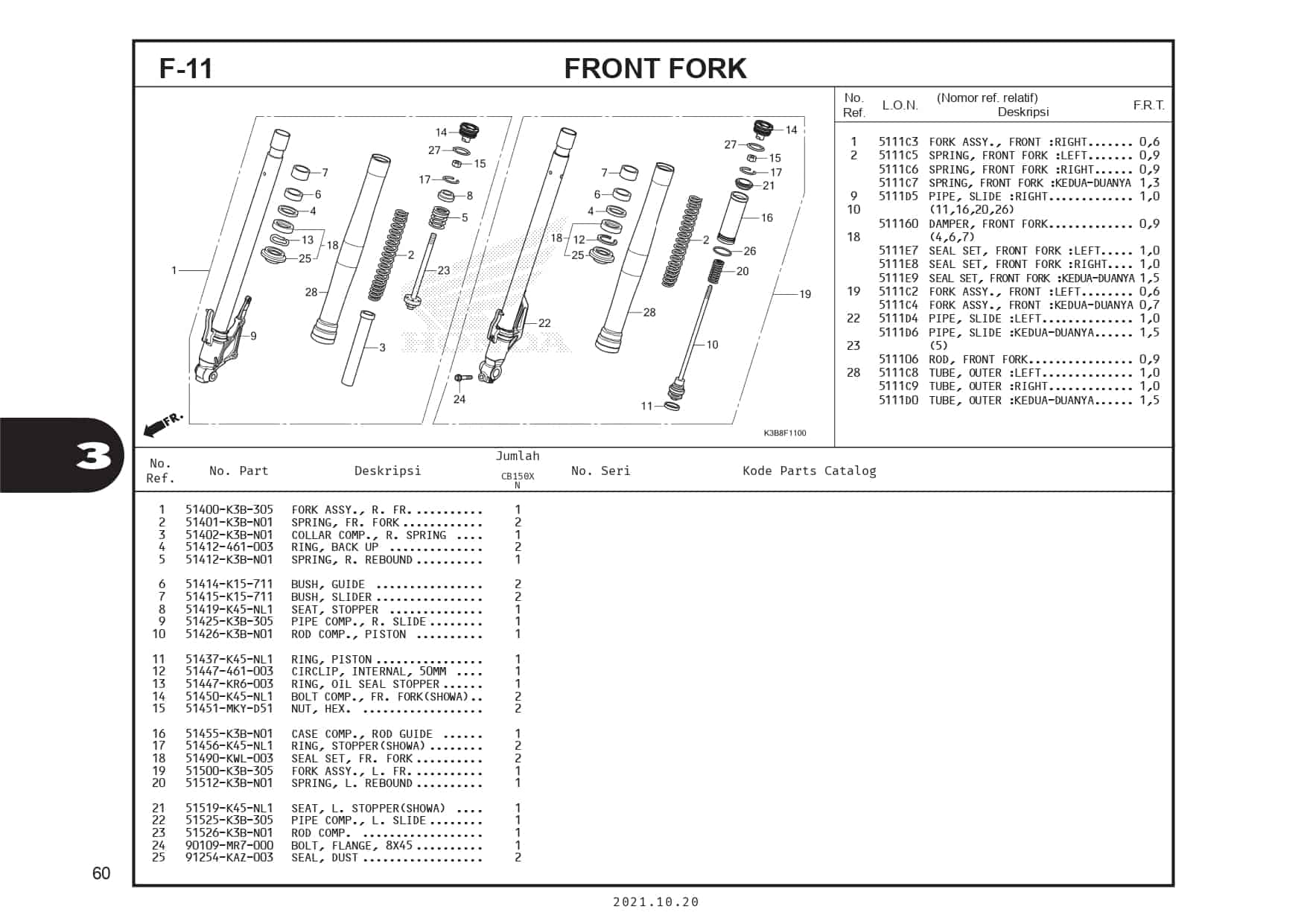

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY,R FRONT | 51400K3B305 |
|
| 2 | SPRING,FR FORK | 51401K3BN01 |
|
| 3 | COLLAR COMP R, SPG | 51402K3BN01 |
|
| 4 | RING,BACK UP | 51412461003 |
|
| 5 | SPRING R, REBOND | 51412K3BN01 |
|
| 6 | BUSH, GUIDE | 51414K15711 |
|
| 7 | BUSH, SLIDE | 51415K15711 |
|
| 8 | SEAT, STOPPER | 51419K45NL1 |
|
| 9 | PIPE COMP., R. SLIDE | 51425K3B305 |
|
| 10 | ROD COMP. PISTON | 51426K3BN01 |
|
| 11 | RING,PISTON | 51437K45NL1 |
|
| 12 | CIRCLIP,IN 50 | 51447461003 |
|
| 13 | RING,OIL SEAT STOP | 51447KR6003 |
|
| 14 | BOLT COMP,FR FORK | 51450K45NL1 |
|
| 15 | NUT,HEX | 51451MKYD51 |
|
| 16 | CASE COMP, ROD GIUDE | 51455K3BN01 |
|
| 17 | RING,STOPPER | 51456K45NL1 |
|
| 18 | SEAL SET,FR FORK | 51490KWL003 |
|
| 19 | FORK ASSY,L FRONT | 51500K3B305 |
|
| 20 | SPRING, L REBOND | 51512K3BN01 |
|
| 21 | SEAT,L STOPPER | 51519K45NL1 |
|
| 22 | PIPE COMP., L. SLIDE | 51525K3B305 |
|
| 23 | ROD COMP | 51526K3BN01 |
|
| 24 | BOLT,FLANGE,8X45 | 90109MR7000 |
|
| 25 | SEAL DUST | 91254KAZ003 |
|
| 26 | O RING,27.7X2.4 | 91356K45NL1 |
|
| 27 | O-RING, 37.2X2.4(SHOWA) | 91356MW0003 |
|
| 28 | TUBE OUTER | 51410K15305 |
|
