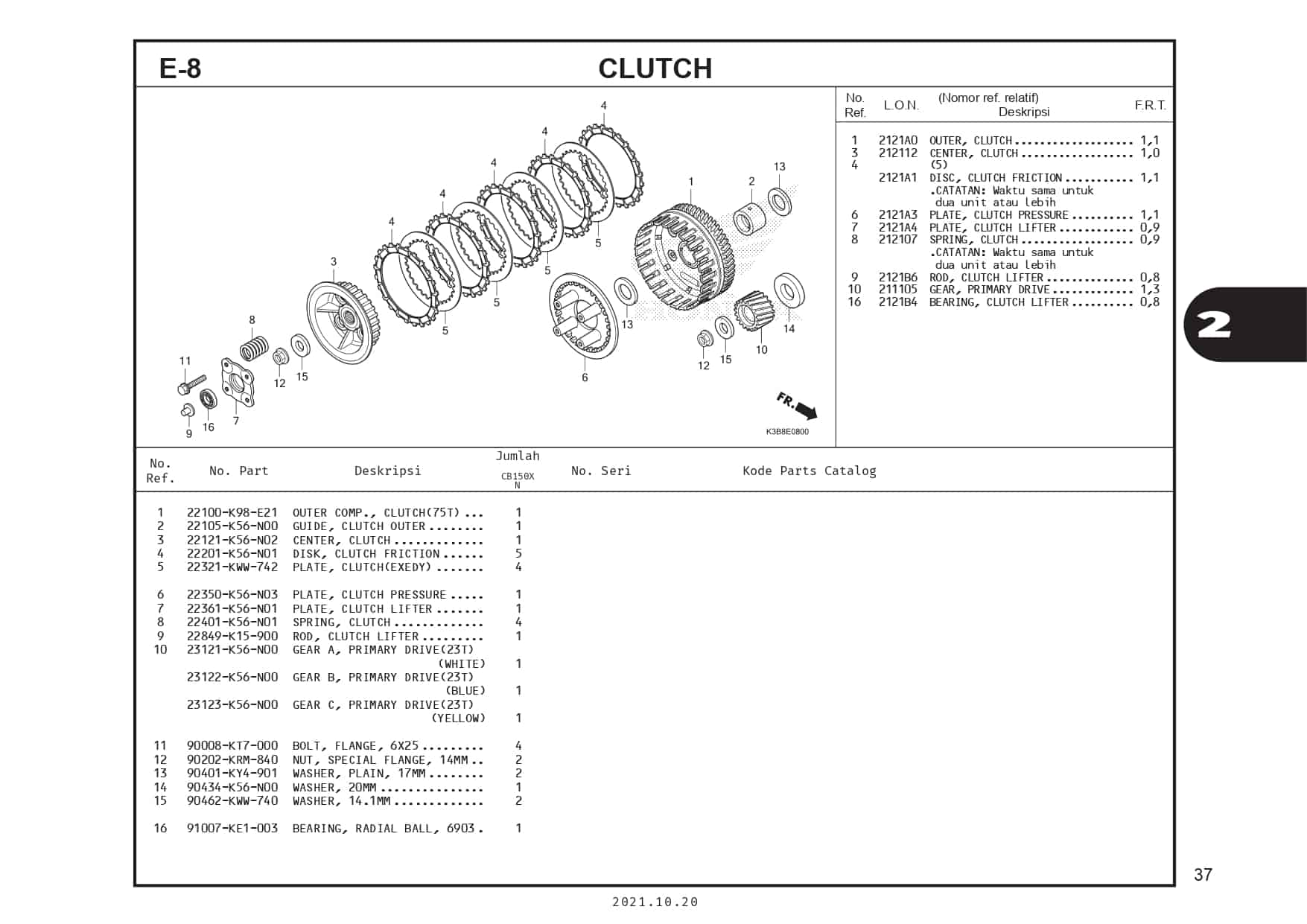

E8 – Clutch – Katalog Honda CB150X

#	Informasi Produk	Visual
1	OUTER COMP,CLUTCH Part Number : `22100K98E21`
2	GUIDE, CLUTCH OUTER Part Number : `22105K56N00`
3	CENTER,CLUTCH Part Number : `22121K56N02`
4	DISK CLUTCH FRICTION Part Number : `22201K56N01`
5	PLATE, CLUTCH Part Number : `22321KWW742`
6	PLATE,CLUTCH PRESSURE Part Number : `22350K56N03`
7	PLATE CLUTCH LIFTER Part Number : `22361K56N01`
8	SPRING CLUTCH Part Number : `22401K56N01`
9	ROD,CLUTCH LIFTER Part Number : `22849K15900`
10	GEAR A PRIMARY DRIVE(23T) Part Number : `23121K56N00`
10	GEAR B PRIMARY DRIVE(23T) Part Number : `23122K56N00`
10	GEAR C PRIMARY DRIVE(23T) Part Number : `23123K56N00`
11	BOLT,FLANGE 6X25 Part Number : `90008KT7000`
12	NUT SPECIAL FLANGE 14MM Part Number : `90202KRM840`
13	WASHER,PLAIN 17MM Part Number : `90401KY4901`
14	WASHER, 20MM Part Number : `90434K56N00`
15	WASHER 14MM Part Number : `90462KWW740`
16	BRG,BALL RADIAL 6903 Part Number : `91007KE1003`
