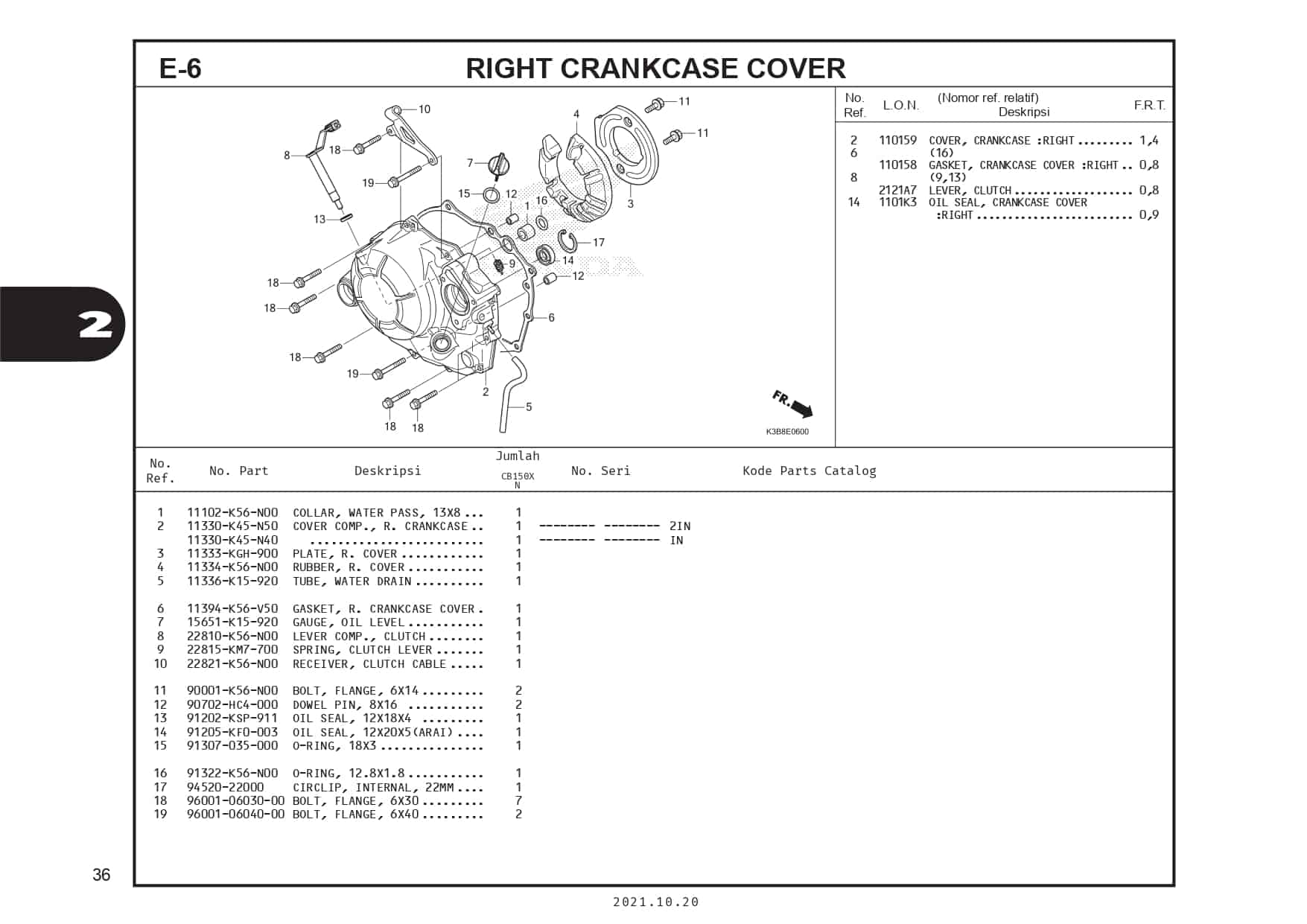

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COLLAR, WATER PASS, 13X8 | 11102K56N00 |
|
| 2 | COVER COMP R CRANKCASE | 11330K45N50 |
|
| 2 | COVER COMP R CRANKCASE | 11330K45N40 |
|
| 3 | PLATE,R COVER | 11333KGH900 |
|
| 4 | RUBBER, R. COVER | 11334K56N00 |
|
| 5 | TUBE, WATER DRAIN | 11336K15920 |
|
| 6 | GASKET,R CRANKCASE COVER | 11394K56V50 |
|
| 7 | GAUGE OIL LEVEL | 15651K15920 |
|
| 8 | LEVER COMP CLUTCH | 22810K56N00 |
|
| 9 | SPRING,CLUTCH | 22815KM7700 |
|
| 10 | RECEIVER, CLUTCH CABLE | 22821K56N00 |
|
| 11 | BOLT, FLANGE, 6X14 | 90001K56N00 |
|
| 12 | PIN DOWEL 8X16 | 90702HC4000 |
|
| 13 | OIL SEAL,12X18X4 | 91202KSP911 |
|
| 14 | OIL SEAL,12X20X5 | 91205KF0003 |
|
| 15 | ORING, 18X3 | 91307035000 |
|
| 16 | ORING, 12.8X1.8 | 91322K56N00 |
|
| 17 | CIRCLIP IN 22 | 9452022000 |
|
| 18 | BOLT FLANGE 6X30 | 960010603000 |
|
| 19 | BOLT FLANGE 6X40 | 960010604000 |
|
