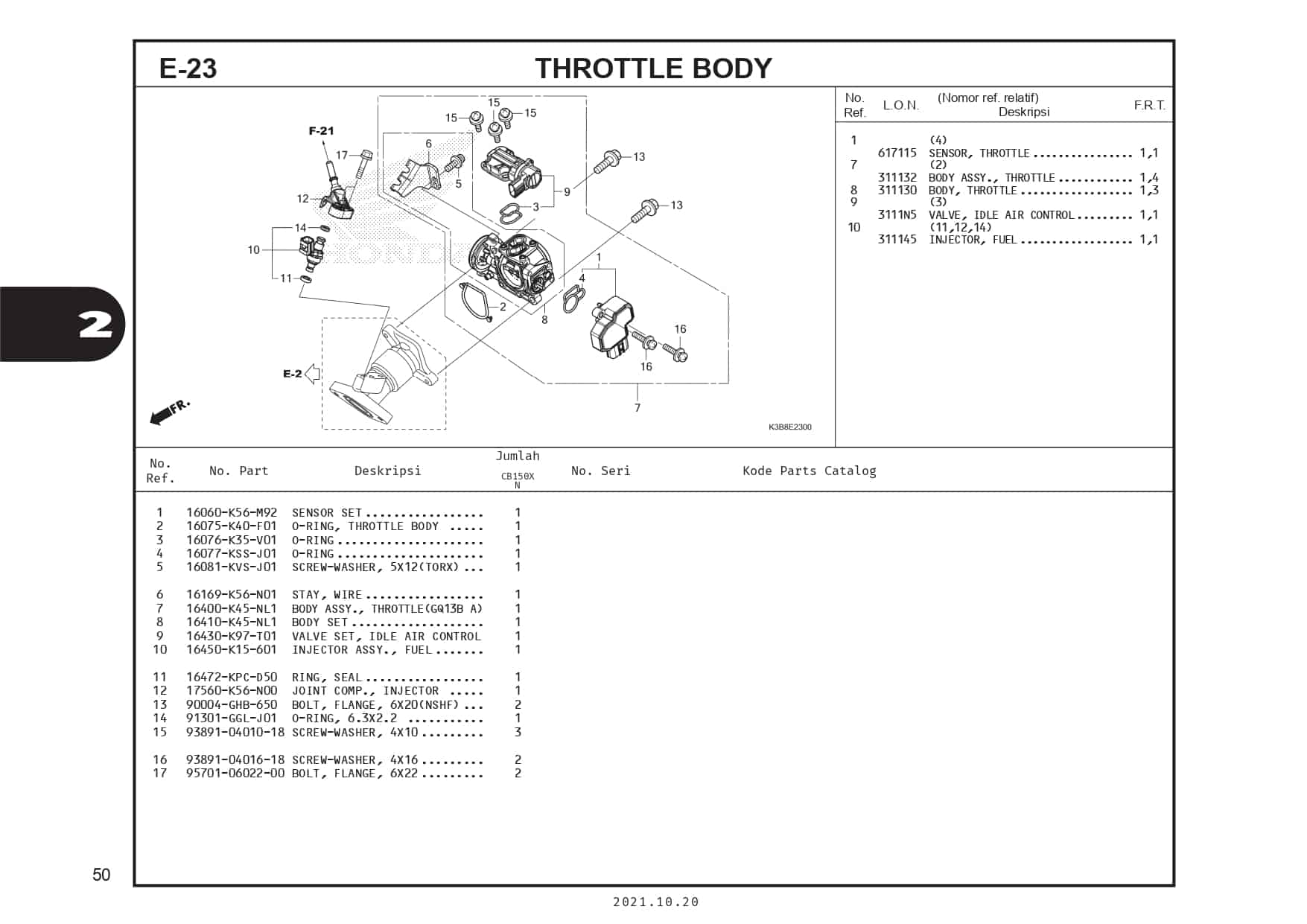

E23 – Throttle Body – Katalog Honda CB150X

#	Informasi Produk	Visual
1	SENSOR SET Part Number : `16060K56M92`
2	O-RING THROTTLE BODY Part Number : `16075K40F01`
3	O-RING Part Number : `16076K35V01`
4	O-RING Part Number : `16077KSSJ01`
5	SCREW-WASHER, 5X12(TORX) Part Number : `16081KVSJ01`
6	STAY WIRE Part Number : `16169K56N01`
7	THROTTLEBODY ASSY Part Number : `16400K45NL1`
8	BODY SET Part Number : `16410K45NL1`
9	IACV SET Part Number : `16430K97T01`
10	INJECTOR ASSY,FUEL Part Number : `16450K15601`
11	RING, SEAL Part Number : `16472KPCD50`
12	JOINT COMP INJECTOR Part Number : `17560K56N00`
13	BOLT FLANGE 6X20 Part Number : `90004GHB650`
14	O-RING, 6.3X2.2 Part Number : `91301GGLJ01`
15	SCREW-WASHER 4X10 Part Number : `938910401018`
16	SCREW WASHER 4X16 Part Number : `938910401618`
17	BOLT FLANGE 6X22 Part Number : `957010602200`
