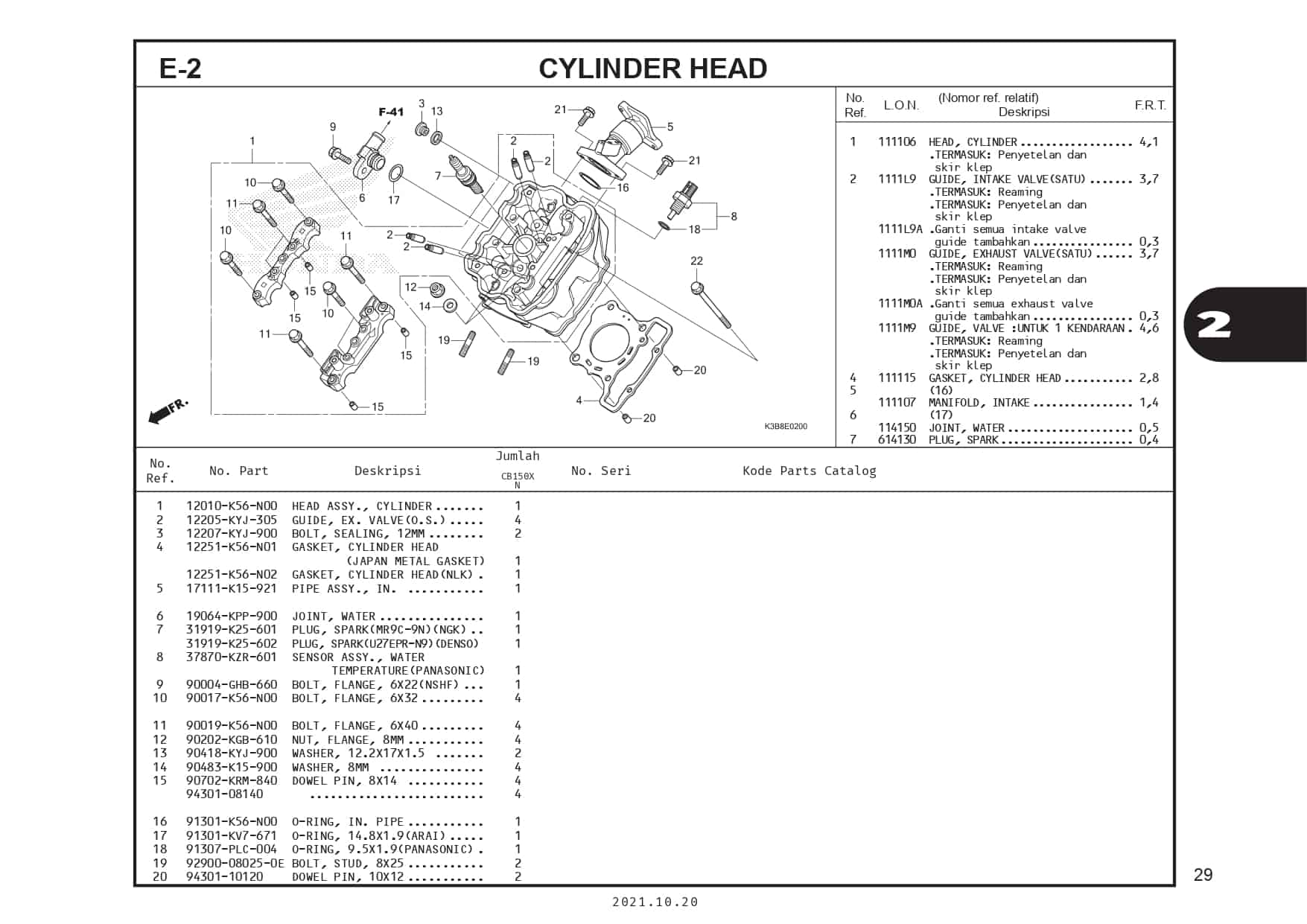

E2 – Cylinder Head – Katalog Honda CB150X

#	Informasi Produk	Visual
1	HEAD ASSY, CYLINDER Part Number : `12010K56N00`
2	GUIDE,EX VALVE(OV Part Number : `12205KYJ305`
3	BOLT,SEALING 12MM Part Number : `12207KYJ900`
4	GASKET CYLINDER HEAD(NLK) Part Number : `12251K56N02`
5	PIPE INLET ASSY Part Number : `17111K15921`
6	JOINT,WATER Part Number : `19064KPP900`
6	JOINT,WATER Part Number : `1906AK15900`
7	SPARK PLUG MR9C9N (NGK) Part Number : `31919K25601`
7	SPARK PLUG U27EPR-N9 (DS) Part Number : `31919K25602`
8	SENSOR ASSY., WATER TEMP Part Number : `37870KZR601`
9	BOLT,FLANGE,NSHF,6X22 Part Number : `90004GHB660`
10	BOLT FLANGE 6X32 Part Number : `90017K56N00`
11	BOLT FLANGE 6X40 Part Number : `90019K56N00`
12	NUT FLANGE,8MM Part Number : `90202KGB610`
13	WASHER,12.2X17X1.5 Part Number : `90418KYJ900`
14	WASHER 8MM Part Number : `90483K15900`

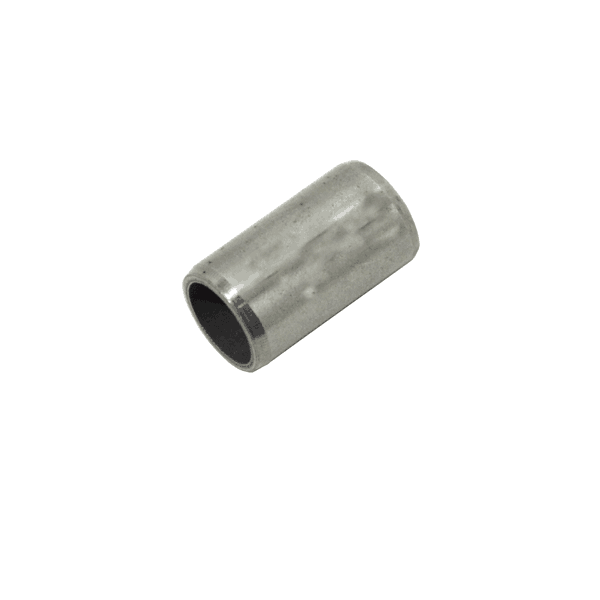

15	PIN DOWEL 8X14 Part Number : `90702KRM840`
15	PIN DOWEL 8X14 Part Number : `9430108140`
16	O-RING, IN. PIPE Part Number : `91301K56N00`
17	O-RING,14.8X1.9 Part Number : `91301KV7671`
18	O-RING, 9.5X1.9 Part Number : `91307PLC004`
19	BOLT STUD 8X25 Part Number : `92900080250E`
20	DOWEL PIN 10X12 Part Number : `9430110120`
21	BOLT FLANGE 6X22 Part Number : `957010602200`
22	BOLT FLANGE 6X115 Part Number : `957010611500`
