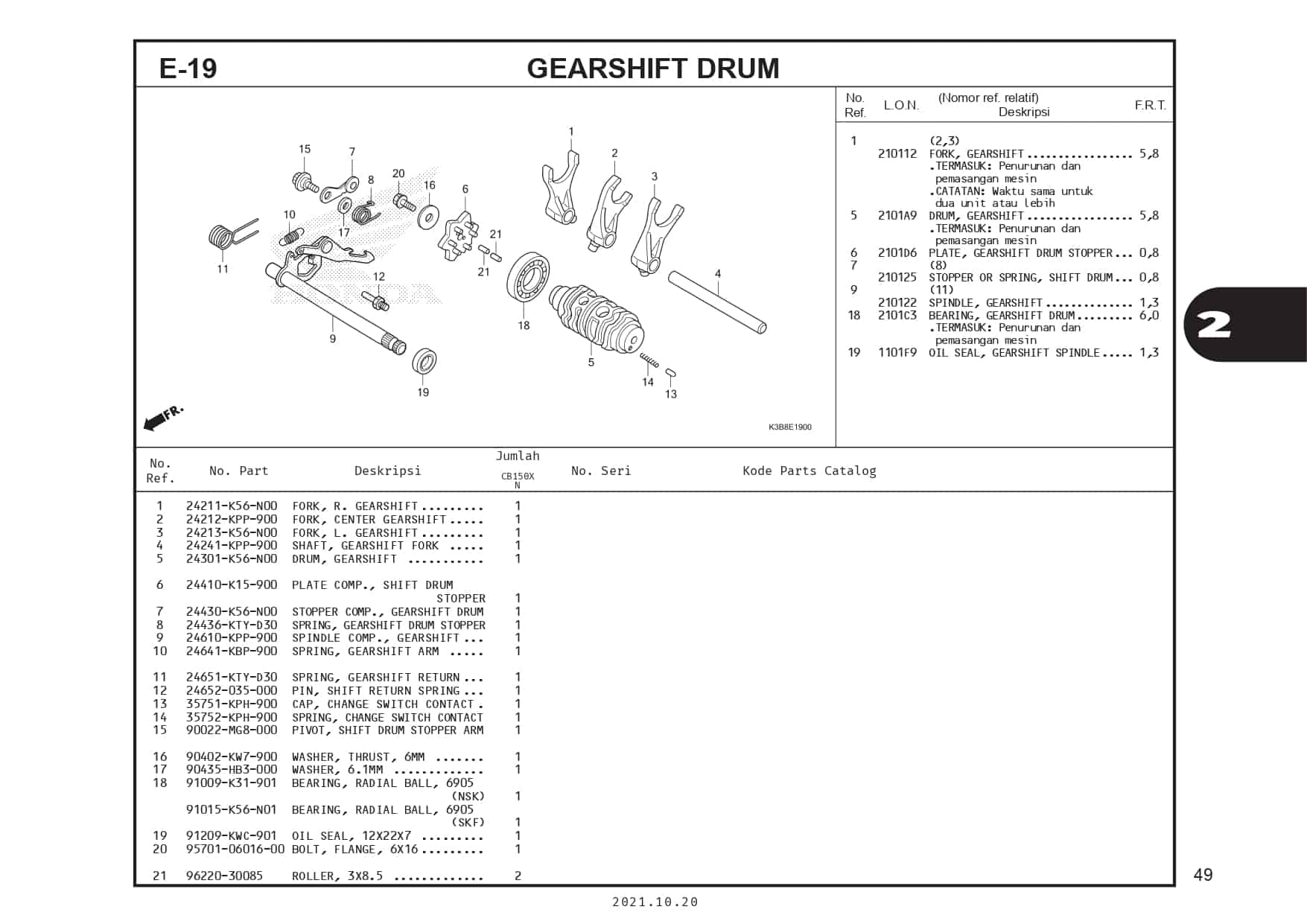

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK, R. GEARSHIFT | 24211K56N00 |
|
| 2 | FORK C,GEAR SHIFT | 24212KPP900 |
|
| 3 | FORK, L. GEARSHIFT | 24213K56N00 |
|
| 4 | SHAFT,GEAR SHIFT FORK | 24241KPP900 |
|
| 5 | DRUM, GEARSHIFT | 24301K56N00 |
|
| 6 | PLATE COMP,SHIFT DRUM STOPPER | 24410K15900 |
|
| 7 | STOPPER COMP GEAR SHIFT DRUM | 24430K56N00 |
|
| 8 | SPRING DRUM STOPPER | 24436KTYD30 |
|
| 9 | SPINDLE COMP,GEAR SHIFT | 24610KPP900 |
|
| 10 | SP.GRSHFT.ARM | 24641KBP900 |
|
| 11 | SPG,GEAR SHIFT RETURN | 24651KTYD30 |
|
| 12 | PIN SHIFT RETURN | 24652035000 |
|
| 13 | CAP CONTACT CHANGE SW | 35751KPH900 |
|
| 14 | SPRINGCONTACTCHANGESW | 35752KPH900 |
|
| 15 | PIVOT,SFT DRUM STOP.ARM | 90022MG8000 |
|
| 16 | WSHR.THRS,6MM | 90402KW7900 |
|
| 17 | WASHER 6.1MM | 90435HB3000 |
|
| 18 | BEARING RADIAL BALL 6905 | 91009K31901 |
|
| 18 | BEARING BALL 6905 | 91015K56N01 |
|
| 19 | OIL SEAL 12X22X7 | 91209KWC901 |
|
| 20 | BOLT FLANGE 6X16 | 957010601600 |
|
| 21 | ROLLER,3X8.5 | 9622030085 |
|
