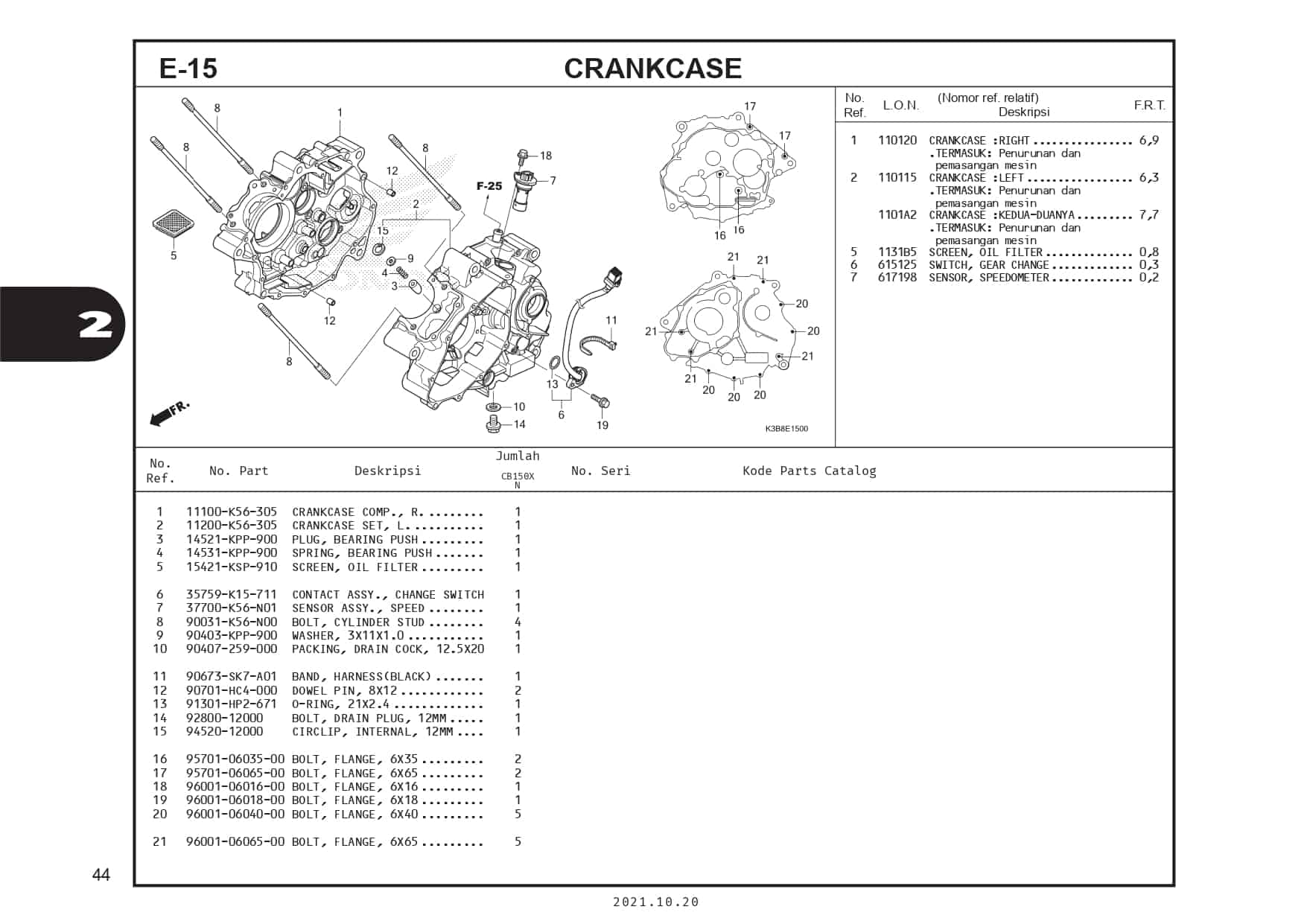

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CRANKCASE COMP., R. | 11100K56305 |
|
| 2 | CRANKCASE SET, L. | 11200K56305 | - |
| 3 | PLUG,BRG PUSH | 14521KPP900 |
|
| 4 | SPRING,BRG PUSH | 14531KPP900 |
|
| 5 | SCREEN OIL FILTER | 15421KSP910 |
|
| 6 | CONTACT ASSY,CHANGE SW | 35759K15711 |
|
| 7 | SENSOR ASSY SPEED | 37700K56N01 |
|
| 8 | BOLT CYLINDER STUD | 90031K56N00 |
|
| 9 | WASHER,3X11X1.0 | 90403KPP900 |
|
| 10 | PACKING COCK | 90407259000 |
|
| 11 | BAND, HARNESS(BLACK) | 90673SK7A01 |
|
| 12 | DOWEL PIN 8X12 | 90701HC4000 |
|
| 13 | O-RING 21X2.4 | 91301HP2671 |
|
| 14 | DRAINCOCK | 9280012000 |
|
| 15 | CIRCLIP 12MM | 9452012000 |
|
| 16 | BOLT FLANGE 6X35 | 957010603500 |
|
| 17 | BOLT FLANGE 6X65 | 957010606500 |
|
| 18 | BOLT FLANGE SH 6X16 | 960010601600 |
|
| 19 | BOLT FLANGE SH 6X18 | 960010601800 |
|
| 20 | BOLT FLANGE 6X40 | 960010604000 |
|
| 21 | BOLT FLANGE 6X65 | 960010606500 |
|
