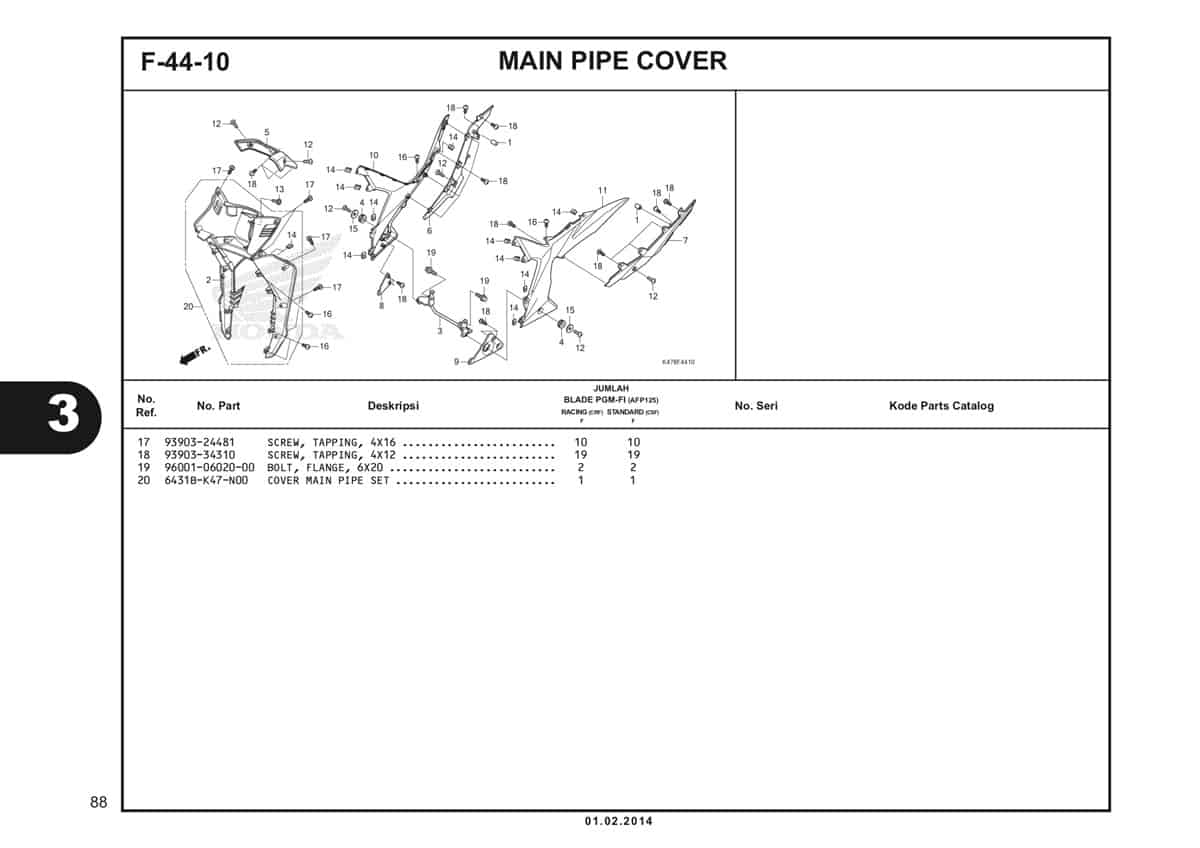

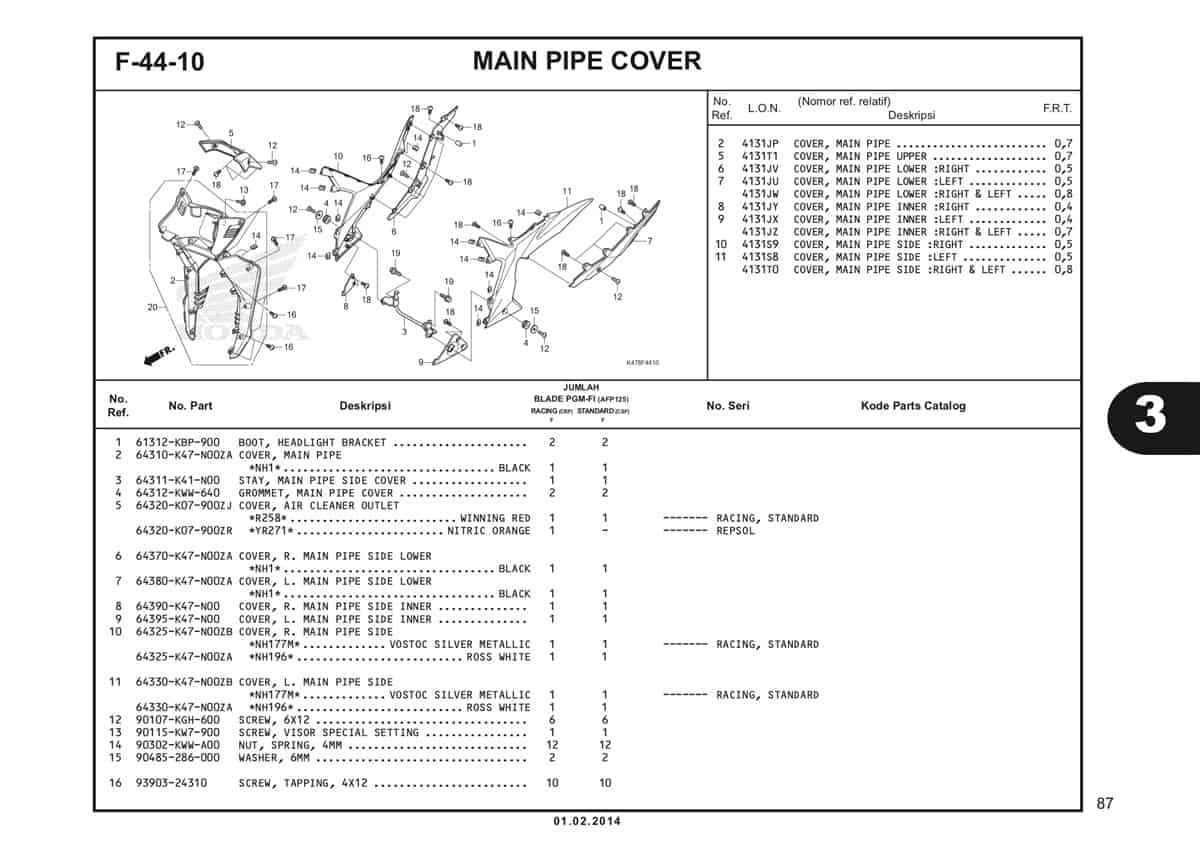

F44 – 10 – Main Pipe Cover – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Boot Headlight Part Number : `61312KBP900`
3	Stay Main Pipe Side Cover Part Number : `64311K41N00`
4	Grommet M/P Cover Part Number : `64312KWW640`
5	Cover A/C Outlet (WN RD) Part Number : `64320K07900ZJ`
5	Cover A/C Outlet (NI OR) Part Number : `64320K07900ZR`
6	Cover R M/P Side Lower Part Number : `64370K47N00ZA`
7	Cover L M/P Side Lower Part Number : `64380K47N00ZA`
8	Cover R M/P Side Inner Part Number : `64390K47N00`
9	Cover L M/P Side Inner Part Number : `64395K47N00`
10	Cover R M/P Side (VO SL MT) Part Number : `64325K47N00ZB`
10	Cover R M/P Side (RO WH) Part Number : `64325K47N00ZA`
11	Cover L M/P Side (VO SL MT) Part Number : `64330K47N00ZB`
11	Cover L M/P Side (RO WH) Part Number : `64330K47N00ZA`
12	Screw 6X12 Part Number : `90107KGH600`
13	Screw Visor Special Part Number : `90115KW7900`
14	Nut Spring 4MM Part Number : `90302KWWA00`
15	Washer 6MM Part Number : `90485286000`
16	Screw Tapping 4X12 Part Number : `9390324310`
17	Screw Tapping 4X16 Part Number : `9390324480`
18	Screw Tapping 4X12 Part Number : `9390334310`
19	Bolt Flange 6X20 Part Number : `960010602000`
20	Cover M/P Set Part Number : `6431BK47N00ZA`
