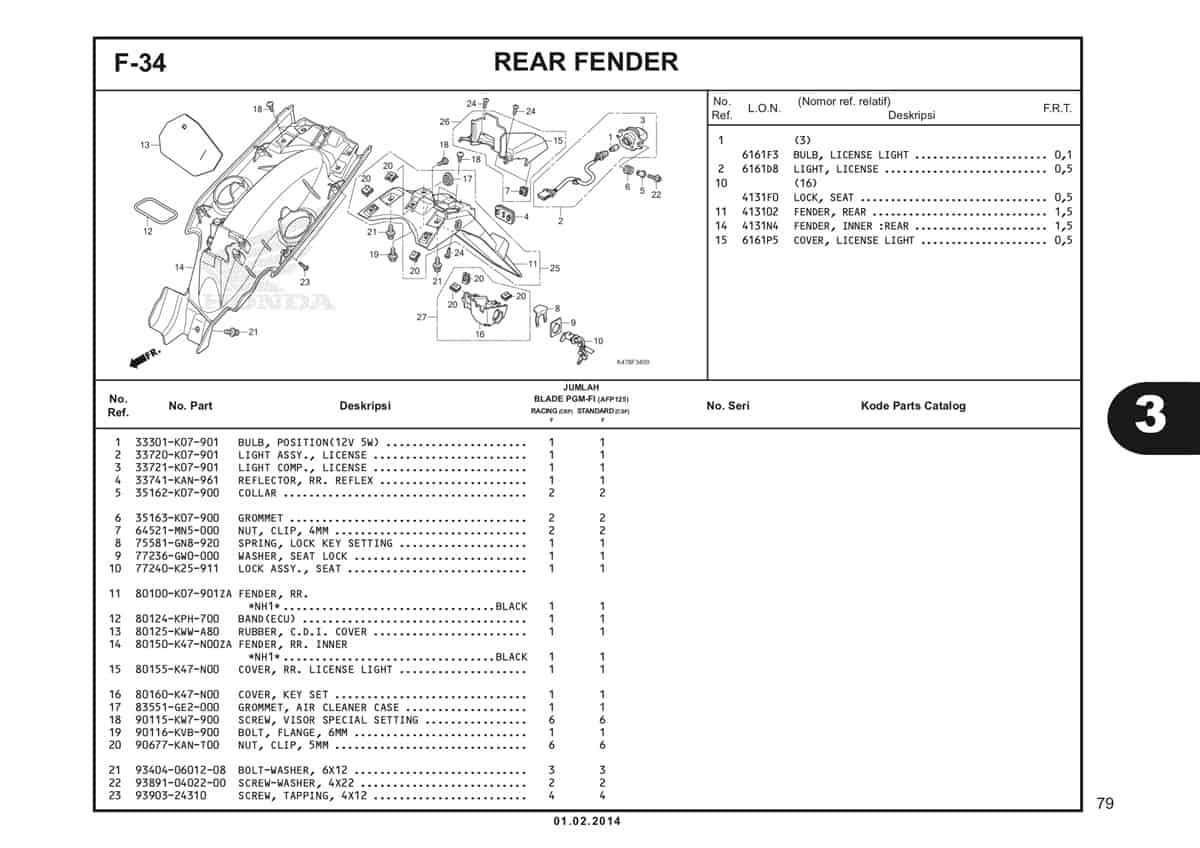

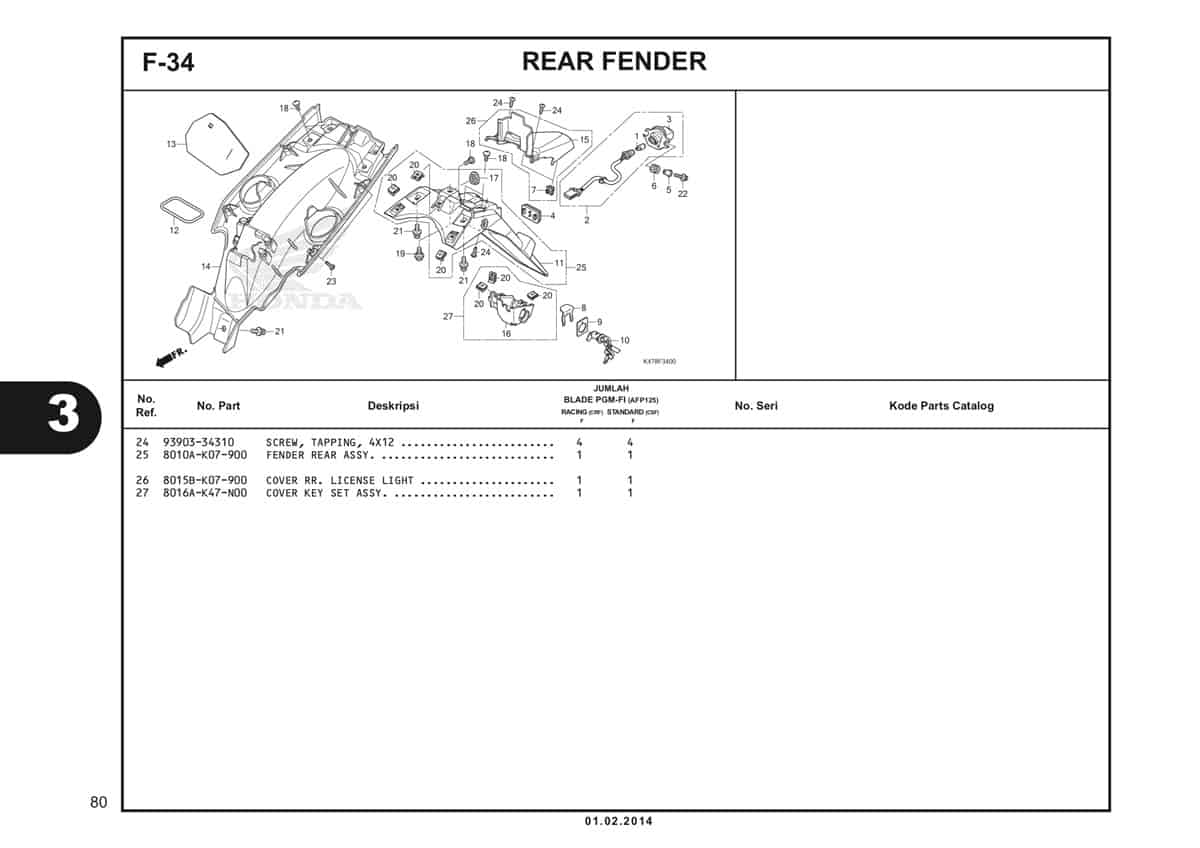

F34 – Rear Fender – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Bulb Posotion Part Number : `33301K07901`
2	Light Assy License Part Number : `33720K07901`
3	Light Comp License Part Number : `33721K07901`
4	Reflector RR Reflex Part Number : `33741KAN961`
5	Collar Part Number : `35162K07900`
6	Grommet Part Number : `35163K07900`
7	Nut Clip 4MM Part Number : `64521MN5000`
8	Spring Lock Key Part Number : `75581GN8920`
9	Washer Seat Lock Part Number : `77236GW0000`
10	Lock Assy Seat Part Number : `77240K25911`
12	Band ECU Part Number : `80124KPH700`
13	Rubber CDI Cover Part Number : `80125KWWA80`
14	Fender RR Inner Part Number : `80150K47N00ZA`
17	Grommet A/C Part Number : `83551GE2000`
18	Screw Visor Special Part Number : `90115KW7900`
19	Bolt Flange 6MM Part Number : `90116KVB900`
20	Nut Clip 5MM Part Number : `90677KANT00`
21	Bolt-Wash 6X12 Part Number : `934040601208`
22	SCREW WASHER 4X22 Part Number : `938910402200`
23	Screw Tapping 4X12 Part Number : `9390324310`
24	Screw Tapping 4X12 Part Number : `9390334310`
25	Fender RR Assy Part Number : `8010AK07900`
26	Cover R License Light Part Number : `8015BK07900`
27	Cover Key Set Assy Part Number : `8016AK47N00`
