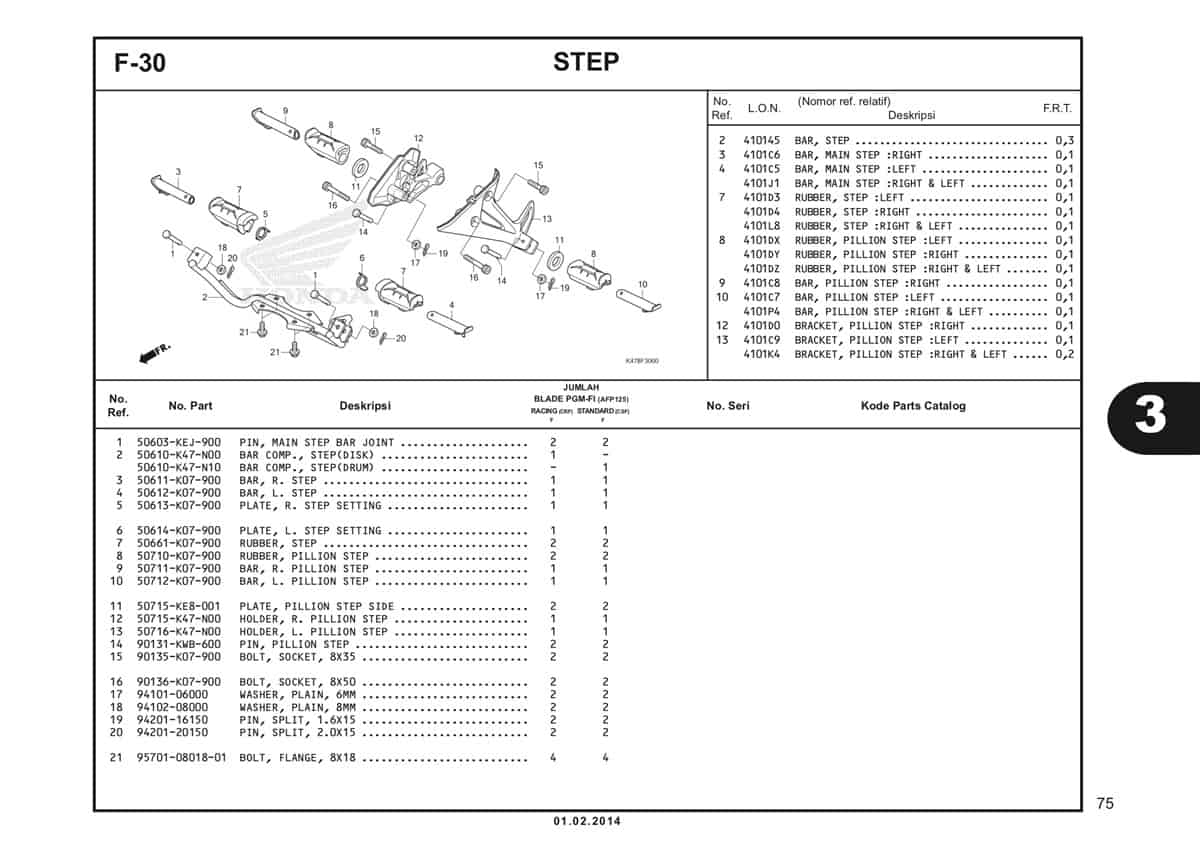

F30 – Step – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Pin Main Step Bar Joint Part Number : `50603KEJ900`
3	Bar R Pillion Step Part Number : `50611K07900`
4	Bar L Pillion Step Part Number : `50612K07900`
5	Plate R Step Setting Part Number : `50613K07900`
6	Plate L Step Setting Part Number : `50614K07900`
7	Rubber Step Part Number : `50661K07900`
8	Rubber Pillion Step Part Number : `50710K07900`
9	Bar R Pillion Step Part Number : `50711K07900`
10	Bar L Pillion Step Part Number : `50712K07900`
11	Plate Pillion Step Side Part Number : `50715KE8000`
12	Holder R Pillion Step Part Number : `50715K47N00`
13	Holder L Pillion Step Part Number : `50716K47N00`
14	Pin Pillion Stp Part Number : `90131KWB600`
15	Bolt Socket 8X35 Part Number : `90135K07900`
16	Bolt Socket 8X50 Part Number : `90136K07900`
17	Washer Plain 6MM Part Number : `9410106000`
18	Washer Plain 8MM Part Number : `9410208000`
19	Pin Cotter 16X15 Part Number : `9420116150`
20	Pin Cotter 2.0X15 Part Number : `9420120150`
21	Bolt Flange 8X18 Part Number : `957010801801`
