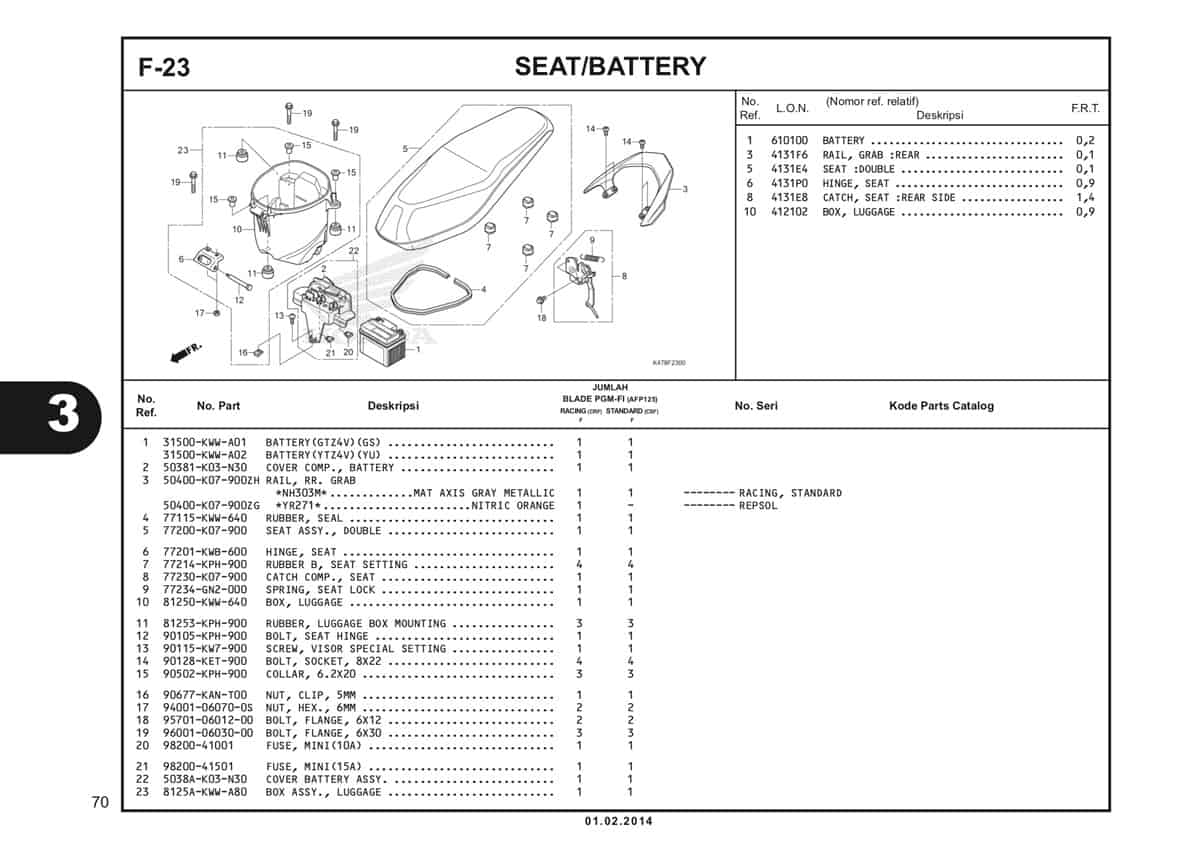

F23 – Seat/Battery – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Battery GTZ4V Part Number : `31500KWWA01`
1	Battery YTZ4-V Part Number : `31500KWWA02`
2	Cover Comp Battery Part Number : `50381K03N30`
3	Rail RR Grab Part Number : `50400K07900ZH`
3	Rail RR Grab Part Number : `50400K07900ZG`
4	Rubber Seal Part Number : `77115KWW640`
5	Seat Assy Double Part Number : `77200K07900`
6	Hinge Seat Part Number : `77201KWB600`
7	Rubber B Seat Set Part Number : `77214KPH900`
8	Seat Catch Comp Part Number : `77230K07900`
9	Spring Seat Lock Part Number : `77234GN2000`
10	Box Luggage Part Number : `81250KWW640`
11	Rubber Box Mount Part Number : `81253KPH900`
12	Bolt Seat Hinge Part Number : `90105KPH900`
13	Screw Visor Special Part Number : `90115KW7900`
14	Bolt Socket 8X22 Part Number : `90128KET900`
15	Collar 6.2X20 Part Number : `90502KPH900`
16	Nut Clip 5MM Part Number : `90677KANT00`
17	Nut Hex 6MM Part Number : `94001060700S`
18	Bolt Flange 6X12 Part Number : `957010601200`
19	Bolt Flange 6X30 Part Number : `960010603000`
20	Fuse Mini 10A Part Number : `9820041000`
21	Fuse Mini 15A Part Number : `9820041500`
22	Cover Battery Assy Part Number : `5038AK03N30`
23	Box Assy Luggage Part Number : `8125AKWWA80`
