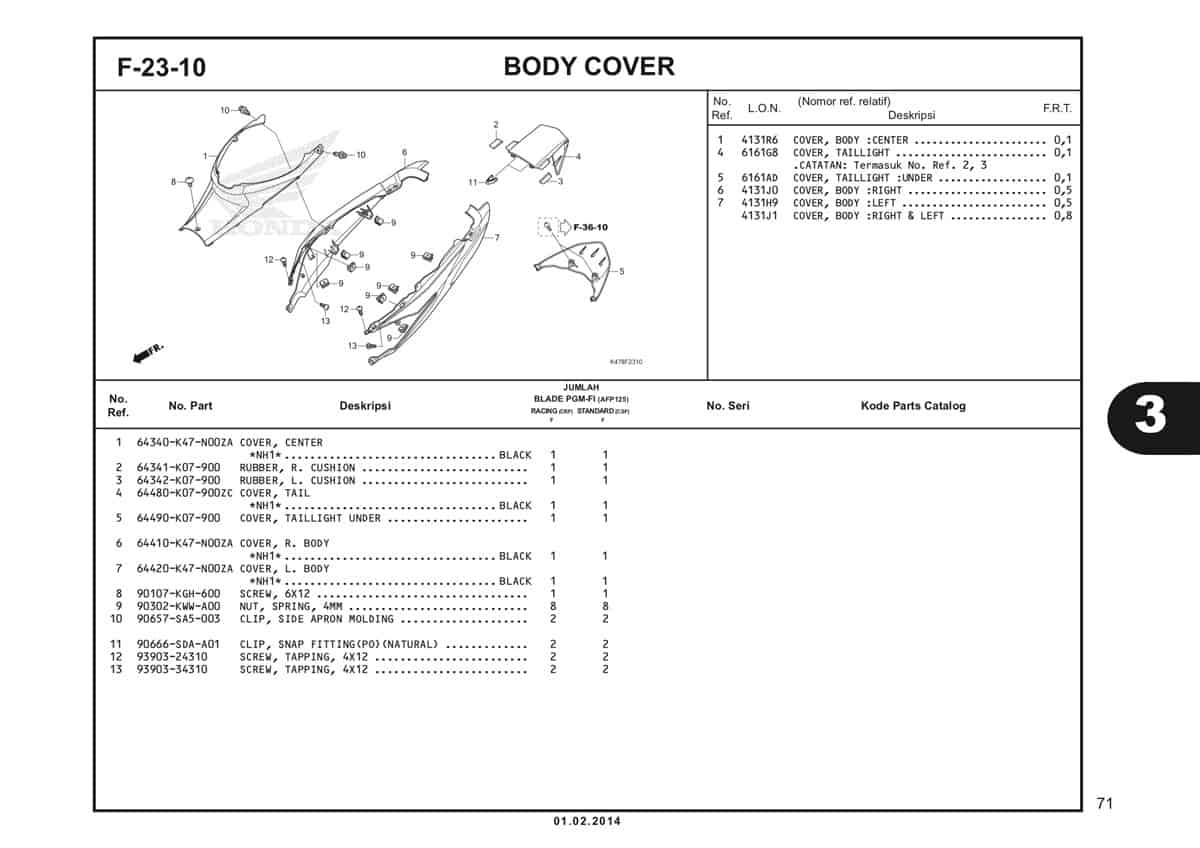

F23 – 10 – Body Cover – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Cover Center Part Number : `64340K47N00ZA`
2	Rubber R Cushion Part Number : `64341K07900`
3	Rubber L Cushion Part Number : `64342K07900`
4	Cover Tail (Blk) Part Number : `64480K07900ZC`
5	Cover Tail Light Under Part Number : `64490K07900`
6	Cover R Body (BLK) Part Number : `64410K47N00ZA`
7	Cover L Body (BLK) Part Number : `64420K47N00ZA`
8	Screw 6X12 Part Number : `90107KGH600`
9	Nut Spring 4MM Part Number : `90302KWWA00`
10	Clip Side Apron Molding Part Number : `90657SA5003`
11	Clip Snap Fit (P0) Part Number : `90666SDAA01`
12	Screw Tapping 4X12 Part Number : `9390324310`
13	Screw Tapping 4X12 Part Number : `9390334310`
