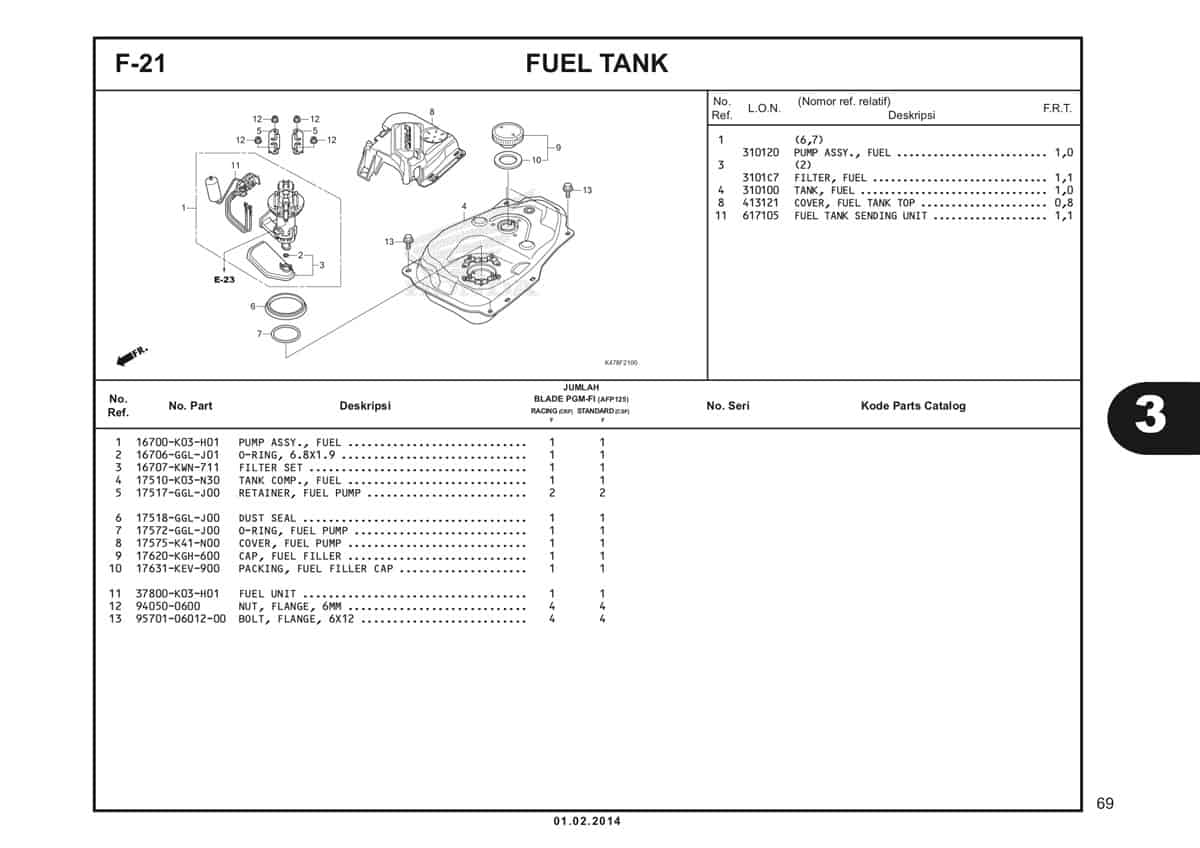

F21 – Fuel Tank – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Unit Assy Fuel Pump Part Number : `16700K03H01`
2	O-Ring 6.8X1.9 Part Number : `16706GGLJ01`
3	Filter Set Part Number : `16707KWN711`
4	Tank Comp Fuel Part Number : `17510K03N30`
5	Retainer Fuel Pump Part Number : `17517GGLJ00`
6	Dust Seal Part Number : `17518GGLJ00`
7	O-Ring Fuel Pump Part Number : `17572GGLJ00`
8	Cover Fuel Pump Part Number : `17575K41N00`
9	Cap Fuel Filler Part Number : `17620KGH600`
10	Packing Fuel Filler Cap Part Number : `17631KEV900`
11	Fuel Unit Part Number : `37800K03H01`
12	Nut Flange 6MM Part Number : `9405006000`
13	Bolt Flange 6X12 Part Number : `957010601200`
