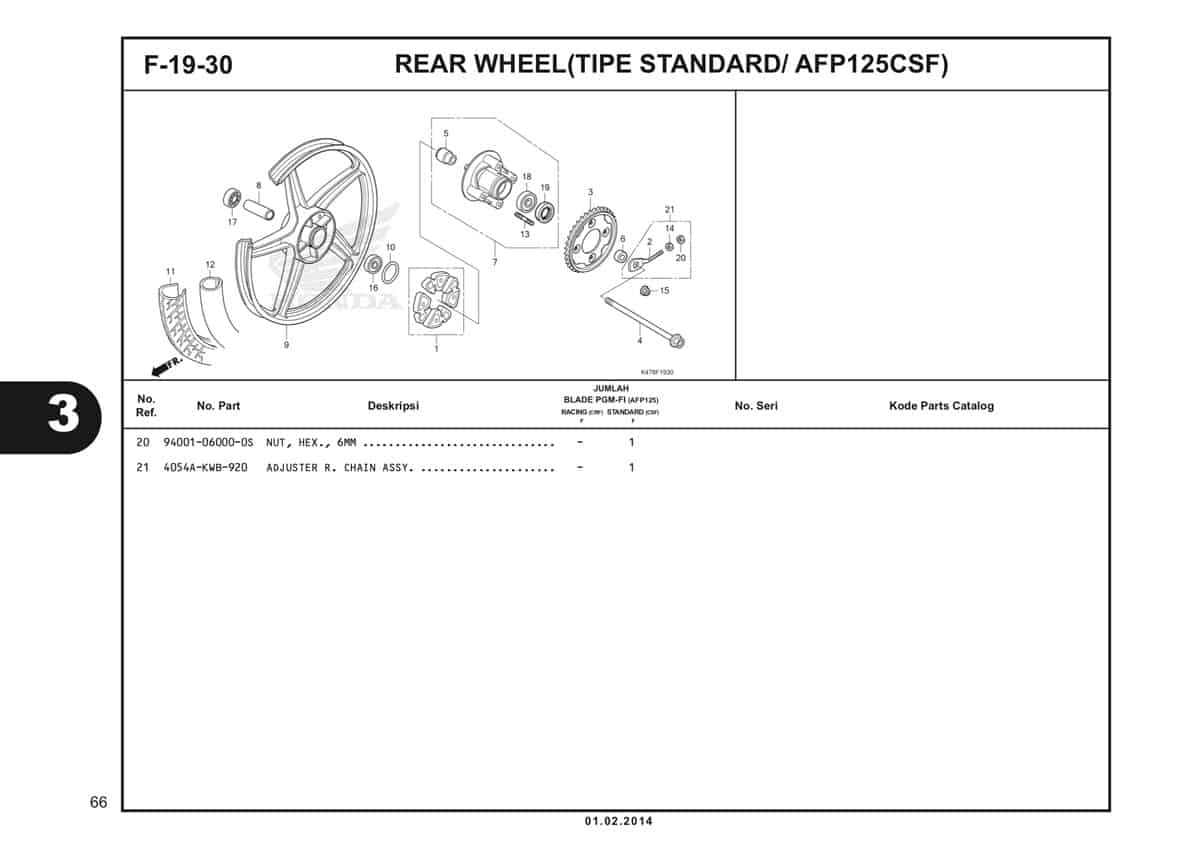

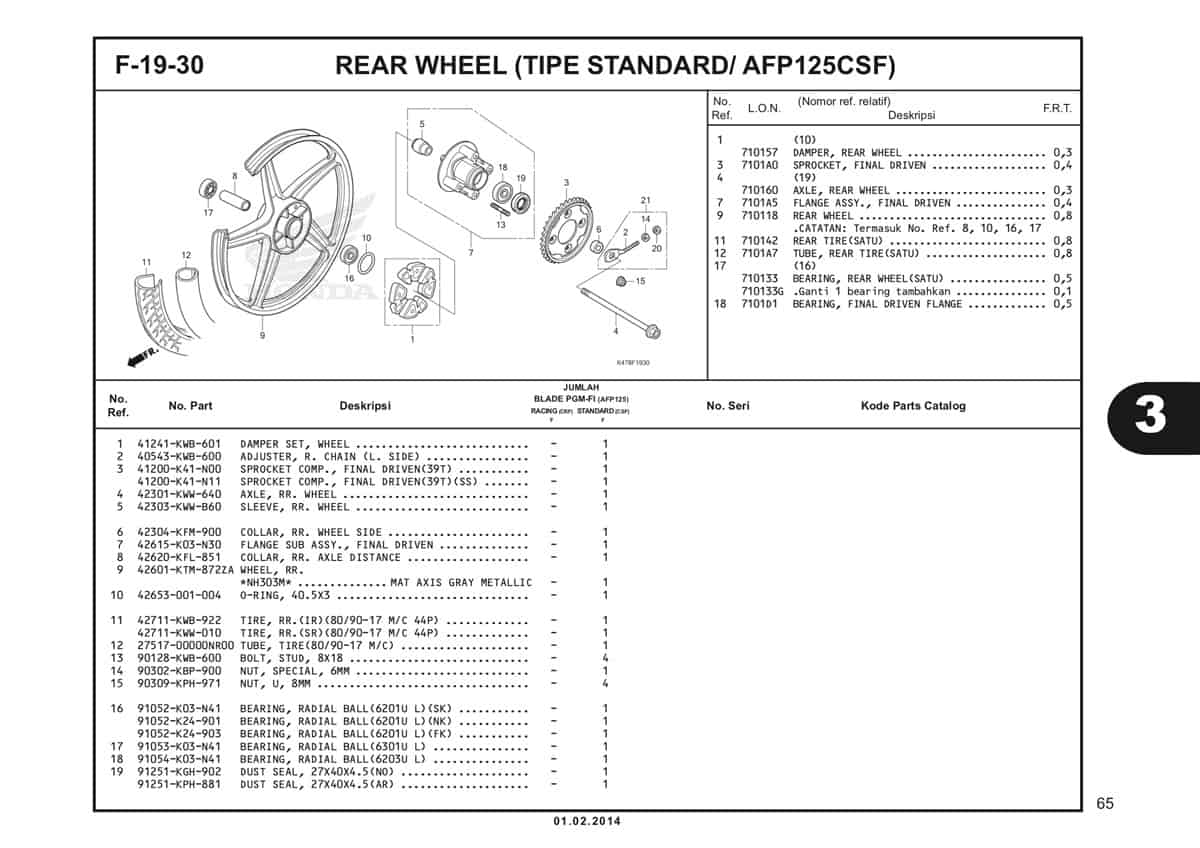

F19 – 30 – Rear Wheel – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Damper Wheel Set Part Number : `41241KWB601`
1	Damper Wheel Set Part Number : `06410KWB600`
2	Adjuster R Chain Part Number : `40543KWB600`
3	Sprocket Comp Final Driven (39T) Part Number : `41200K41N00`
3	Sprocket Comp Final Driven (39T) Part Number : `41200K41N11`
4	Axle RR Wheel Part Number : `42301KWW640`
5	Sleeve RR Wheel Part Number : `42303KWWB60`
6	Collar RR Wheel Side Part Number : `42304KFM900`
7	Flange Sub Assy F Panel Part Number : `42615K03N30`
8	Collar RR Axle Distance Part Number : `42620KFL851`
9	Cast Wheel RR (MA AX GY) Part Number : `42601KTM872ZA`
10	O-Ring 40.5X3 Part Number : `42653001004`
11	Tire RR (80/90-17 NR78Y) Part Number : `42711KWB922`
11	Tire RR (80/90-17 FT138) Part Number : `42711KWW010`
11	Tire RR (80/90-17 FT138) Part Number : `42711KWW010TB`
12	Tube Tire (2.75-17) Part Number : `2751700000NR00`
13	Bolt Stud 8X18 Part Number : `90128KWB600`
14	Nut Special 6MM Part Number : `90302KBP900`
15	Nut U 8MM Part Number : `90309KPH971`
16	Bearing Radial Ball 6201U L Part Number : `91052K03N41`
16	Bearing Radial Ball 6201U L Part Number : `91052K24901`
16	Bearing Radial Ball 6201U L Part Number : `91052K24903`
17	Bearing Radial Ball 6301U L Part Number : `91053K03N41`
18	Bearing Radial Ball 6203U L Part Number : `91054K03N41`
19	Dust Seal 27X40X4.5 Part Number : `91251KGH902`
19	Dust Seal 27X40X4.5 Part Number : `91251KPH881`
20	Nut Hex 6MM Part Number : `94001060000S`
21	Adjuster R Chain Assy Part Number : `4054AKWB920`
