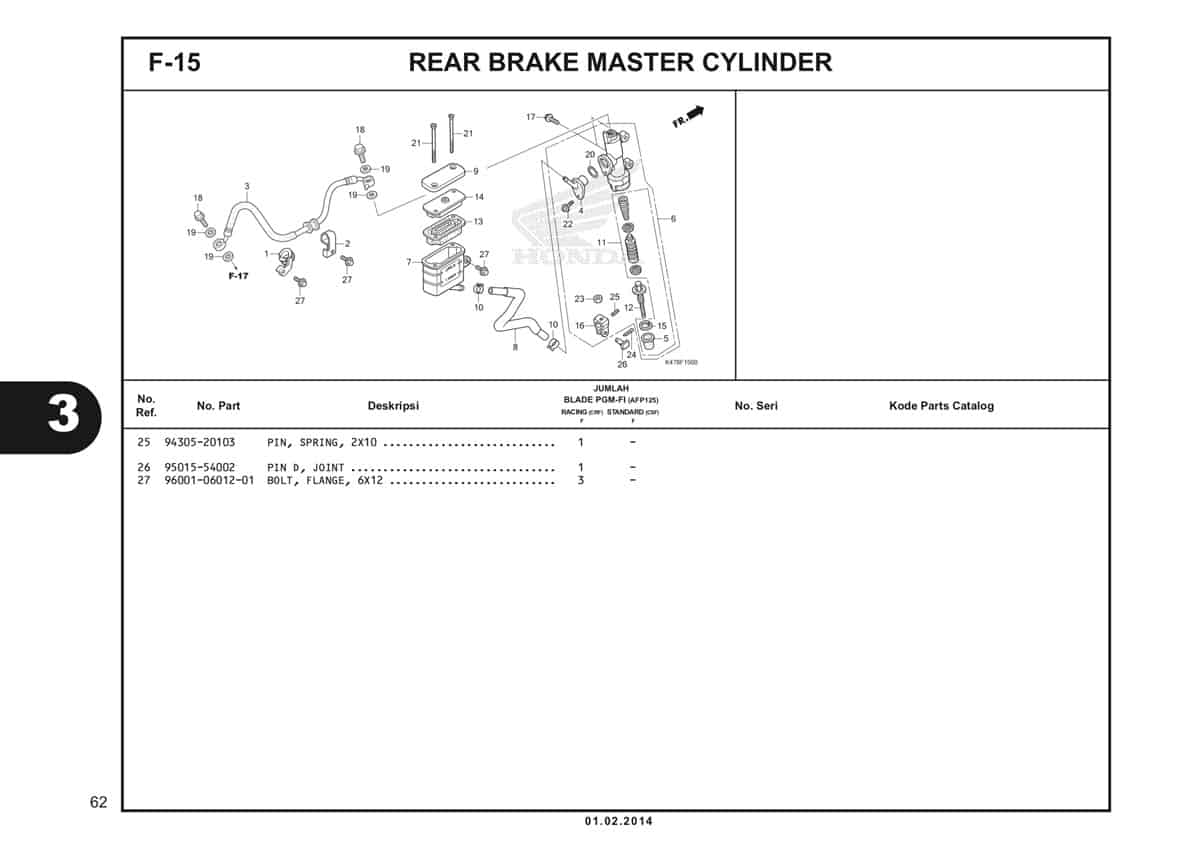

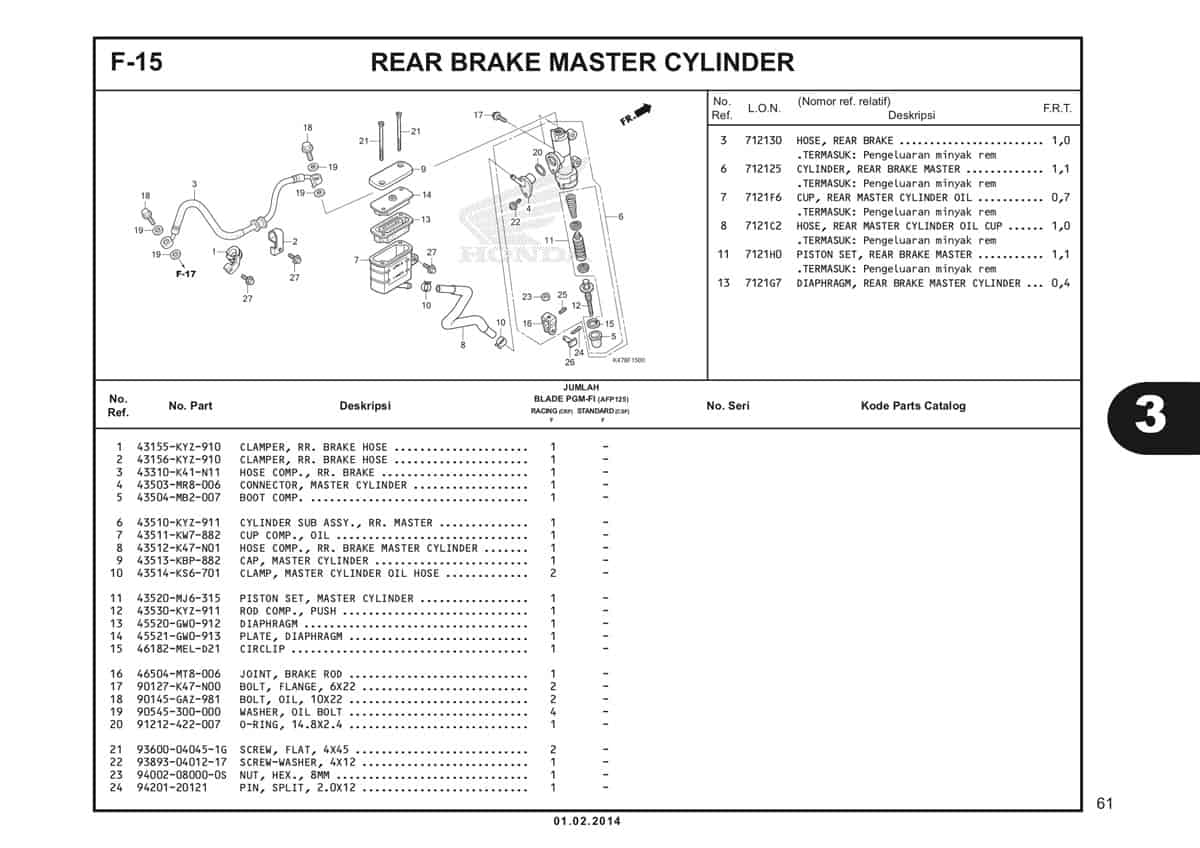

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clamper RR Brake Hose | 43155KYZ910 |
|
| 2 | Clamper RR Brake Hose | 43156KYZ910 |
|
| 3 | Hose Comp RR Brake | 43310K41N11 |
|
| 4 | Connector Master Cylinder | 43503MR8006 |
|
| 5 | Boot Comp | 43504MB2007 |
|
| 6 | Master Cylinder Sub Assy RR | 43510KYZ911 |
|
| 7 | Oil Cup Comp | 43511KW7882 |
|
| 8 | Hose Comp RR M/C | 43512K47N01 |
|
| 9 | Cap Master Cylinder | 43513KBP881 |
|
| 10 | Clamper Cylinder Oil | 43514KS6701 |
|
| 11 | Piston Cylinder | 43520MJ6315 |
|
| 12 | Rod Comp Push | 43530KYZ911 |
|
| 13 | Daphragm | 45520GW0911 |
|
| 14 | Plate Diaphragm | 45521GW0913 |
|
| 15 | Circlip Main Cylinder | 46182MELD21 |
|
| 16 | Joint Brake Rod | 46504MT8006 |
|
| 17 | Bolt Flange 6X22 | 90127K47N00 |
|
| 18 | Bolt Oil 10X22 | 90145GAZ981 |
|
| 19 | Washer Oil Bolt | 90545300000 |
|
| 20 | O-Ring | 91212422007 |
|
| 21 | Screw Flat 4X45 | 93600040451G |
|
| 22 | Screw Washer 4X12 | 938930401217 |
|
| 23 | Nut Hex 8MM | 94002080000S |
|
| 24 | Pin Split | 9420120120 |
|
| 25 | Pin Spring 2X10 | 9430520103 |
|
| 26 | Pin D Joint | 9501554000 |
|
| 27 | Bolt Flange 6X12 | 960010601200 |
|
