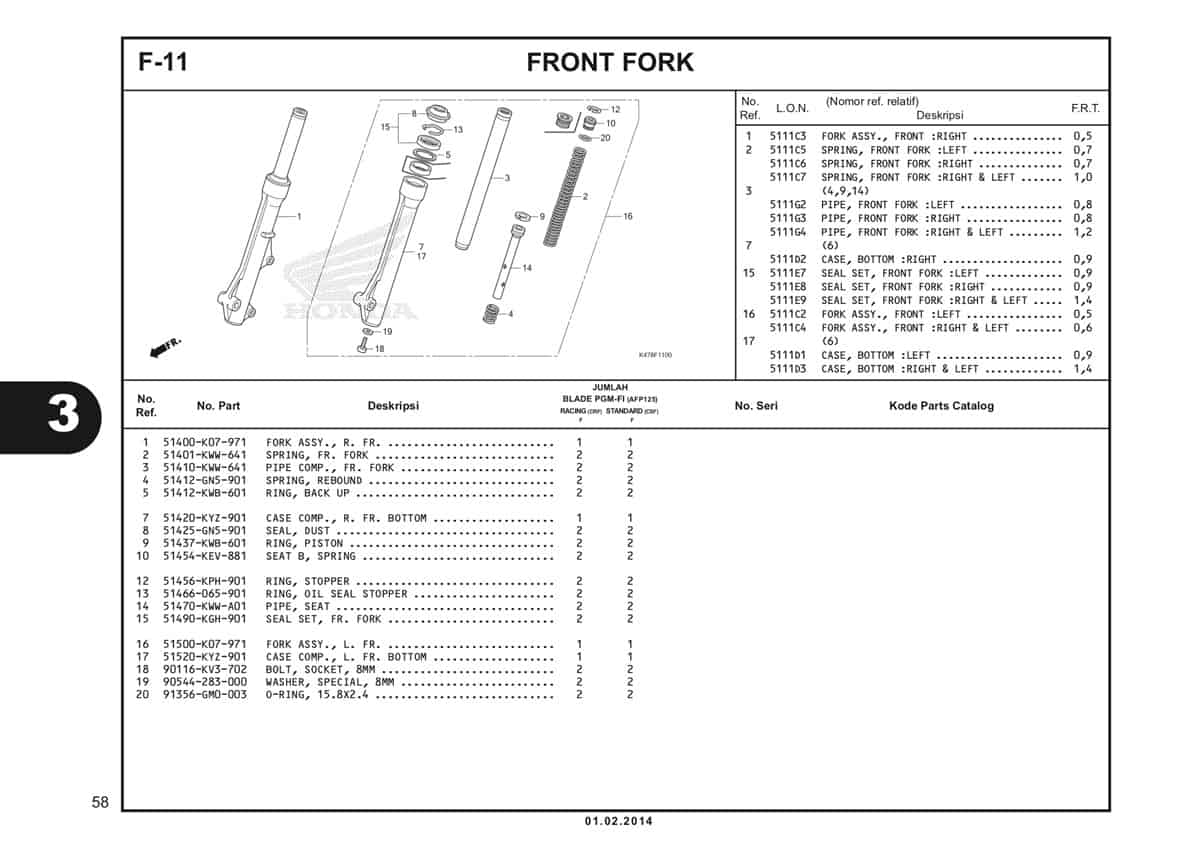

F11 – Front Fork – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Fork Assy R FR Part Number : `51400K07971`
2	Spring FR Fork Part Number : `51401KWW641`
3	Pipe Comp FR Fork Part Number : `51410KWW641`
4	Spring Rebound Part Number : `51412GN5901`
5	Ring Back Up Part Number : `51412KWB601`
7	Case Comp R FR Bottom Part Number : `51420KYZ901`
8	Dust Seal FR Fork Part Number : `51425GN5901`
9	Ring Piston Part Number : `51437KWB601`
10	Seat B Spring Part Number : `51454KEV881`
12	Ring Stopper Part Number : `51456KPH901`
13	Ring Oil Stopper Part Number : `51466065901`
14	Pipe Seat Part Number : `51470KWWA01`
15	Seal Set FR Fork Part Number : `51490KGH901`
16	Fork Assy L FR Part Number : `51500K07971`
17	Case Comp L FR Bottom Part Number : `51520KYZ901`
18	Bolt Socket 8MM Part Number : `90116KV3701`
19	Washer Special (8MM) Part Number : `90544283000`
20	O-Ring 15.8X2.4 Part Number : `91356GM0003`
