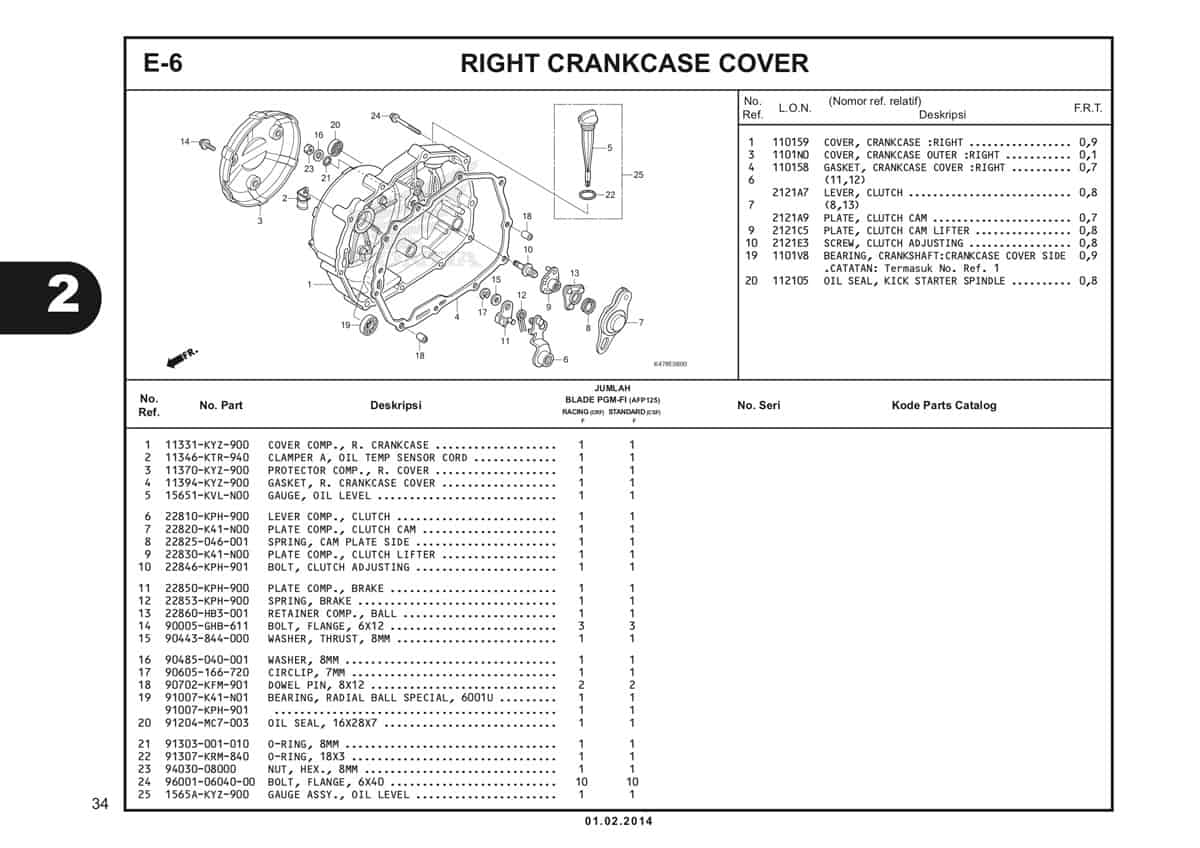

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cover Comp R Crank Case | 11331KYZ900 |
|
| 2 | Clamper A Oil Temp Sensor | 11346KTR940 |
|
| 3 | Protector Comp R Cover | 11370KYZ900 |
|
| 4 | Gasket R Crankcase Cover | 11394KYZ900 |
|
| 6 | Lever Comp Clutch | 22810KPH900 |
|
| 7 | Plate Comp Clutch Cam | 22820K41N00 |
|
| 8 | Spring Cam Plate Side | 22825046001 |
|
| 9 | Plate Comp Clutch Lifter | 22830K41N00 |
|
| 10 | Bolt Clutch Adjust | 22846KPH901 |
|
| 11 | Plate Comp Brake | 22850KPH900 |
|
| 12 | Spring Brake | 22853KPH900 |
|
| 13 | Retainer Comp Ball | 22860HB3001 |
|
| 14 | Bolt Flange 6X12 | 90005GHB611 |
|
| 15 | Washer Thrust 8MM | 90443844000 |
|
| 16 | Washer 8MM | 90485040001 |
|
| 17 | Circlip 7MM | 90605166720 |
|
| 18 | Pin Dowel 8X12 | 90702KFM900 |
|
| 19 | Bearing Radial Ball SPL 6001U | 91007K41N01 |
|
| 19 | Bearing Radial Ball SPL 6001U | 91007KPH901 |
|
| 20 | Oil Seal 16X28X7 | 91204MC7003 |
|
| 21 | O-Ring 8MM | 91303001010 |
|
| 22 | O-Ring18X3 | 91307KRM840 |
|
| 23 | Nut Hex 8MM | 9403008000 |
|
| 24 | Bolt Flange 6X40 | 960010604000 |
|
| 25 | Gauge Assy Oil Level | 1565AKYZ900 |
|
