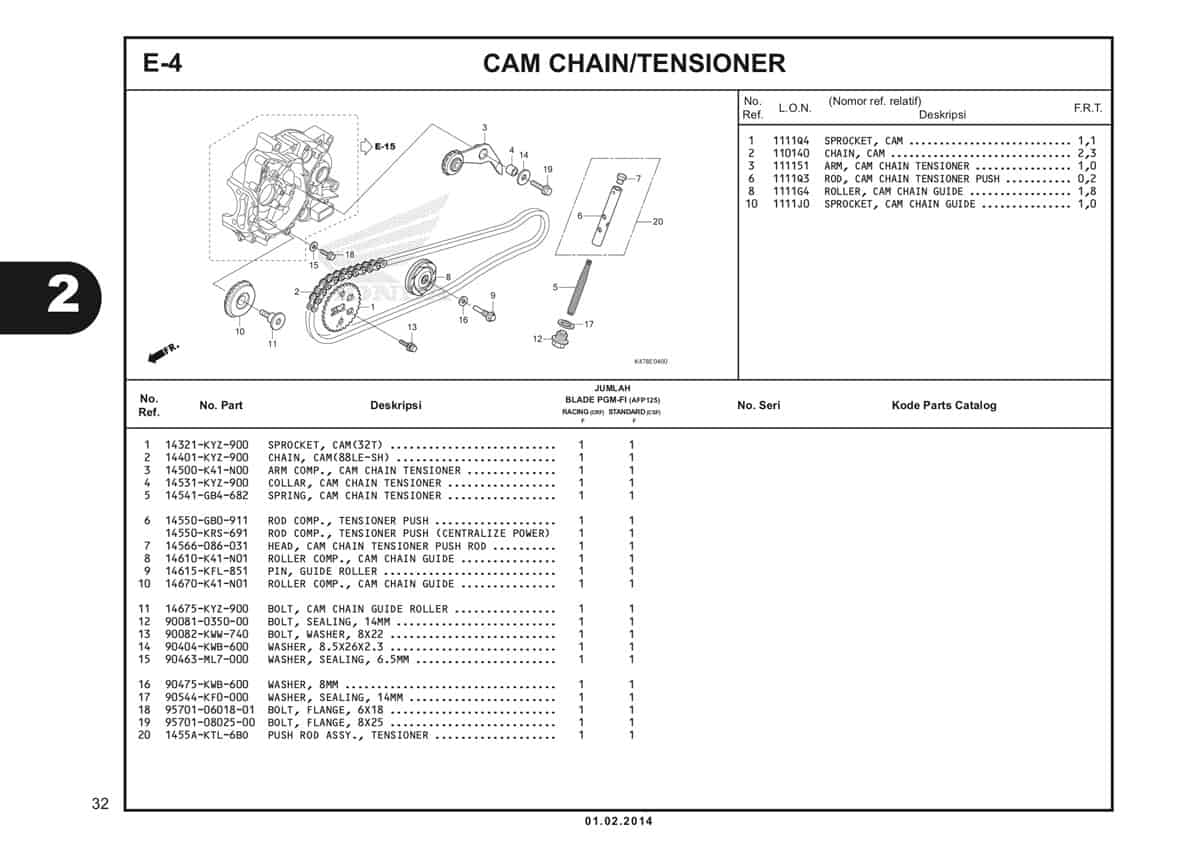

E4 – Cam Chain/Tensione – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Sprocket Cam 32T Part Number : `14321KYZ900`
2	Chain Cam 88L Part Number : `14401KYZ900`
3	Arm Comp Cam Chain Tensioner Part Number : `14500K41N00`
4	Collar Cam Chain Tensioner Part Number : `14531KYZ900`
5	Spring Tensioner Part Number : `14541GB4682`
6	Rod Tensioner Part Number : `14550GB0911`
6	Rod Comp Tensioner Push Part Number : `14550KRS691`
7	Head Tensioner Part Number : `14566086031`
8	Roller Cam Chain Guide Part Number : `14610K41N01`
8	Roller Cam Chain Guide Part Number : `14610KWB601`
9	Pin Guide Roller Part Number : `14615KFL851`
10	Roller Cam Chain Guide Part Number : `14670K41N01`
10	Roller Cam Chain Guide Part Number : `14670KYZ901`
11	Bolt Cam Chain Guide Roll Part Number : `14675KYZ900`
12	Bolt Sealing 14MM Part Number : `90081035000`
13	Bolt Washer 8X22 Part Number : `90082KWW740`
14	Washer 8.5X26X2.3 Part Number : `90404KWB600`
15	Washer Sealing 6.5MM Part Number : `90463ML7000`
16	Washer 8MM Part Number : `90475KWB600`
17	Washer Sealing 14MM Part Number : `90544KF0000`
18	Bolt Flange 6X18 Part Number : `957010601801`
19	Bolt Flange 8X25 Part Number : `957010802500`
20	Push Rod Assy Tensioner Part Number : `1455AKTL6B0`
