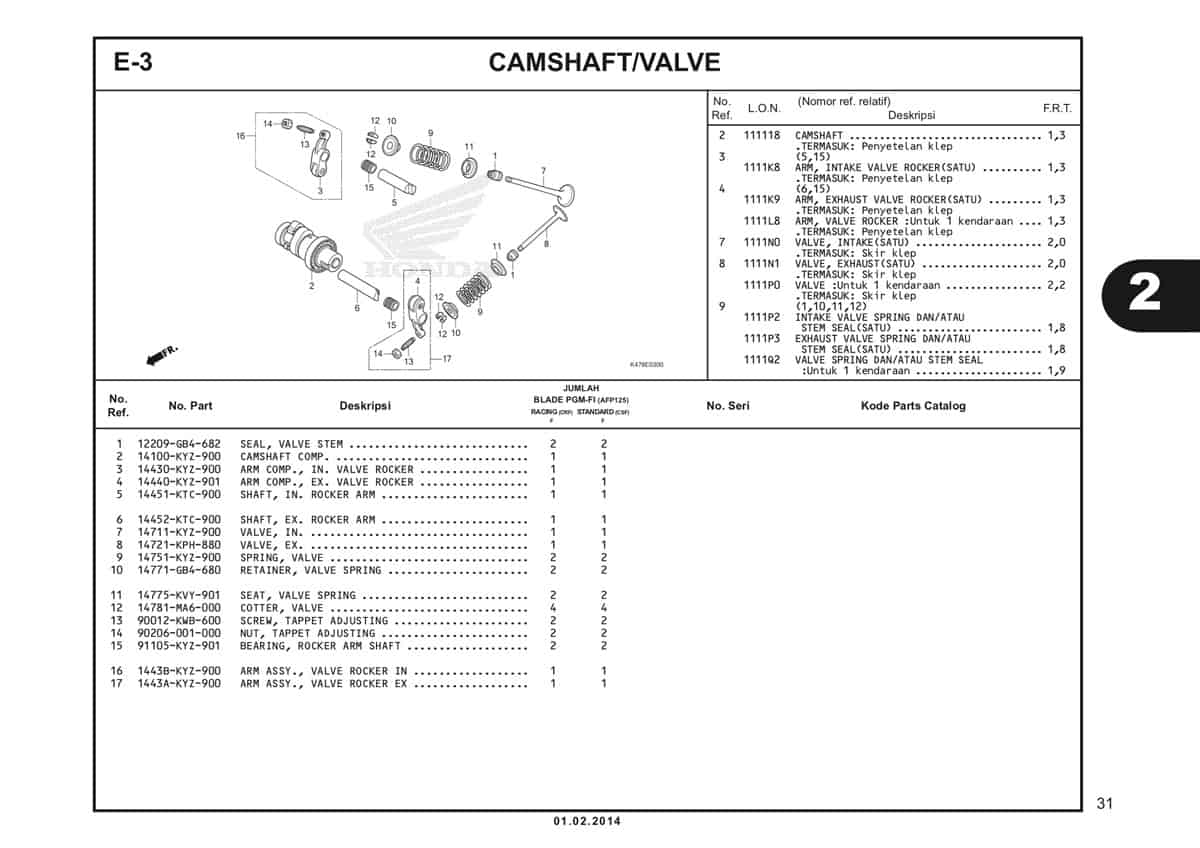

E3 – Camshaft/Valve – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Seal Valve Stem Part Number : `12209GB4682`
2	Camshaft Comp Part Number : `14100KYZ900`
3	Arm Comp In Valve Rocker Part Number : `14430KYZ900`
4	Arm Comp Ex Valve Rocker Part Number : `14440KYZ901`
5	Shaft In Rocker Arm Part Number : `14451KTC900`
6	Shaft Ex Rocker Arm Part Number : `14452KTC900`
7	Valve Inlet Part Number : `14711KYZ900`
8	Valve Exhaust Part Number : `14721KPH880`
9	Spring Valve Part Number : `14751KYZ900`
10	Retainer Part Number : `14771GB4680`
11	Seat Valve Spring Part Number : `14775KVY900`
12	Cotter Valve Part Number : `14781MA6000`
13	Screw Tappet Adjusting Part Number : `90012KWB600`
14	Nut Tappet Adjusting Part Number : `90206001000`
15	Bearing Needle 15MM Part Number : `91105KYZ901`
16	Arm Assy Valve Rocker In Part Number : `1443BKYZ900`
17	Arm Assy Valve Rocker Ex Part Number : `1443AKYZ900`
