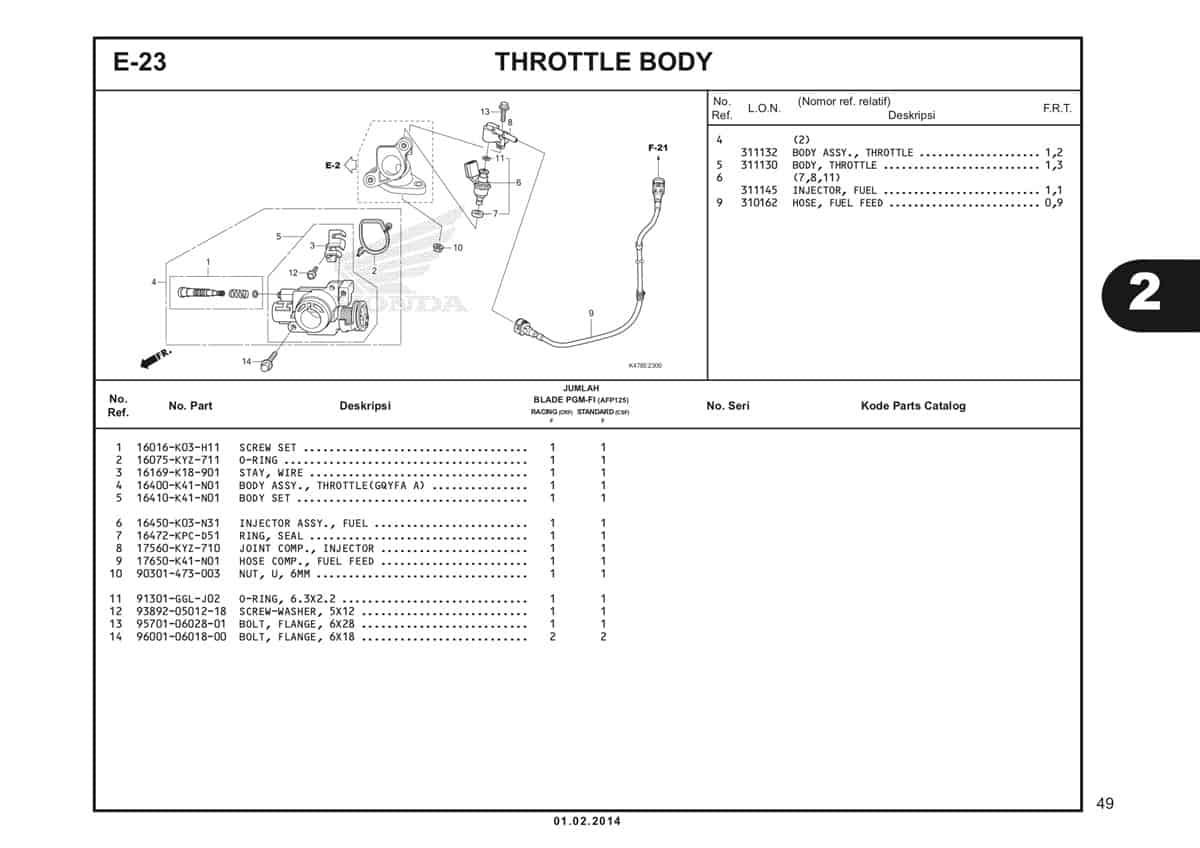

E23 – Throttle Body – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Screw Set Part Number : `16016K03H11`
2	O-Ring Throttle Body Part Number : `16075KYZ711`
3	Stay Wire Part Number : `16169K18901`
4	Throttle Body Assy Part Number : `16400K41N01`
5	Body Set Part Number : `16410K41N01`
6	Injector Assy Fuel Part Number : `16450K03N31`
7	Ring Seal Part Number : `16472KPCD51`
8	Joint Comp Injector Part Number : `17560KYZ710`
9	Hose Comp Fuel Feed Part Number : `17650K41N01`
10	Nut U 6MM Part Number : `90301473003`
11	O-Ring 6.3X2.2 Part Number : `91301GGLJ02`
12	Screw Washer 5X12 Part Number : `938920501218`
13	Bolt Flange 6X28 Part Number : `957010602800`
14	Bolt Flange 6X18 Part Number : `960010601800`
