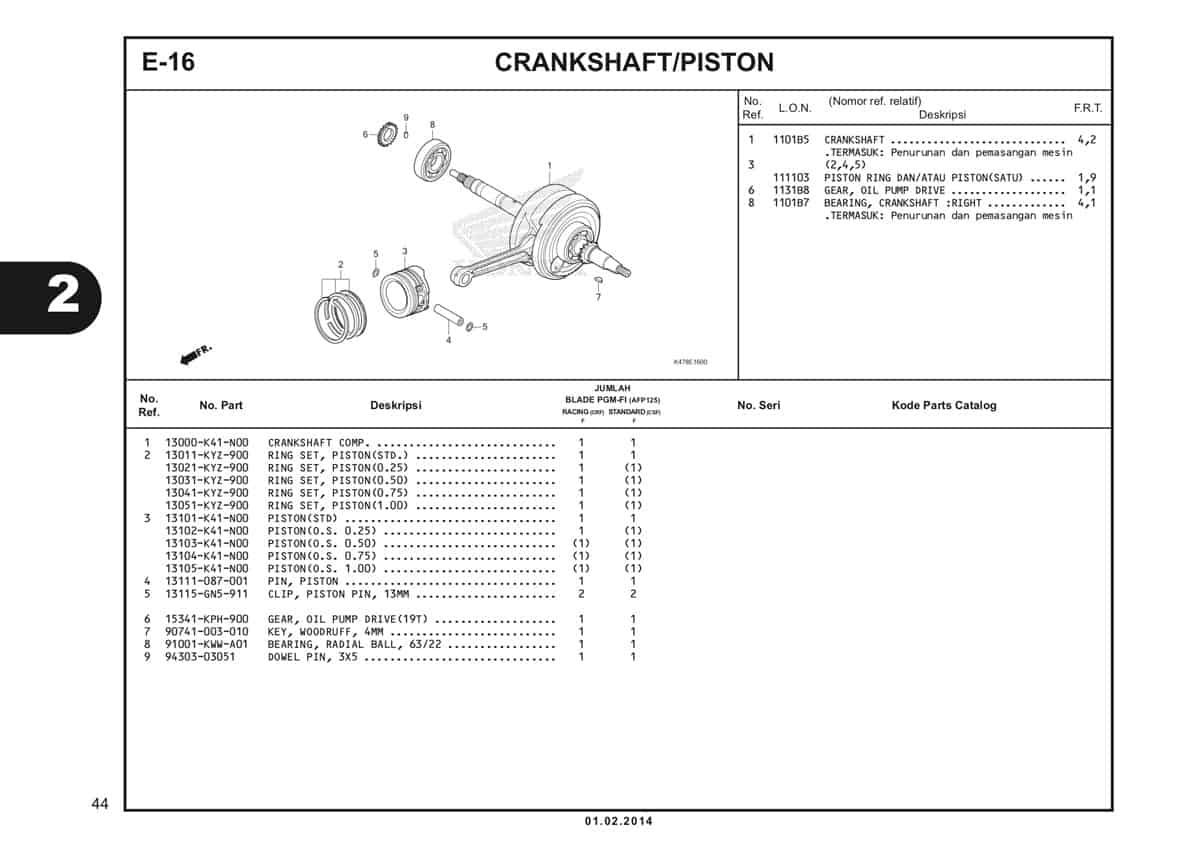

E16 – Camshaft/Piston – Katalog Honda Blade K47

#	Informasi Produk	Visual
1	Crankshaft Comp Part Number : `13000K41N00`
2	Ring Set Piston (STD) Part Number : `13011KYZ900`
2	Ring Set Piston (0,25) Part Number : `13021KYZ900`
2	RING SET, PISTON (0,50) Part Number : `13031KYZ900`
2	RING SET, PISTON (0,75) Part Number : `13041KYZ900`
2	RING SET, PISTON (1,00) Part Number : `13051KYZ900`
3	Piston (STD) Part Number : `13101K41N00`
3	Piston (0,25) Part Number : `13102K41N00`
3	Piston (0,50) Part Number : `13103K41N00`
3	Piston (0,75) Part Number : `13104K41N00`
3	Piston (1,00) Part Number : `13105K41N00`
4	Pin Piston Part Number : `13111087001`
5	Clip Piston Pin 13MM Part Number : `13115GN5910`
6	Gear Oil Pump Drive Part Number : `15341KPH900`
7	Key Wooddruff 4MM Part Number : `90741003010`
8	Bearing Radial Ball 63/2237 Part Number : `91001KWWA01`
9	Pin Dowel 3X5 Part Number : `9430303050`
