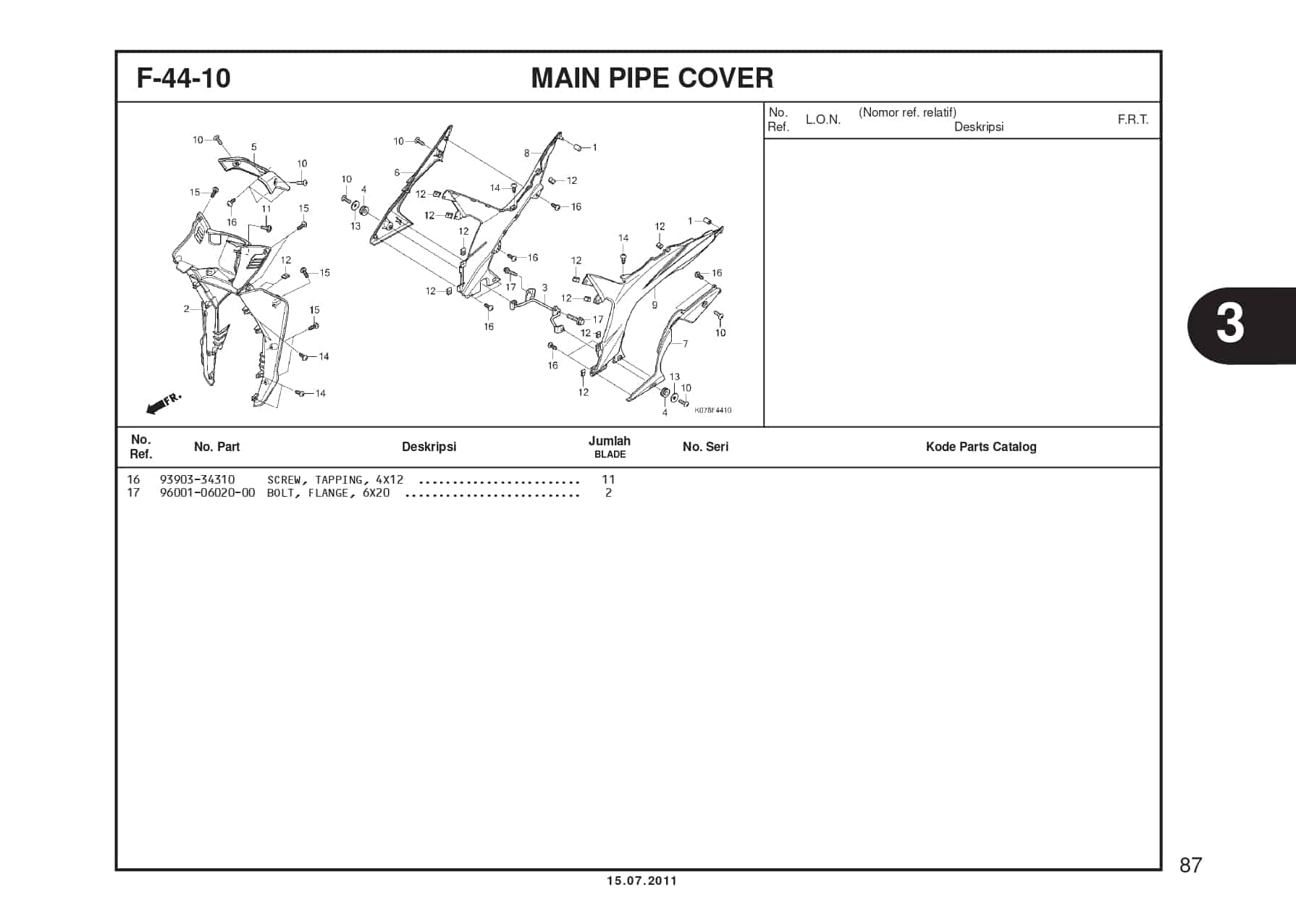

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | BOOT HEADLIGHT | 61312KBP900 |
|
| 3 | STAY LOWER COVER | 64311K07900 |
|
| 4 | GROMMET M/P COVER | 64312KWW640 |
|
| 5 | COVER A/C OUTLET(CN BZ OR) | 64320K07900ZB | - |
| 5 | COVER A/C OUTLET(ST SL MT) | 64320K07900ZC |
|
| 6 | COVER R M/P SD LWR | 64370K07900ZB |
|
| 7 | COVER L M/P SD LWR | 64380K07900ZB |
|
| 8 | COVER R M/P SD(ST SL MT) | 64325K07900ZB |
|
| 8 | COVER R M/P SD(PL FD WH) | 64325K07900ZC |
|
| 8 | COVER R M/P SD(CN SC RD) | 64325K07900ZF | - |
| 8 | Cover R MP Side (AF BK MT) | 64325K07900ZA |
|
| 9 | COVER L M/P SD(ST SL MT) | 64330K07900ZB |
|
| 9 | COVER L M/P SD(PL FD WH) | 64330K07900ZC |
|
| 9 | COVER L M/P SD(CN SC RD) | 64330K07900ZF |
|
| 9 | Cover L MP Side (AF BK MT) | 64330K07900ZA |
|
| 10 | SCREW 6X12 | 90107KGH600 |
|
| 11 | SCREW VISOR SPC. | 90115KW7900 |
|
| 12 | NUT SPRING 4MM | 90302KWWA00 |
|
| 13 | WASHER SEAT MT 6MM | 90501KST920 |
|
| 14 | SCREW TAPPING 4X12 | 9390324310 |
|
| 15 | SCREW, TAPPING, 4X16 | 9390324481 | - |
| 16 | SCREW, TAPPING, 4X12 | 9390334310 |
|
| 17 | BOLT, FLANGE, 6X20 | 960010602000 |
|
