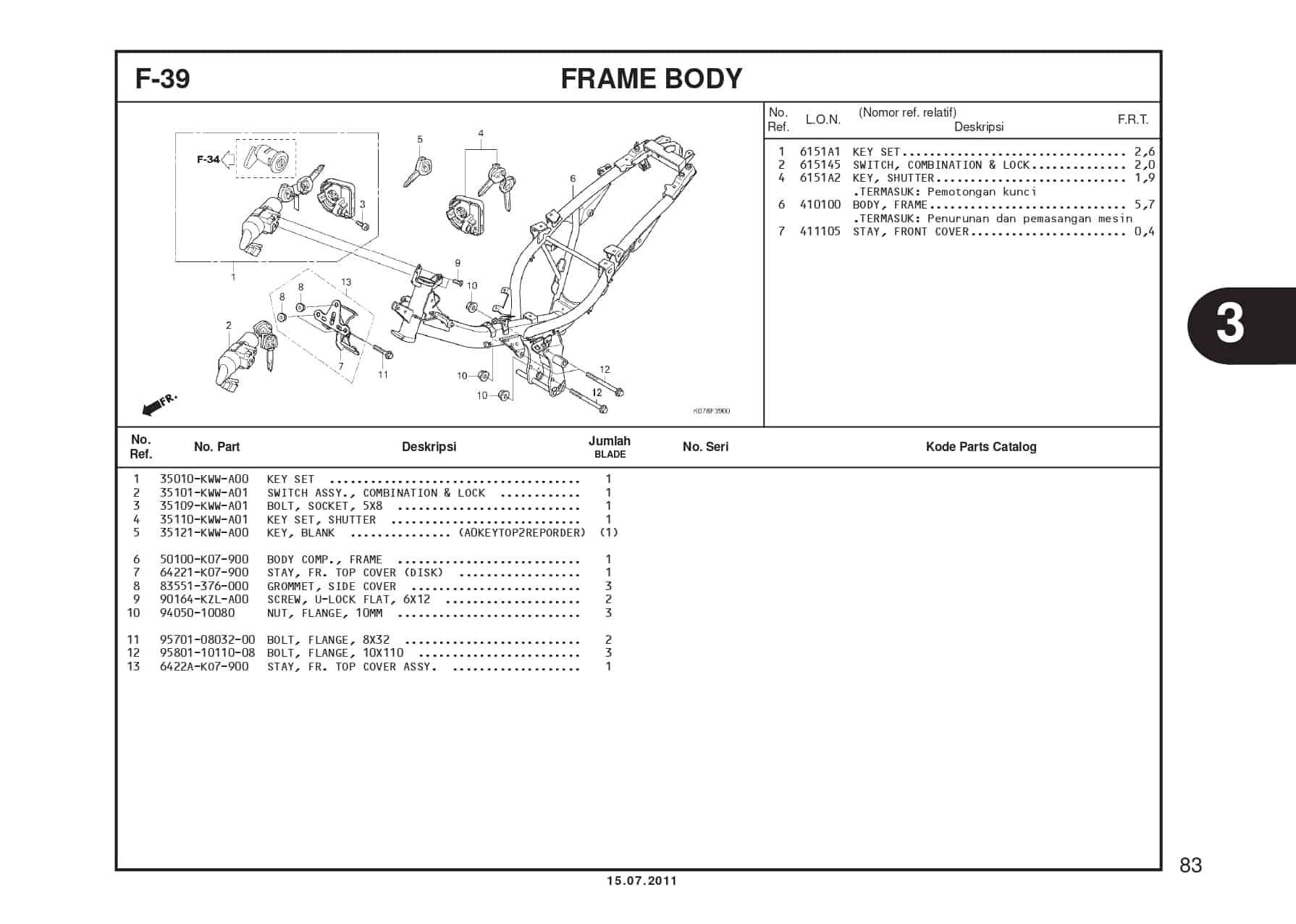

F-39 Frame Body – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	KEY SET Part Number : `35010KWWA00`
2	SWITCH ASSY COMB & LOCK Part Number : `35101KWWA01`
3	SOCKET BOLT (5X8) Part Number : `35109KWWA01`
4	KEY SET SHUTTER Part Number : `35110KWWA01`
5	KEY BLANK Part Number : `35121KWWA00`
6	FRAME BODY Part Number : `50100K07900`
7	STAY FR TOP COVER(DISK) Part Number : `64221K07900`
8	GROMMET,SIDE COVR Part Number : `83551376000`
9	SCREW U-LOCK FLAT 6X12 Part Number : `90164KZLA00`
10	NUT FLANGE 10MM Part Number : `9405010080`
11	BOLT FLANGE 8X32 Part Number : `957010803200`
12	BOLT FLANGE 10X110 Part Number : `958011011008`
13	STAY FR TOP COVER ASSY Part Number : `6422AK07900`
