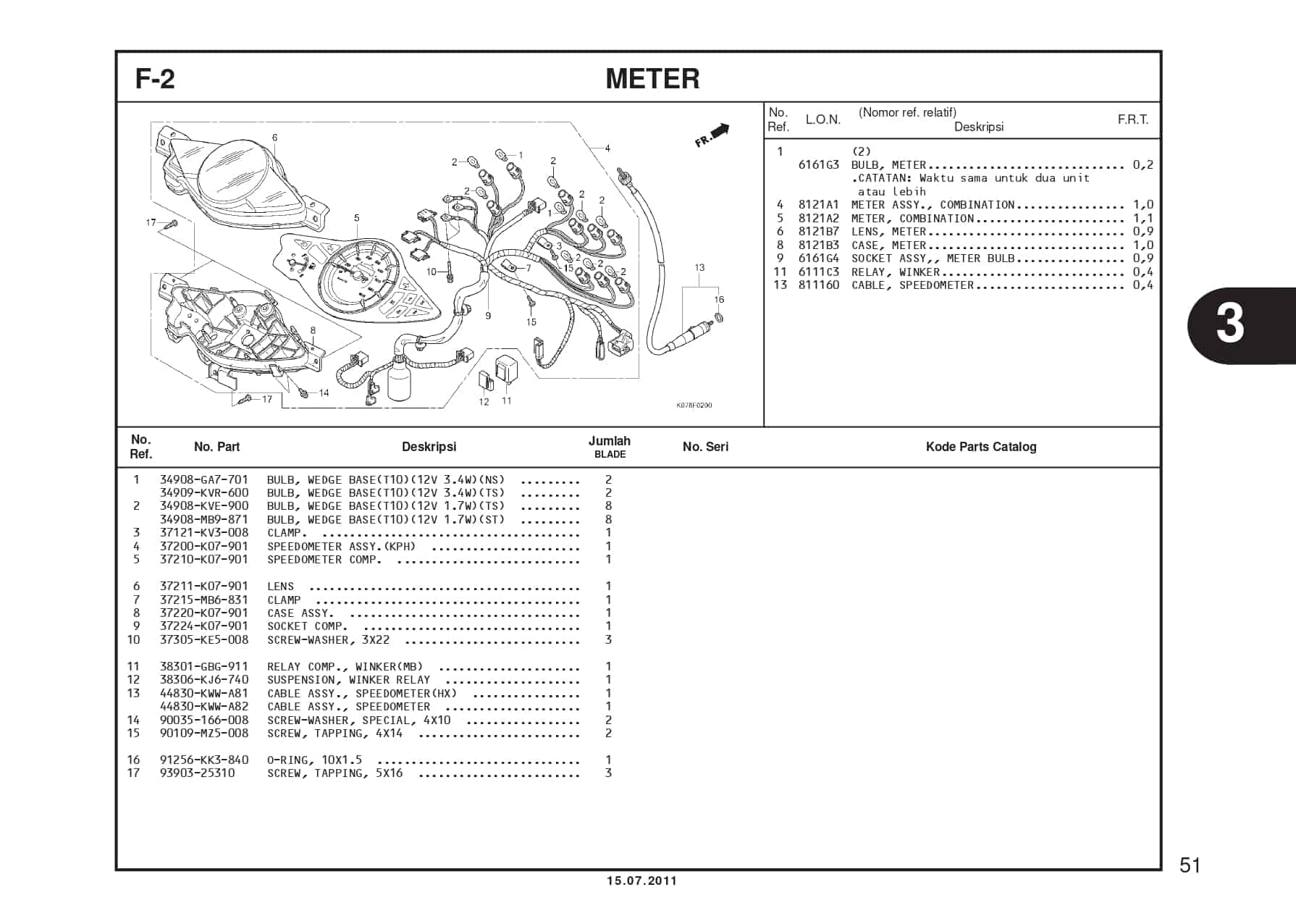

F-2 Meter – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	BULB W BASE Part Number : `34908GA7701`
1	BULB W BASE(T10 12V 3.4W) Part Number : `34909KVR600`
2	BULB W BASE (T10 12V1.7W) Part Number : `34908KVE900`
2	BULB W BASE Part Number : `34908MB9871`
3	CLAMP Part Number : `37121KV3008`
4	SPEEDOMETER ASSY Part Number : `37200K07901`
5	SPEEDOMETER COMP Part Number : `37210K07901`
6	LENS Part Number : `37211K07901`
7	CLAMP Part Number : `37215MB6831`
8	CASE ASSY Part Number : `37220K07901`
9	SOCKET COMP Part Number : `37224K07901`
10	SCREW WASHER (3X22) Part Number : `37305KE5008`
11	RELAY COMP WINKER Part Number : `38301GBG911`
12	SUSPENSION,RELAY Part Number : `38306KJ6740`
13	CABLE COMP., SPDMT Part Number : `44830KWWA82`
14	SCREW WASHER (4X10) Part Number : `90035166008`
15	SCRW.TAPP 4X14 Part Number : `90109MZ5008`
16	O-RING, 10X1.5 Part Number : `91256KK3840`
17	SCREW TAPPING 5X16 Part Number : `9390325310`
17	SCREW TAPPING 5X16 Part Number : `9390325380`
