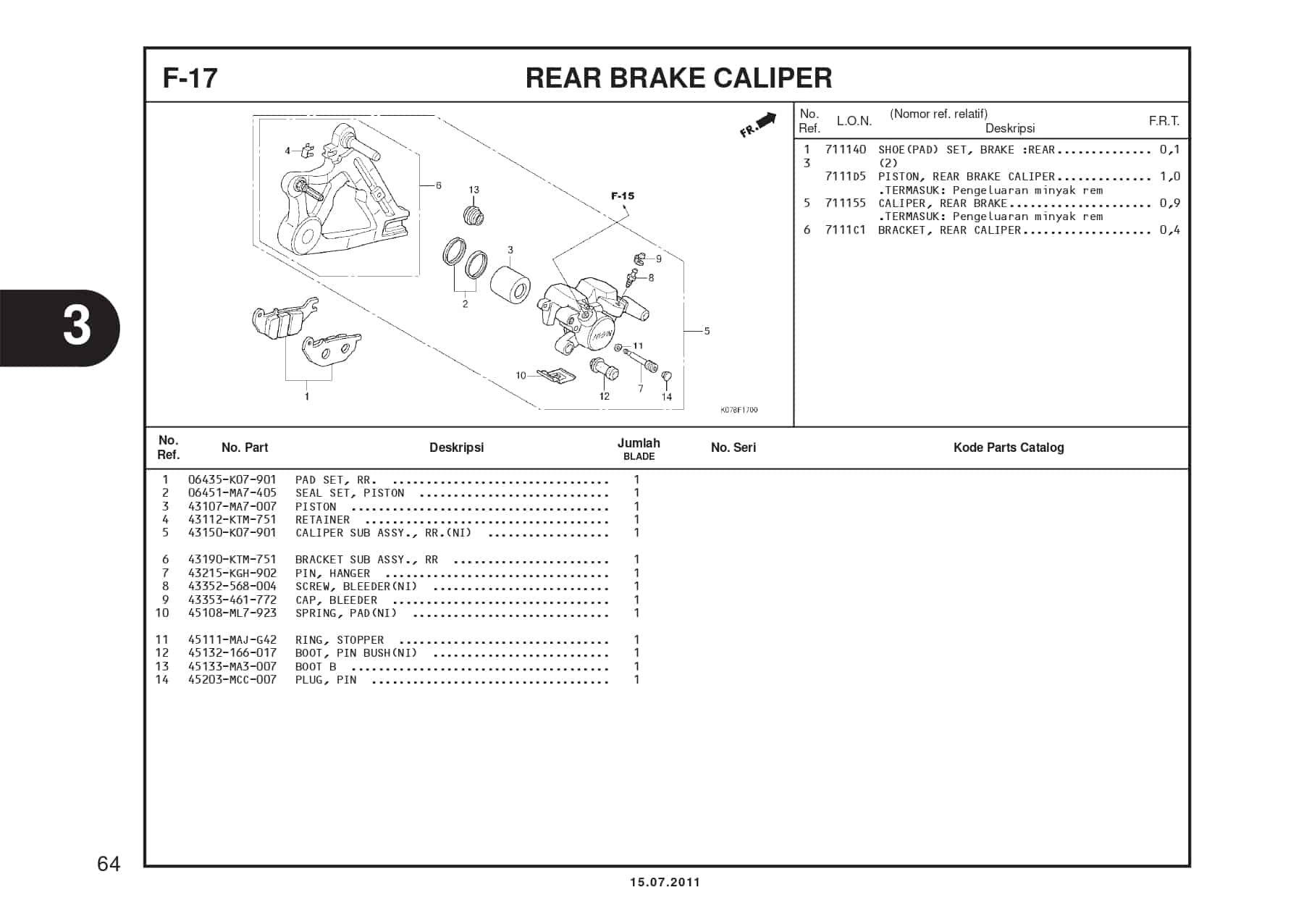

F-17 Rear Brake Caliper – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	PAD SET RR Part Number : `06435K07901`
1	PAD SET RR Part Number : `06435KPP902`
1	PAD SET RR Part Number : `06435KPP901`
1	PAD SET RR Part Number : `06435KWC901`
2	SEAL SET PISTON Part Number : `06451MA7405`
3	PISTON Part Number : `43107MA7007`
4	RETAINER Part Number : `43112KTM751`
5	CALIPER SUB ASSY RR(NI) Part Number : `43150K07901`
6	BRACKET SUB ASSY RR Part Number : `43190KTM751`
7	PIN HANGER Part Number : `43215KGH902`
8	SCREW BLEEDER Part Number : `43352568004`
9	CAP BLEEDER Part Number : `43353461772`
10	SPRING PAD Part Number : `45108ML7923`
11	STOPPER RING Part Number : `45111MAJG42`
12	BOOT, PIN BUSH(NI) Part Number : `45132166017`
12	PIN BUSH Part Number : `45132166016`
13	BOOT B Part Number : `45133MA3007`
14	PLUG PIN Part Number : `45203MCC007`
