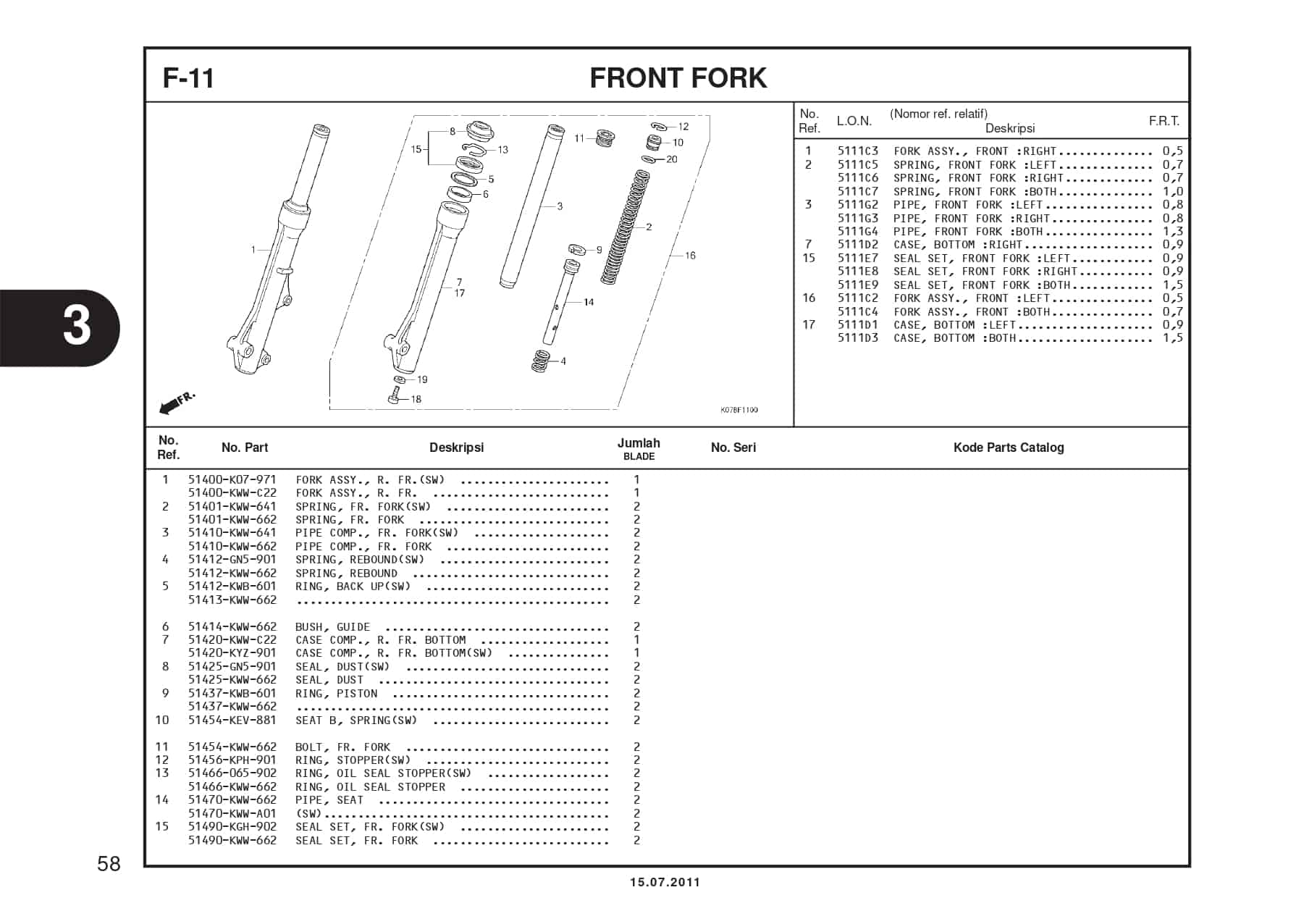

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY R FR | 51400K07971 |
|
| 2 | SPRING FR FORK | 51401KWW641 |
|
| 2 | SPRING, FR FORK | 51401KWW662 | - |
| 3 | PIPE COMP FR FORK | 51410KWW641 |
|
| 3 | PIPE COMP., FR. FORK | 51410KWW662 | - |
| 4 | SPG REBOUND | 51412GN5901 |
|
| 4 | SPRING, REBOUND | 51412KWW662 |
|
| 5 | RING BACK UP | 51412KWB601 |
|
| 5 | RING, BACK UP | 51413KWW662 |
|
| 6 | BUSH, GUIDE | 51414KWW662 |
|
| 7 | CASE COMP., R. FR. BOTTOM | 51420KYZ901 |
|
| 7 | CASE COMP R FR BOTTOM | 51420KYZ901 |
|
| 8 | DUST SEAL FR FORK | 51425GN5901 |
|
| 8 | SEAL, DUST | 51425KWW662 |
|
| 9 | RING PISTON | 51437KWB601 |
|
| 9 | RING, PISTON | 51437KWW662 |
|
| 10 | SEAT B SPRING | 51454KEV881 |
|
| 11 | BOLT, FR. FORK | 51454KWW662 |
|
| 12 | RIMG,STOPPER | 51456KPH901 |
|
| 13 | RING OIL SEAL | 51466065902 |
|
| 13 | RING, OIL SEAL STOPPER | 51466KWW662 |
|
| 14 | PIPE, SEAT | 51470KWW662 | - |
| 14 | PIPE,SEAT | 51470KWWA01 |
|
| 15 | SEAL SET FR FORK | 51490KGH902 |
|
| 15 | SEAL SET, FR. FORK | 51490KWW662 |
|
| 16 | FORK ASSY L FR | 51500K07971 |
|
| 17 | CASE COMP L FR BOTTOM | 51520KYZ901 |
|
| 18 | CASE COMP., L. FR. BOTTOM(SW) | 90116KV3702 | - |
| 18 | BOLT SOCKET 8MM | 90116KWW662 | - |
| 19 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 19 | WASHER, SPECIAL, 8MM | 90544KRFH71 |
|
| 20 | O RING | 91356GM0003 |
|
| 20 | O-RING, 15.8X2.85 | 91356KWW662 |
|
