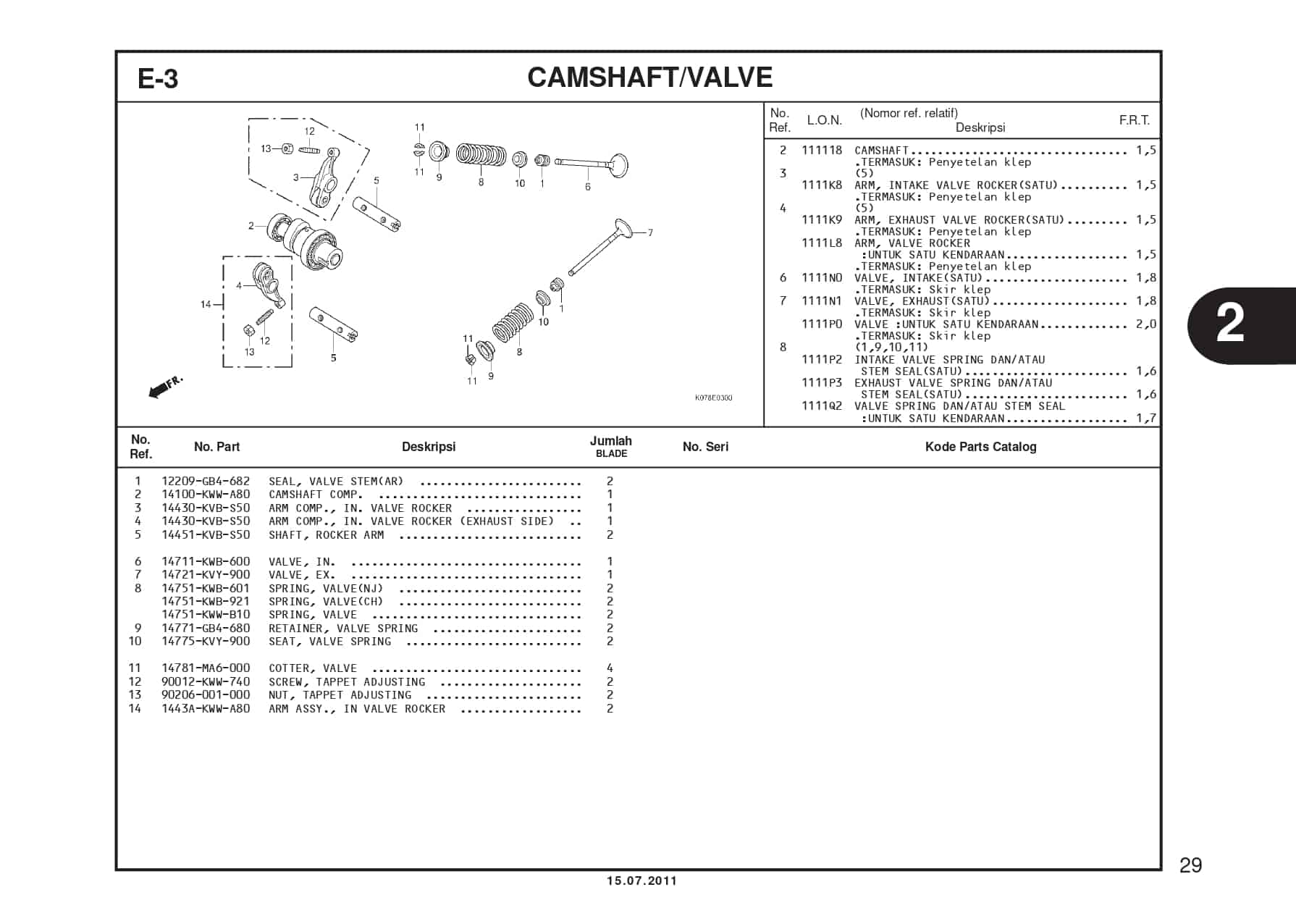

E-3 CamshaftValve – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	SEAL VLV. STEM Part Number : `12209GB4682`
2	CAMSHAFT COMP. Part Number : `14100KWWA80`
3	ARM ASSY IN VALVE ROCKER Part Number : `14430KVBS50`
4	ARM ASSY IN VALVE ROCKER Part Number : `14430KVBS50`
5	SHAFT ROCKER ARM Part Number : `14451KVBS50`
6	VALVE,INLET Part Number : `14711KWB600`
7	VALVE,EXHAUST Part Number : `14721KVY900`
8	SPRING VALVE Part Number : `14751KWB921`
9	RETAINER Part Number : `14771GB4680`
10	SEAT, VALVE SPRING Part Number : `14775KVY900`
11	COTTER,VALVE Part Number : `14781MA6000`
12	SCREW TAPPET ADJUSTING Part Number : `90012KWW740`
13	NUT,TAPPET ADJUST Part Number : `90206001000`
14	ARM ASSY IN VALVE ROCKER Part Number : `1443AKWWA80`
